Manifold Pressure/Vacuum Sensor: Diagrams

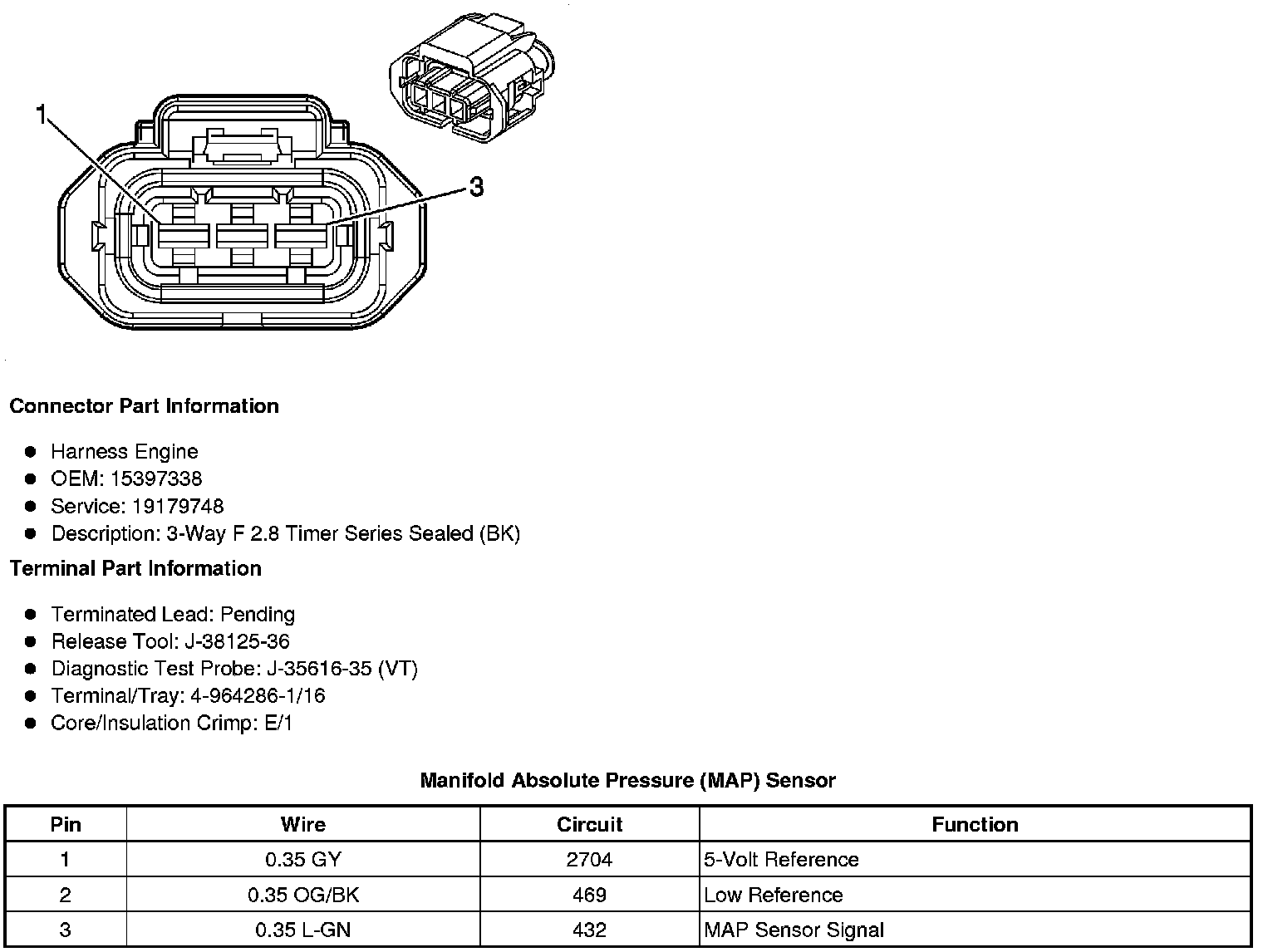

Component Connector End Views

Manifold Absolute Pressure (MAP) Sensor
