Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

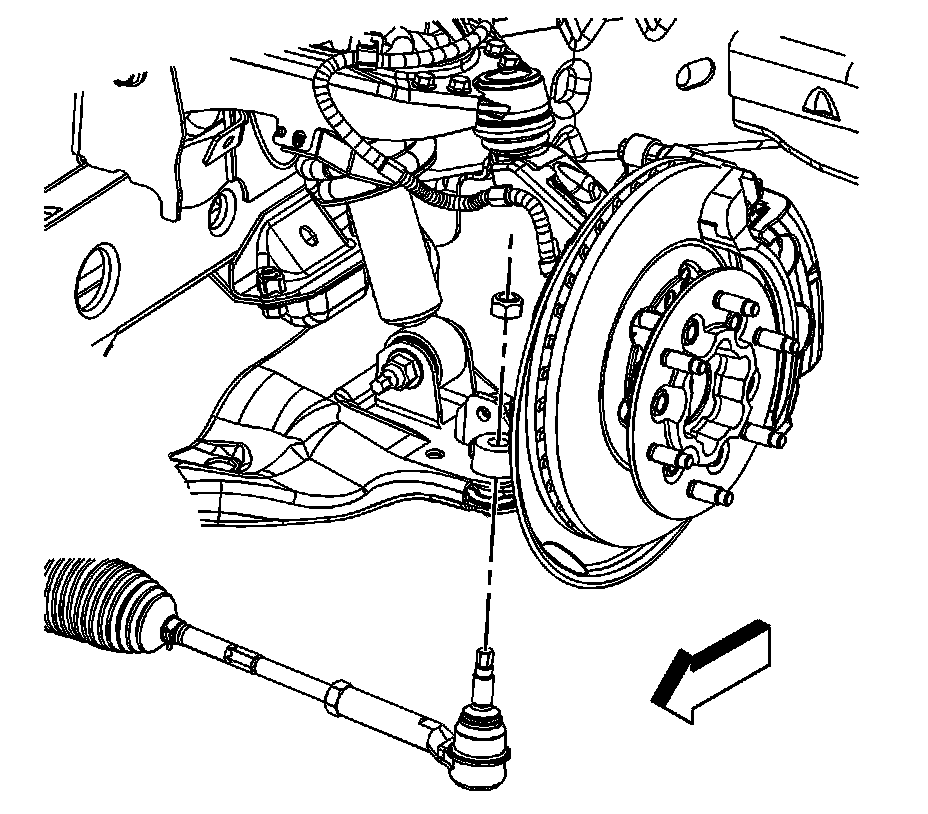

1. Loosen the jam nut on the tie rod.
2. Rotate the inner tie rod to the required toe specification setting. Refer to Wheel Alignment Specifications Wheel Alignment Specifications.

Caution: Refer to Fastener Caution Fastener Caution.

3. Tighten the jam nut on the tie rod to 70 Nm (52 lb ft).
4. Check the toe setting after tightening.
5. Re-adjust the toe setting if necessary.
