Windows




Moveable Window Schematics

Left Window (Except Crew Cab)





Right Window (Except Crew Cab)

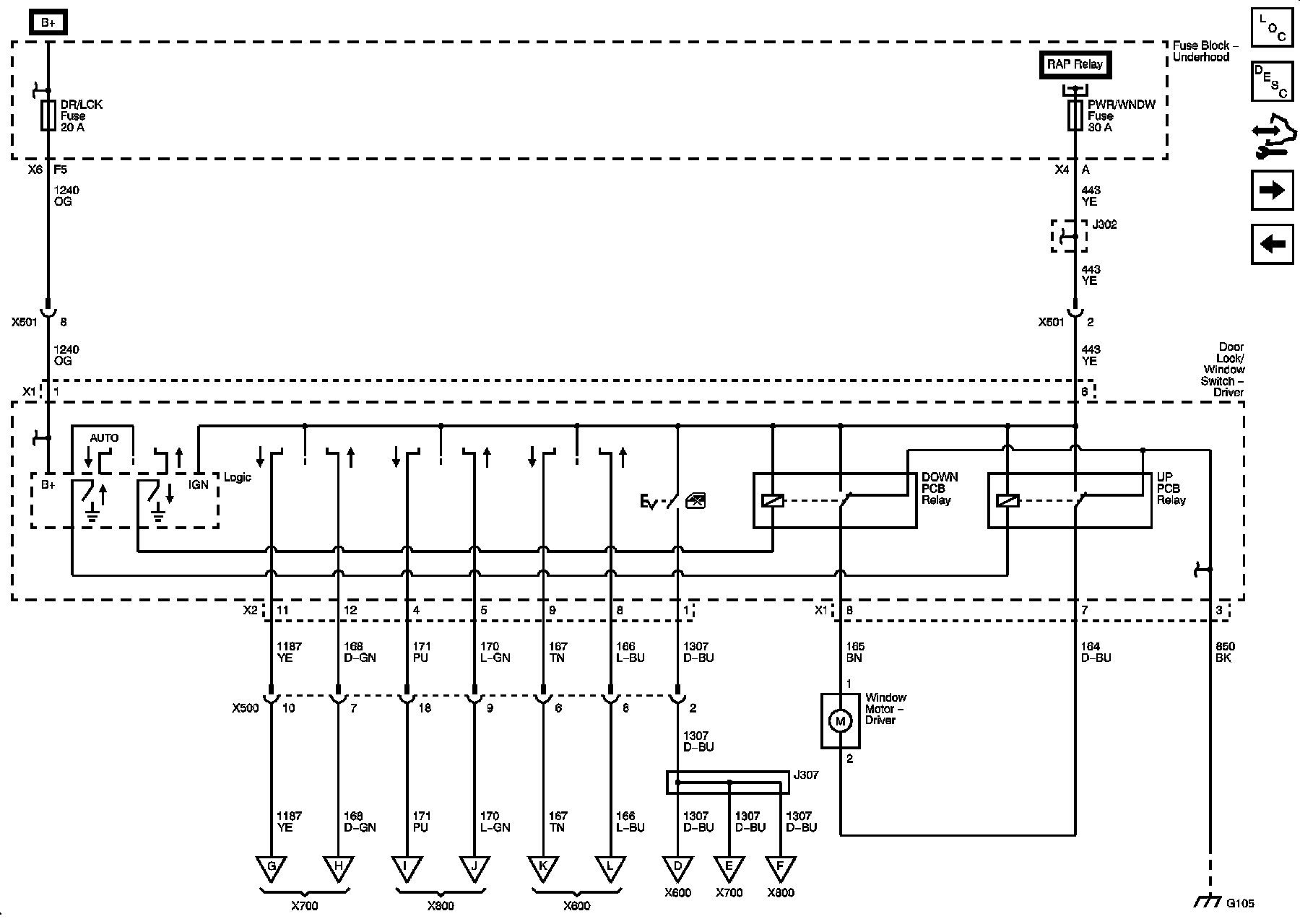

Left Front Window (Crew Cab)





Right Front Window (Crew Cab)

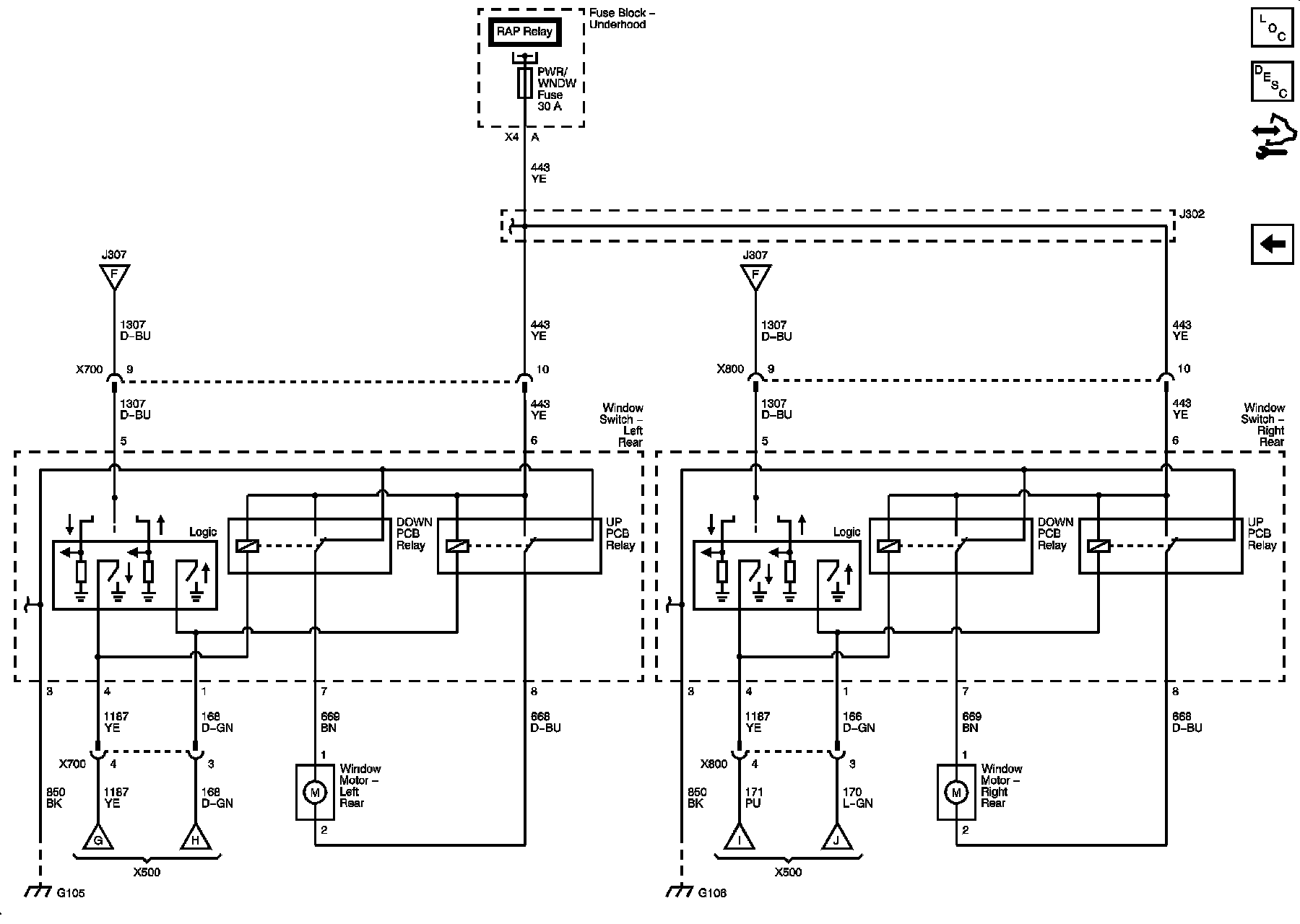

Rear Doors (Crew Cab)
