Home >> Chevrolet >> 2012 >> Colorado 2WD L4-2.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Television / Monitor

Television / Monitor

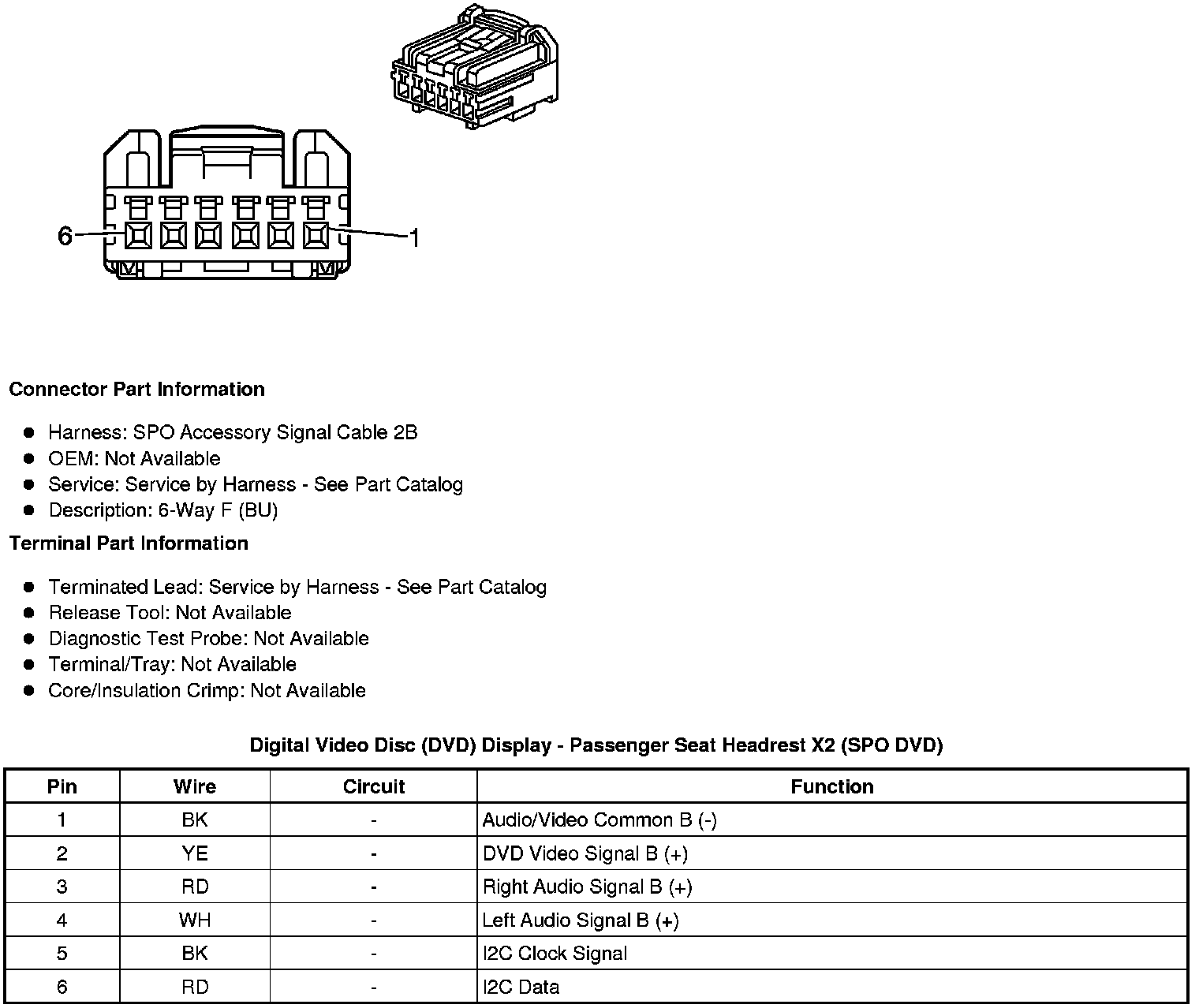

Component Connector End Views

Digital Video Disc (DVD) Display - Passenger Seat Headrest X2 (SPO DVD)
