Front of the Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

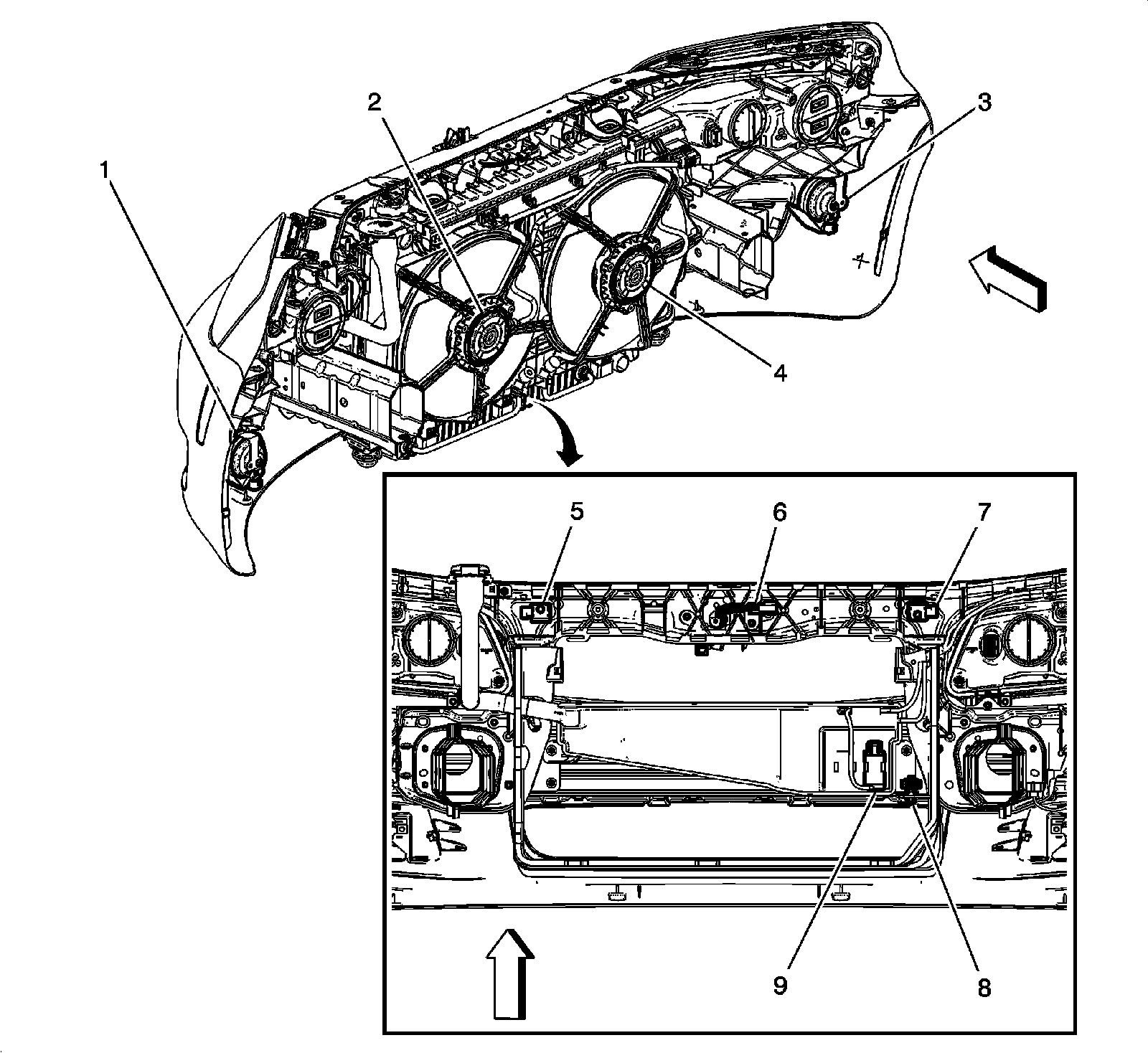

Front of the Engine Compartment Components





1 - P12L Horn - Left

2 - G10L Cooling Fan Motor - Left

3 - P12R Horn - Right

4 - G10R Cooling Fan Motor - Right

5 - B59L Front Impact Sensor - Left

6 - B55 Hood Ajar Switch

7 - B59R Front Impact Sensor - Right

8 - B9 Ambient Air Temperature Sensor

9 - G24 Windshield Washer Pump
