Headlamp Alignment Control Module: Diagrams

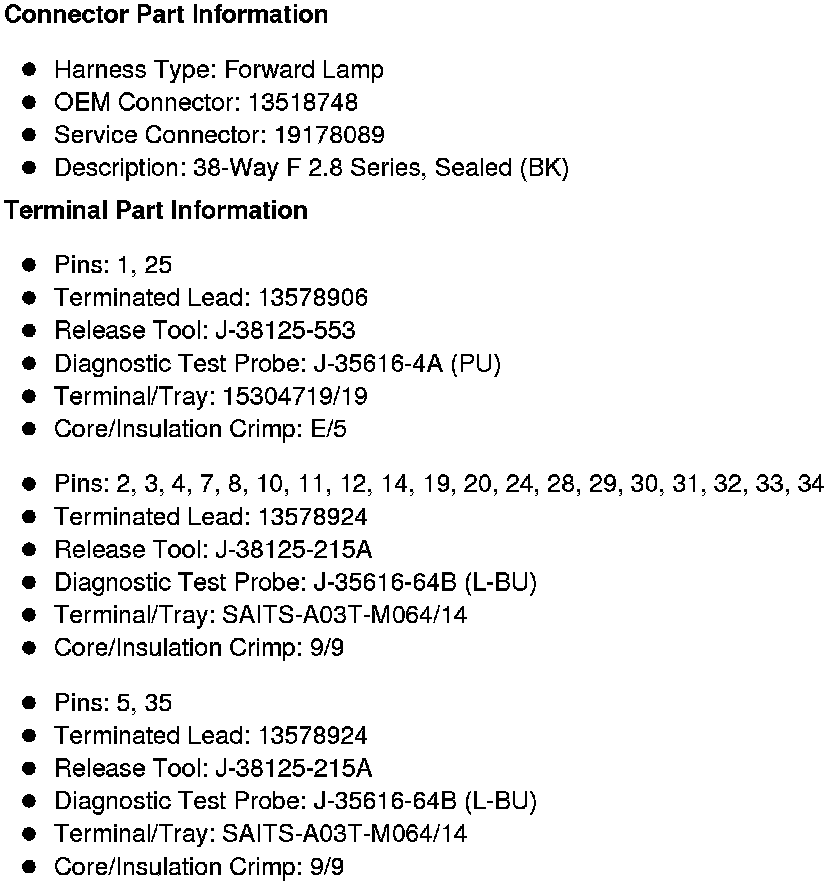

Component Connector End Views

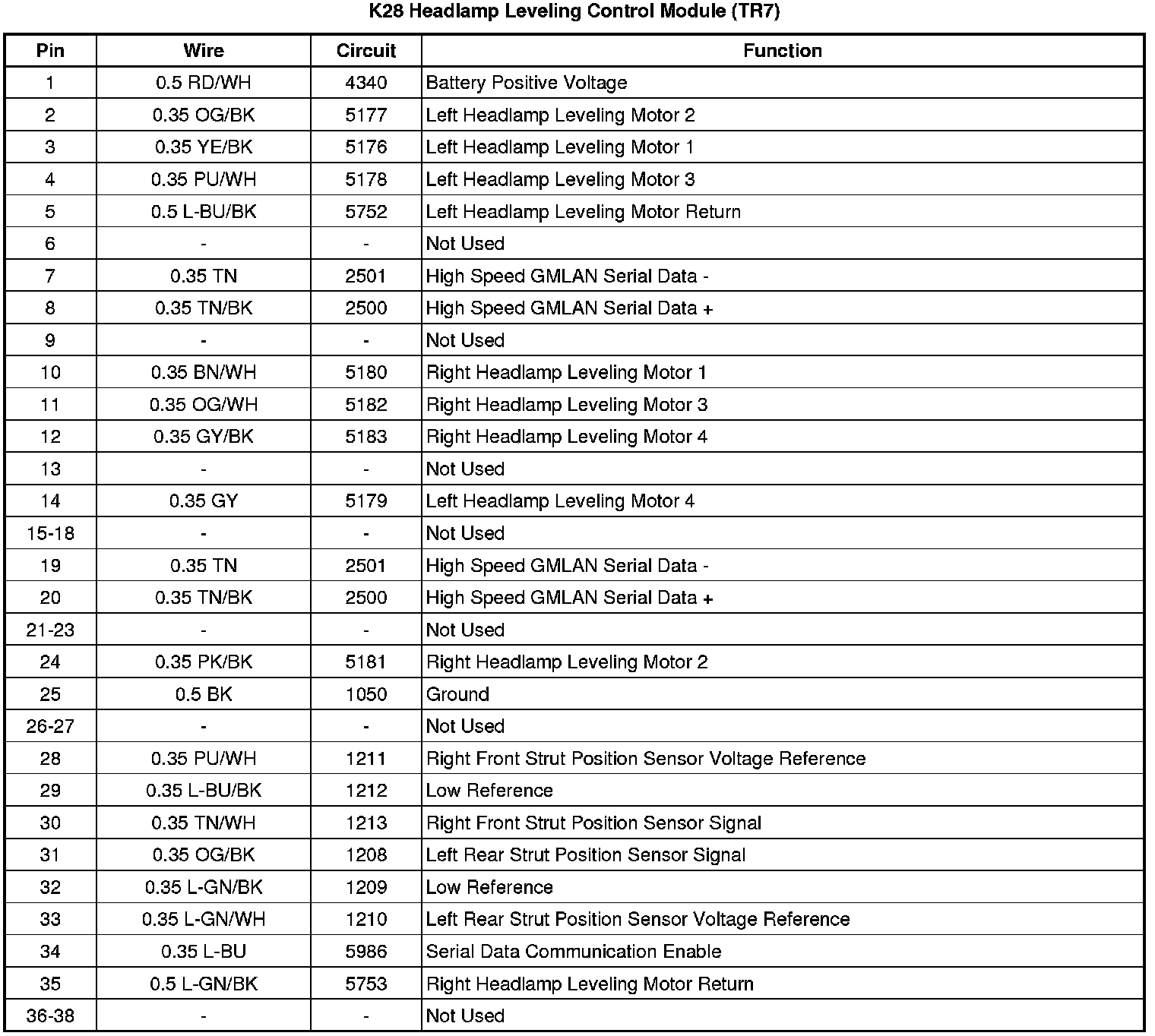

K28 Headlamp Leveling Control Module (TR7)
