Transmission Mode Switch: Locations

Powertrain Component Views

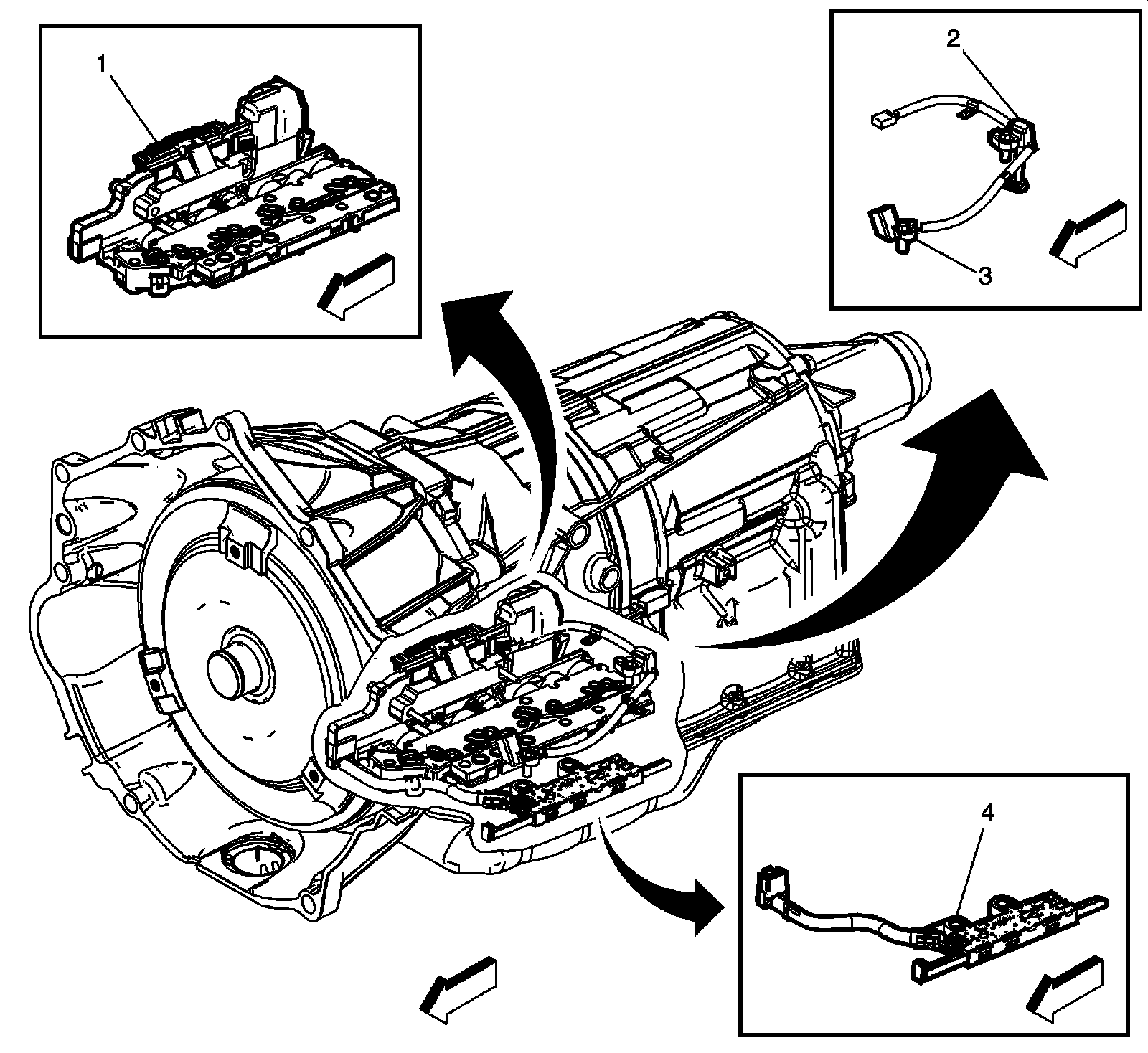

Transmission Electronic Components (MYB or MYC)





1 - Q8 Control Solenoid Valve Assembly

2 - B14A Transmission Output Shaft Speed Sensor

3 - B14C Transmission Input Shaft Speed Sensor

4 - B15 Transmission Internal Mode Switch
