Valve Deactivation Solenoid: Diagrams

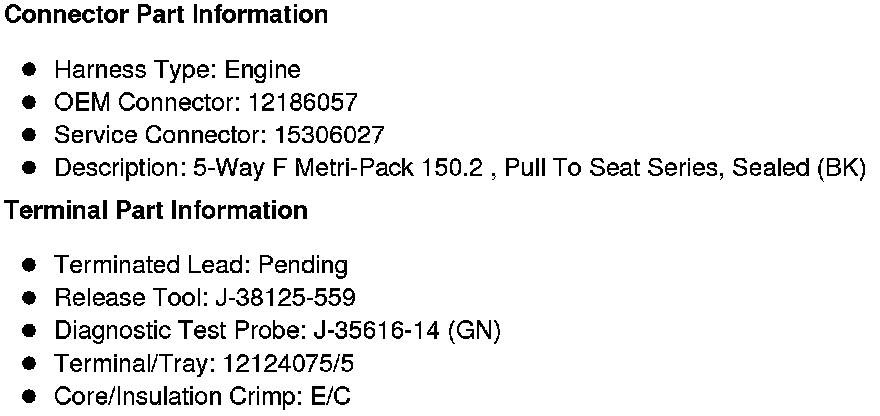

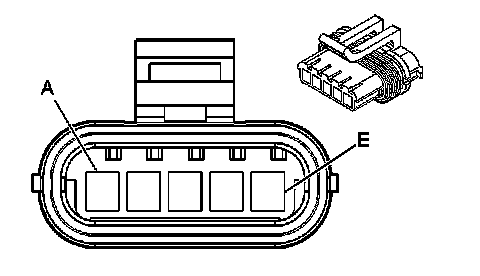

Component Connector End Views

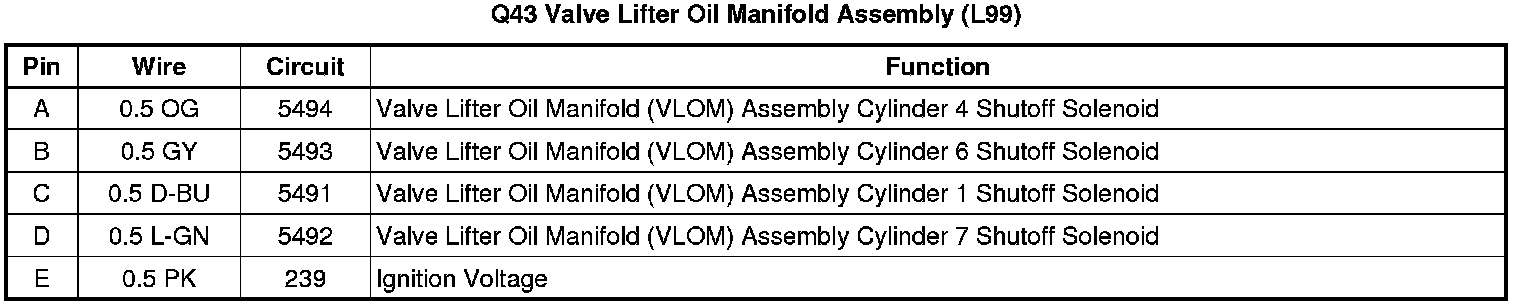

Q43 Valve Lifter Oil Manifold Assembly (L99)
