Heated Seat Control Module - Rear X2 (KA6)
Heated Seat Control Module - Rear X2 (KA6)
Component Connector End Views

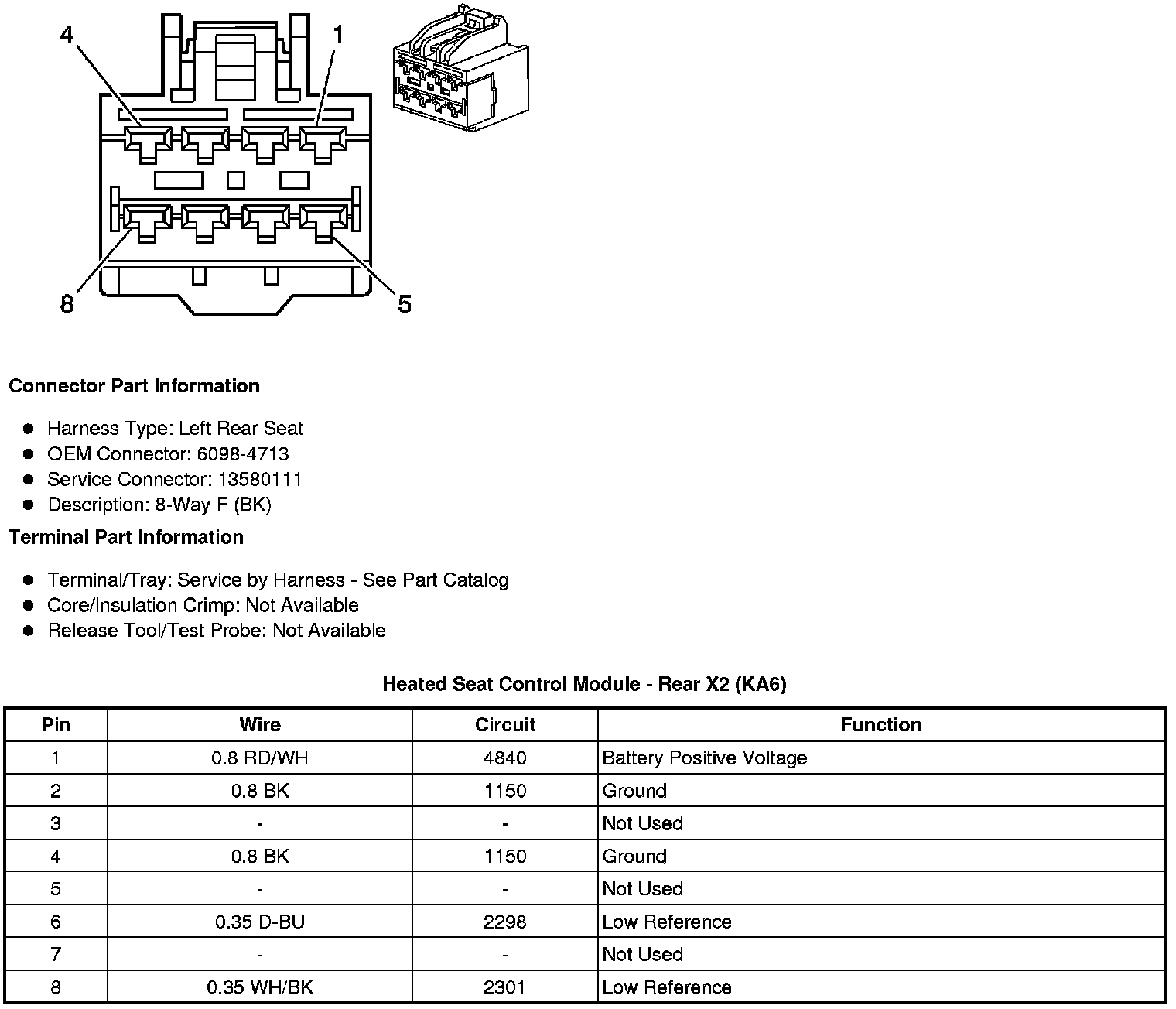

Heated Seat Control Module - Rear X2 (KA6)
