Home >> Chevrolet >> 2011 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Parking Brake Control Module K83

Parking Brake Control Module K83




Component Connector End Views

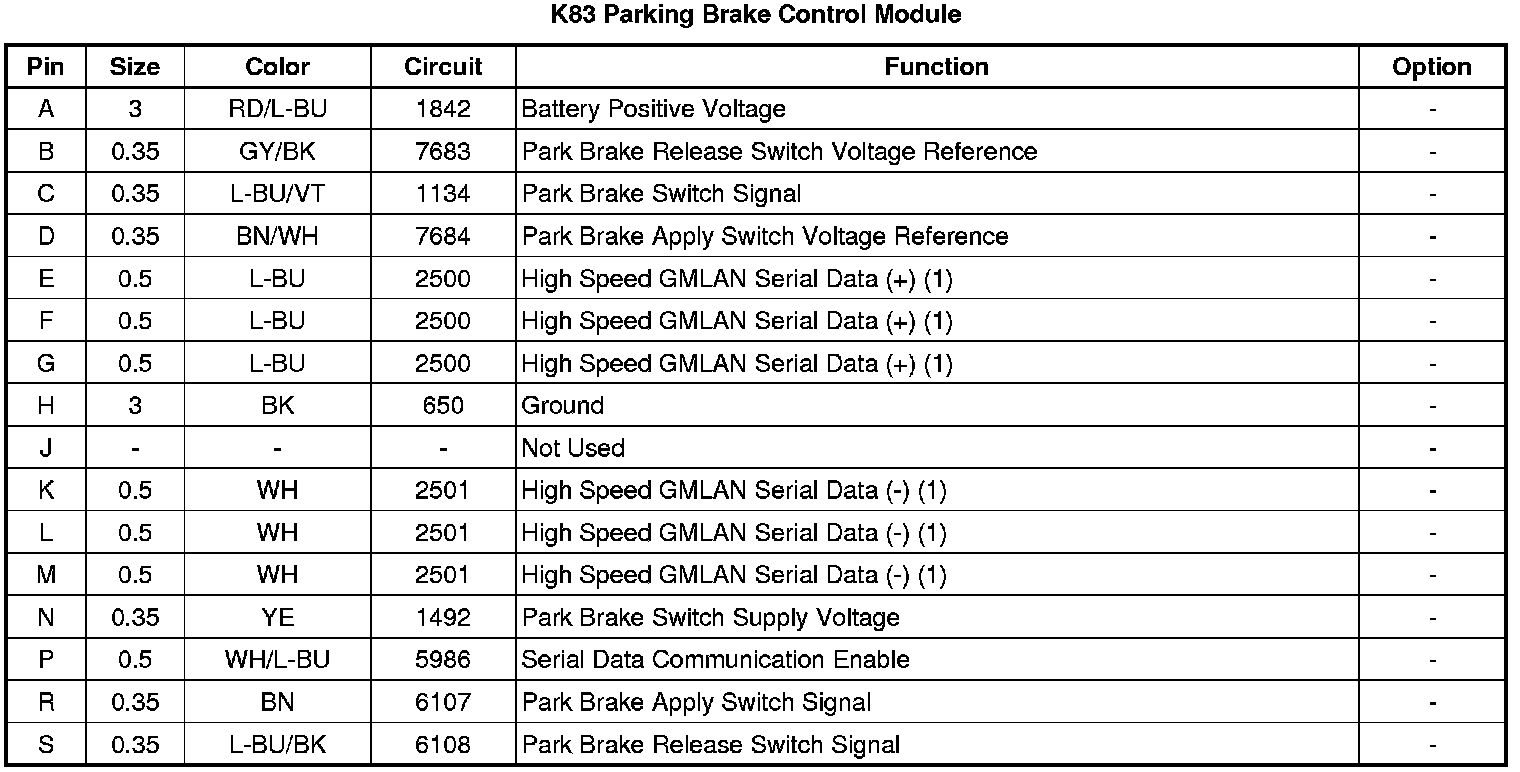

K83 Parking Brake Control Module
