Electrical Diagrams




Data Communication Schematics

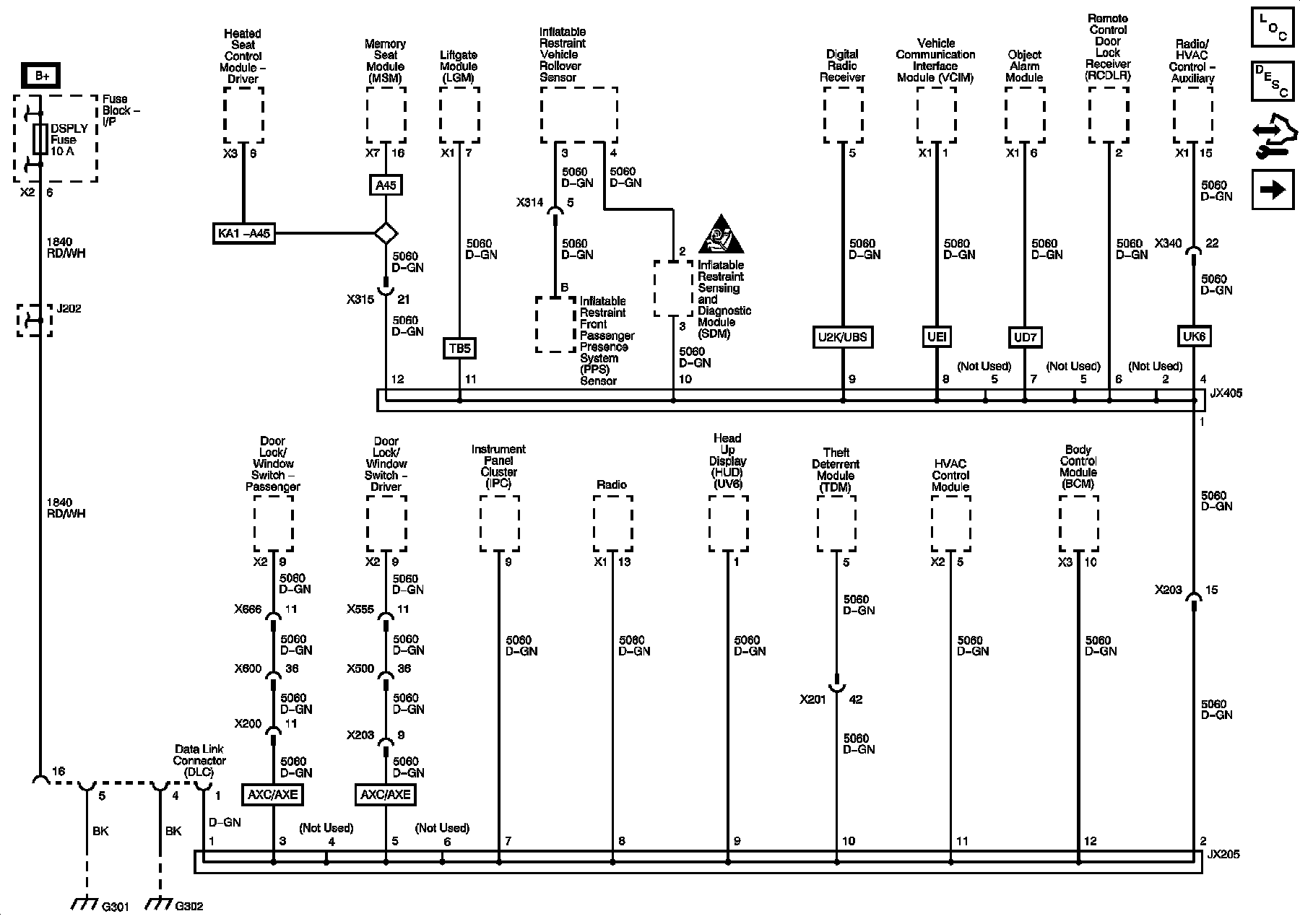

Low Speed GMLAN

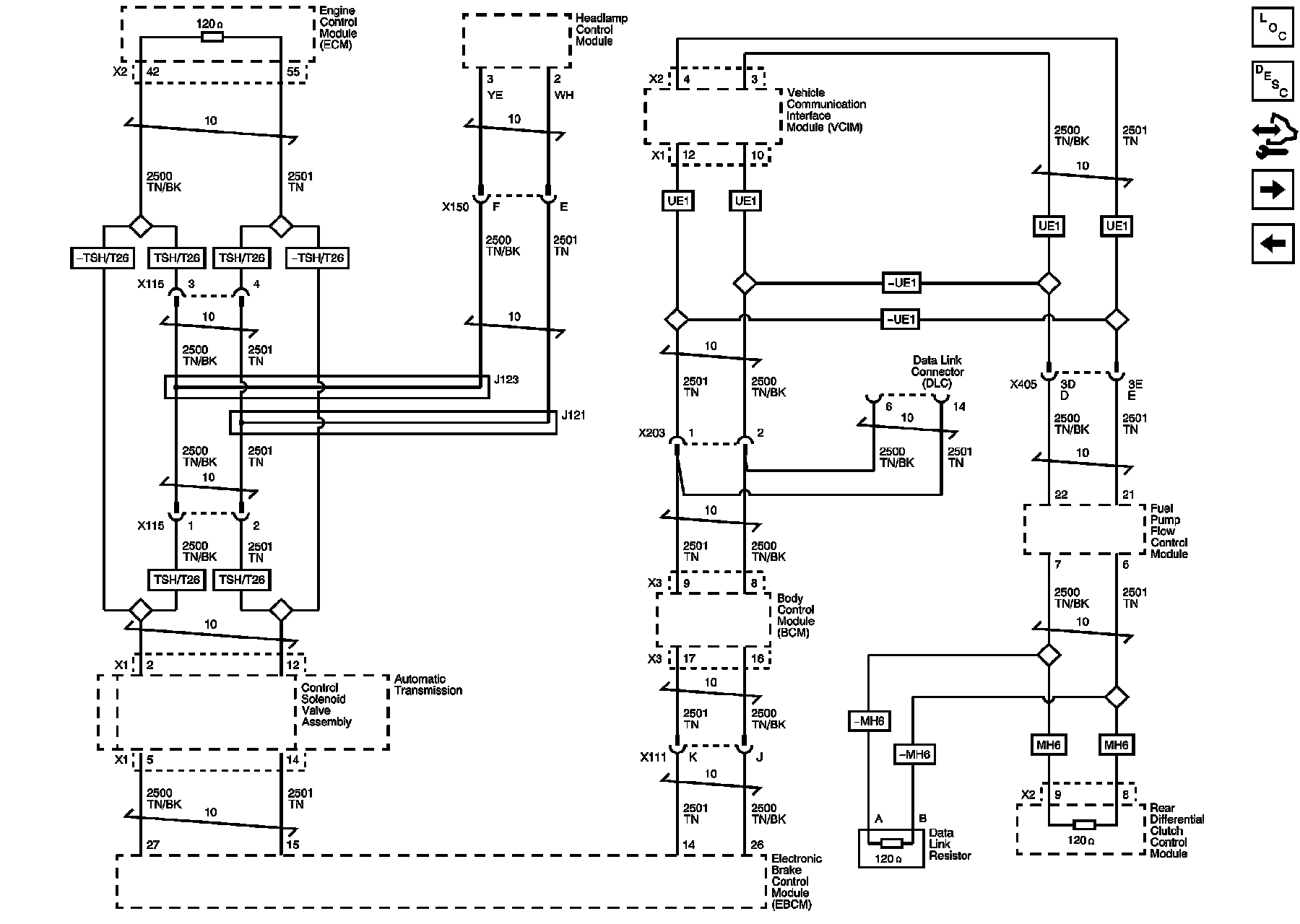

High Speed GMLAN

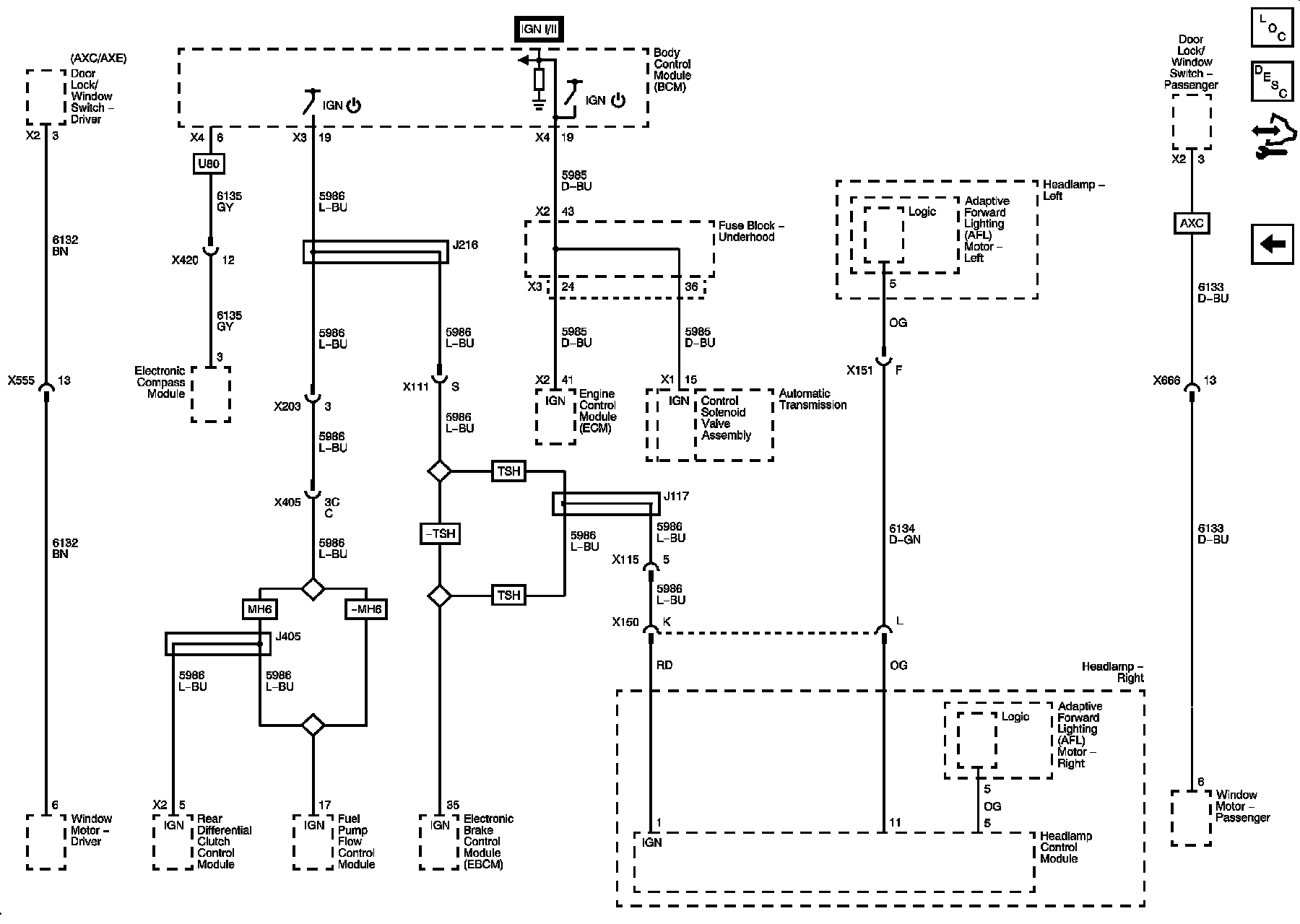

Communication Enable and Linear Interconnect Network (LIN)
