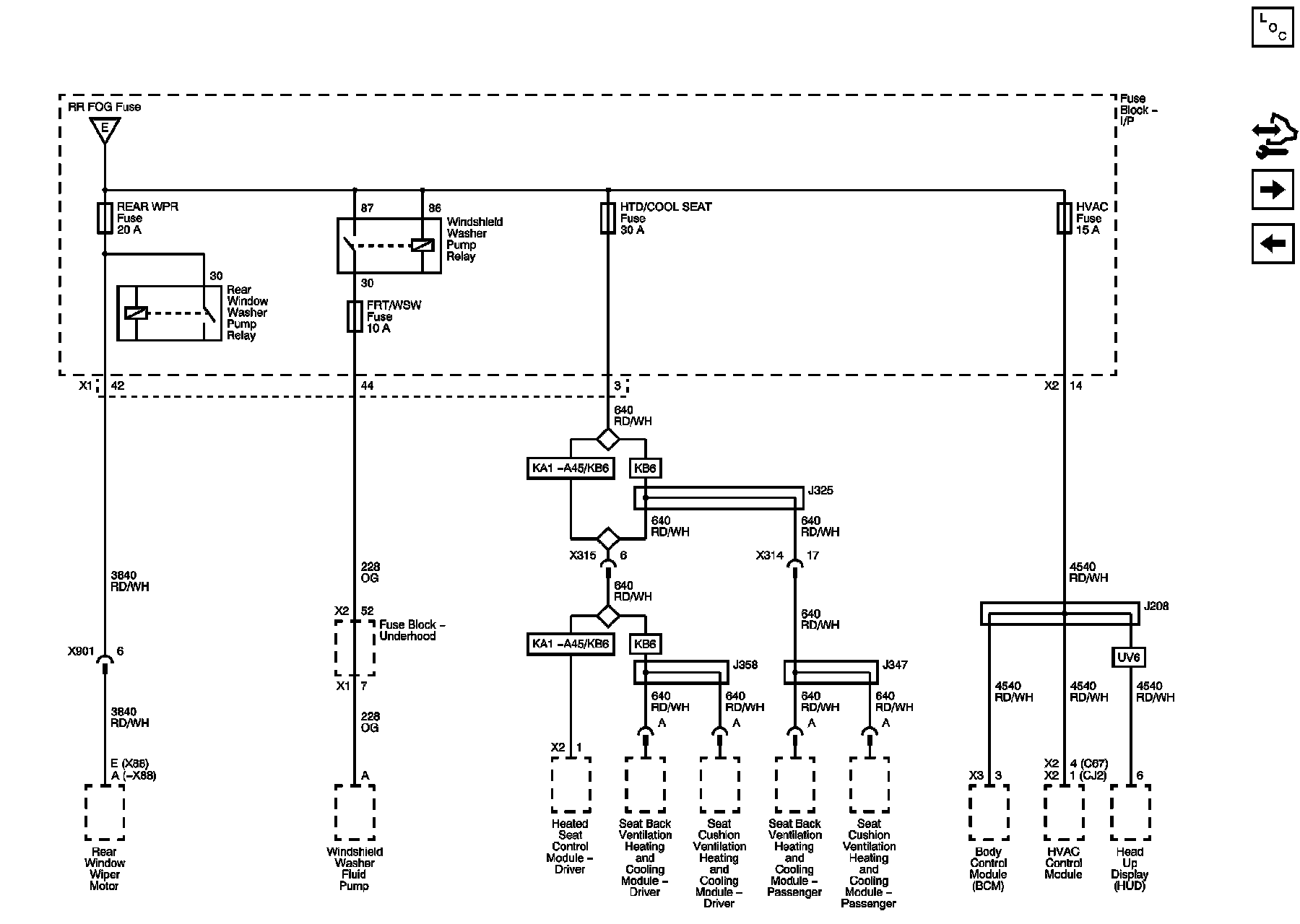

Home >> Chevrolet >> 2011 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Schematics >> Power Distribution Schematic 7
