Trunk / Liftgate Switch
Component Connector End Views

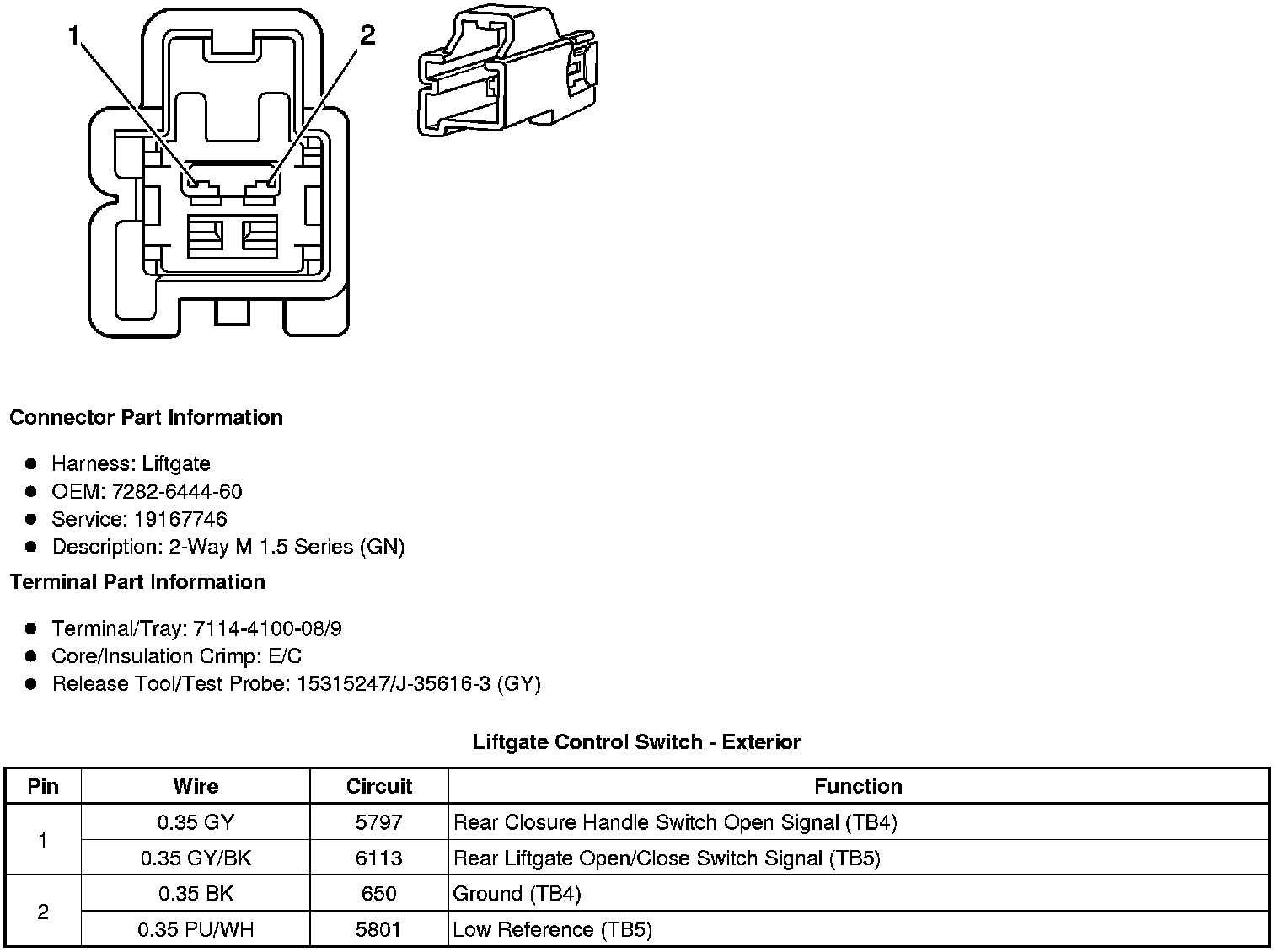

Liftgate Control Switch - Exterior

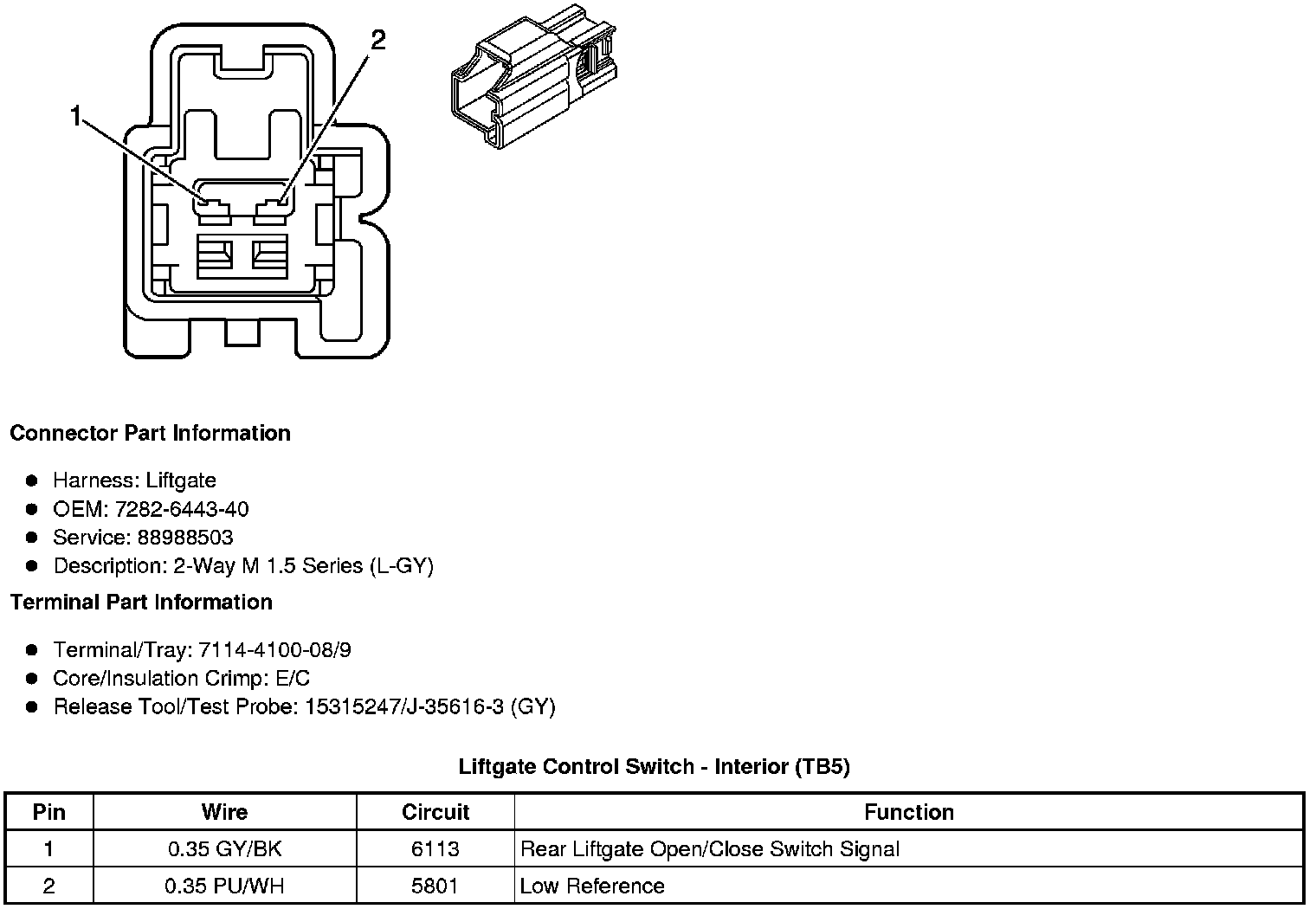

Liftgate Control Switch - Interior (TB5)
