Trunk / Liftgate Latch
Trunk / Liftgate Latch
Component Connector End Views

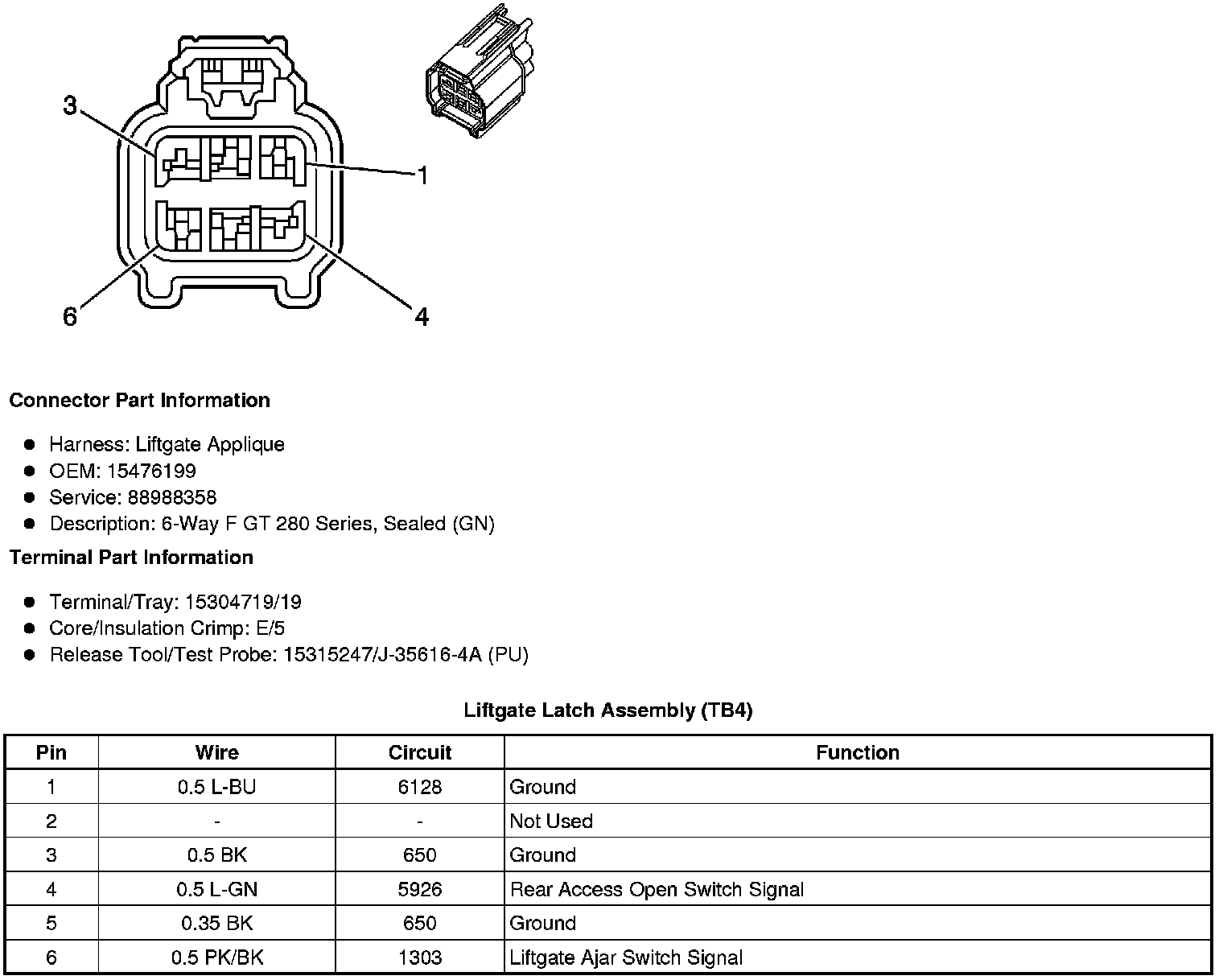

Liftgate Latch Assembly (TB4)

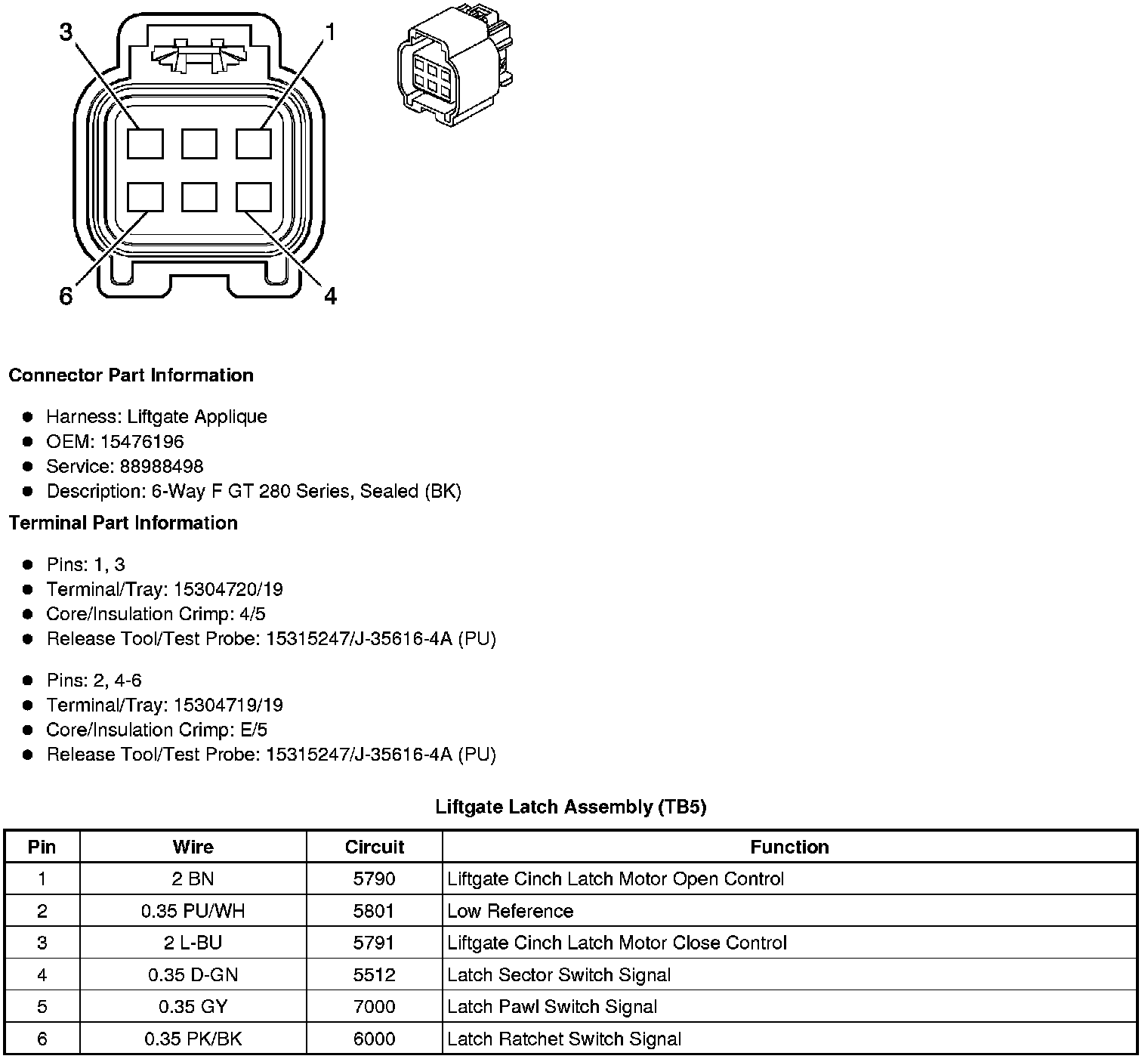

Liftgate Latch Assembly (TB5)
