Seat Belt Buckle
Seat Belt Buckle
Component Connector End Views

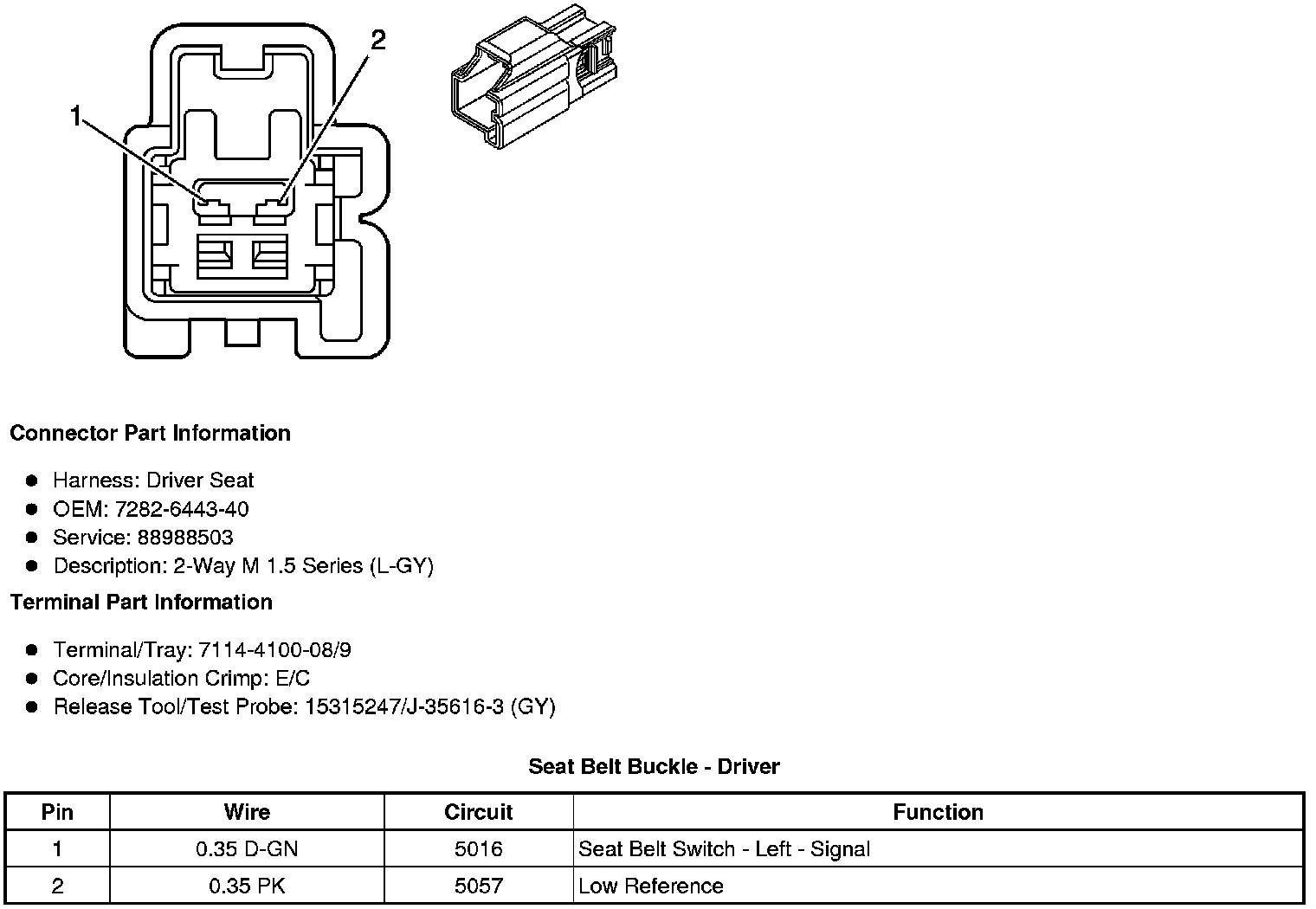

Seat Belt Buckle
- Driver

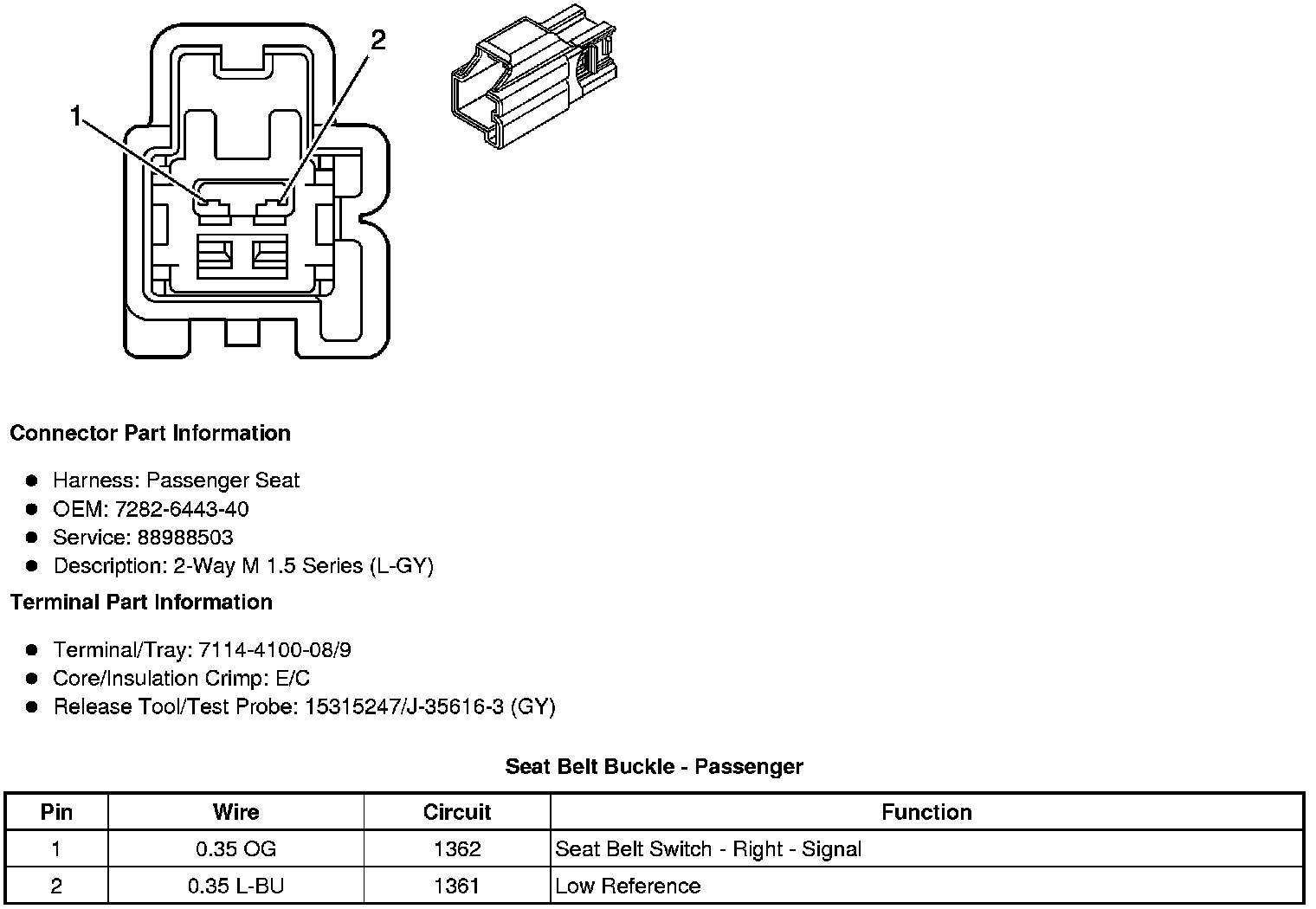

Seat Belt Buckle
- Passenger
