Power Trunk / Liftgate Hazard Sensor
Power Trunk / Liftgate Hazard Sensor
Component Connector End Views
Liftgate Object Sensor - Left (TB5)

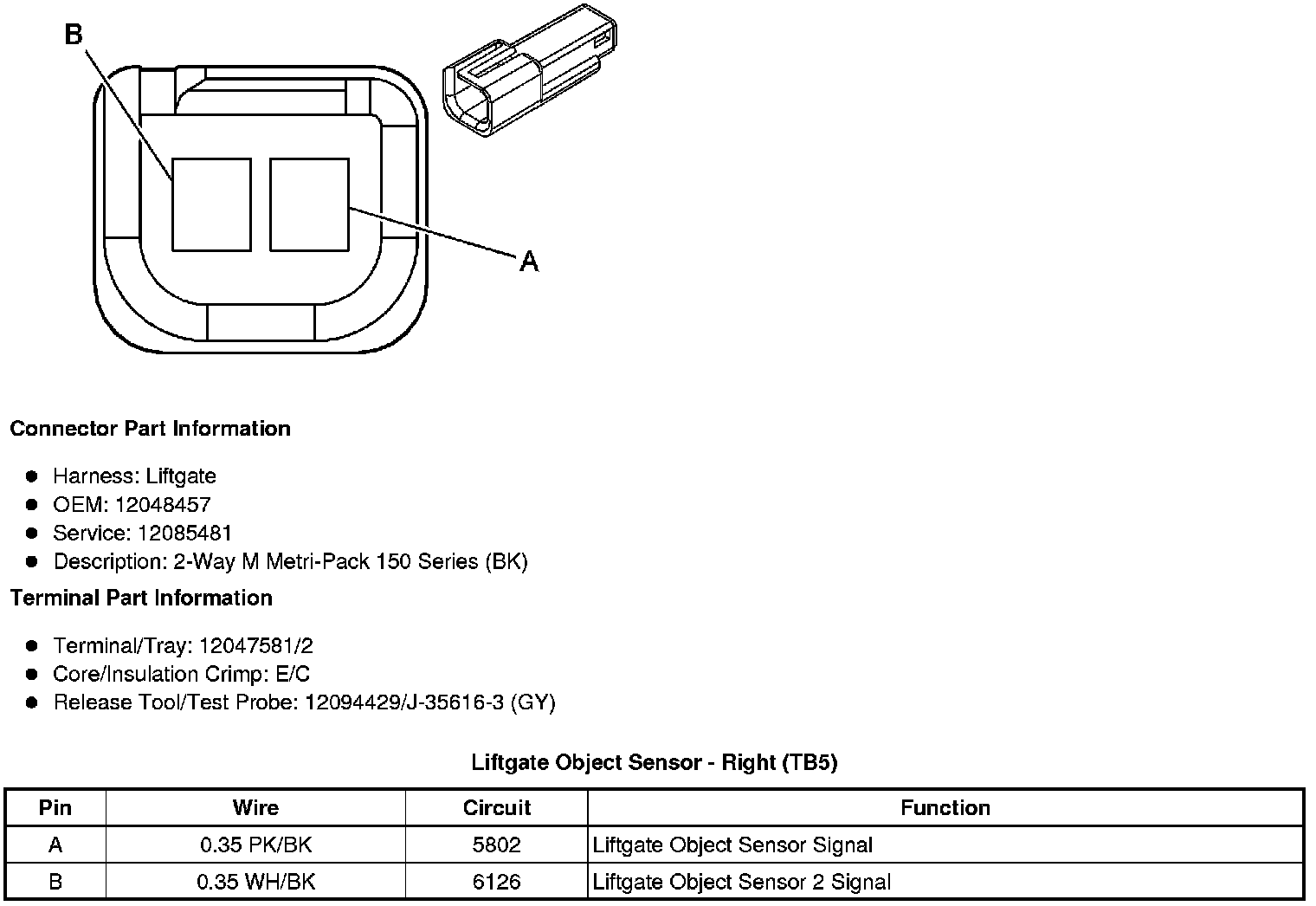

Liftgate Object Sensor - Right (TB5)
