Parking Lamp




Component Connector End Views

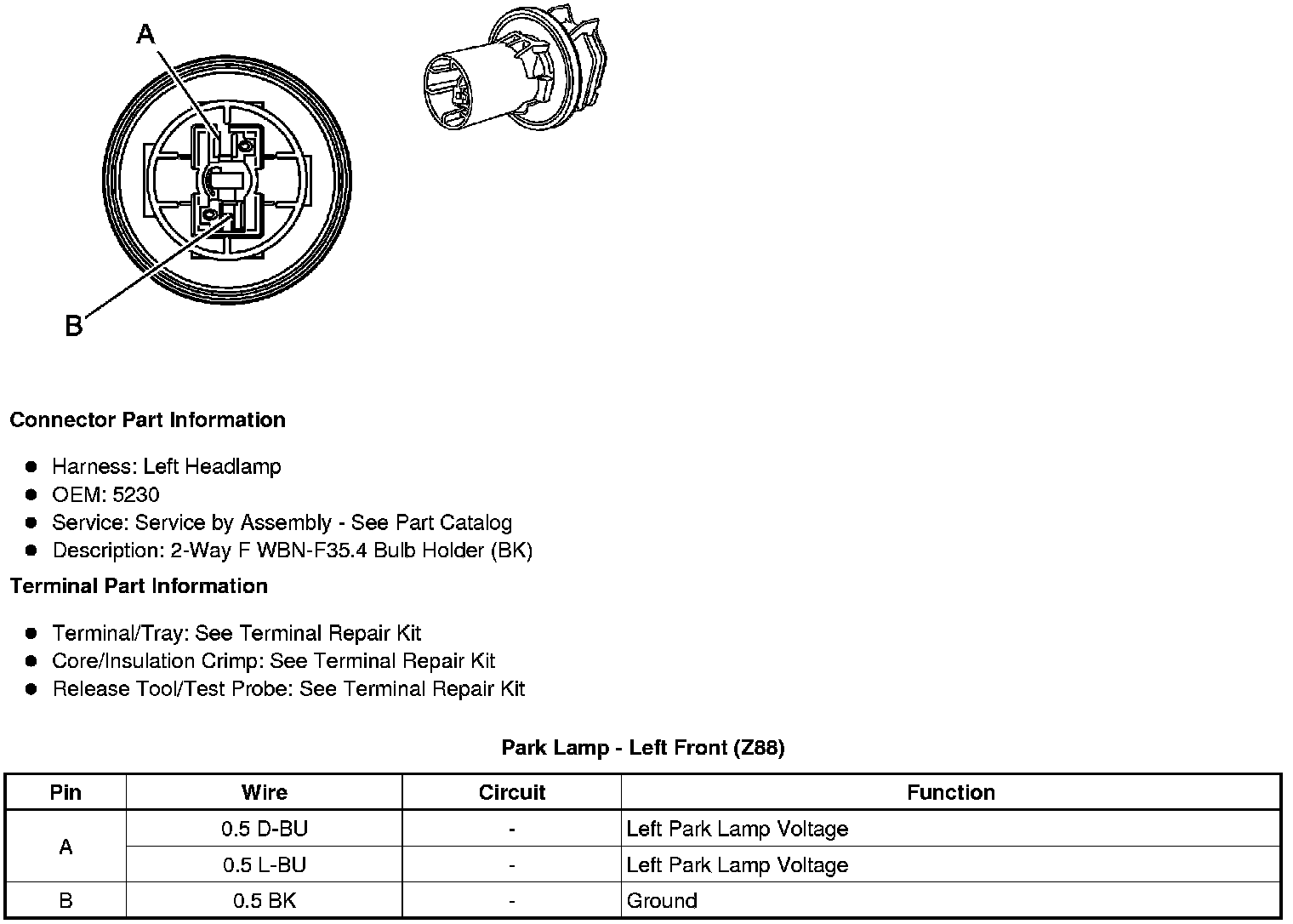

Park Lamp - Left Front (Z88)





Park Lamp - Right Front (Z88)





Park/Turn Signal Lamp - Left (X88)





Park/Turn Signal Lamp - Right (X88)
