License Plate Lamp
License Plate Lamp
Component Connector End Views

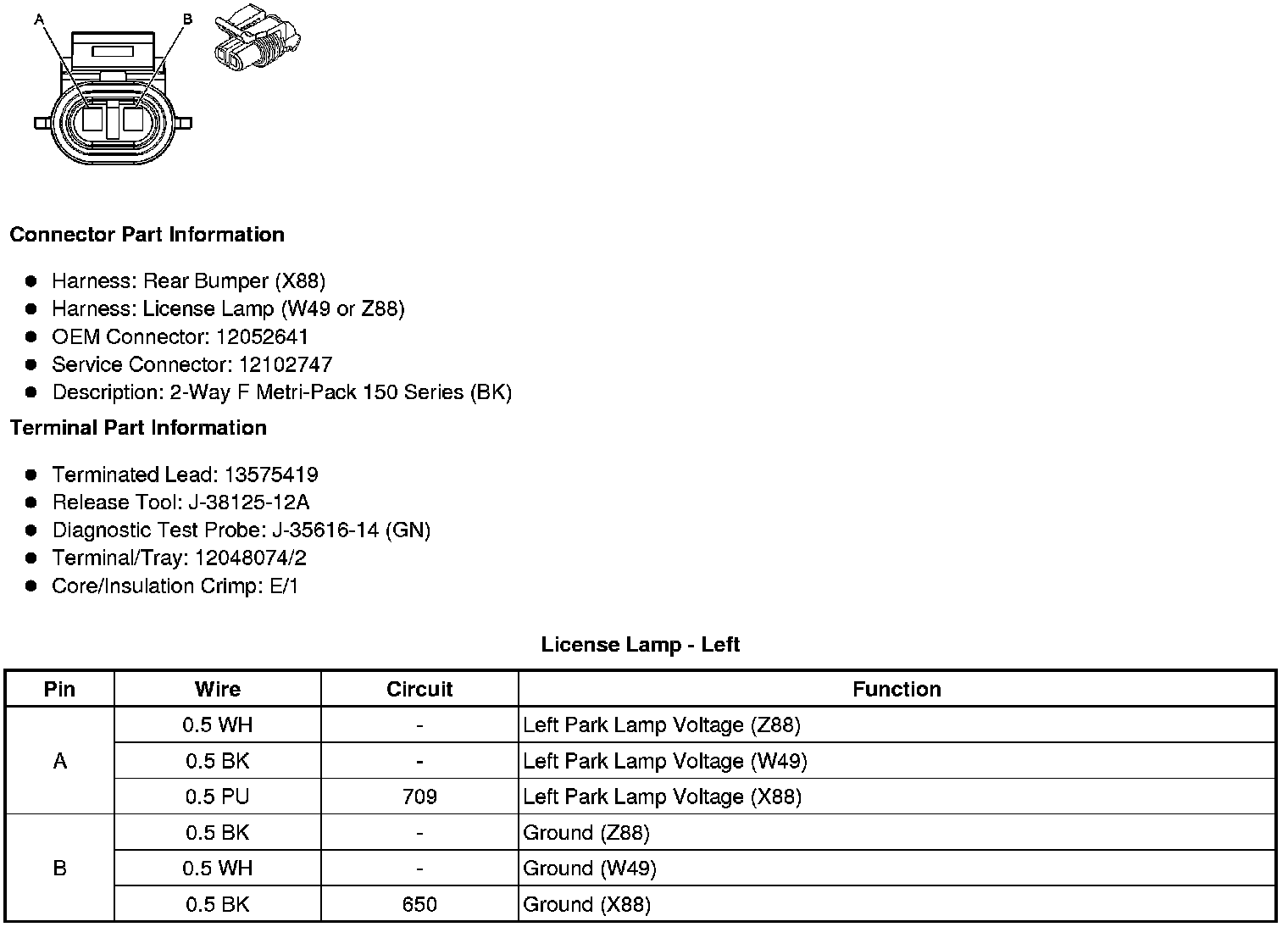

License Lamp - Left

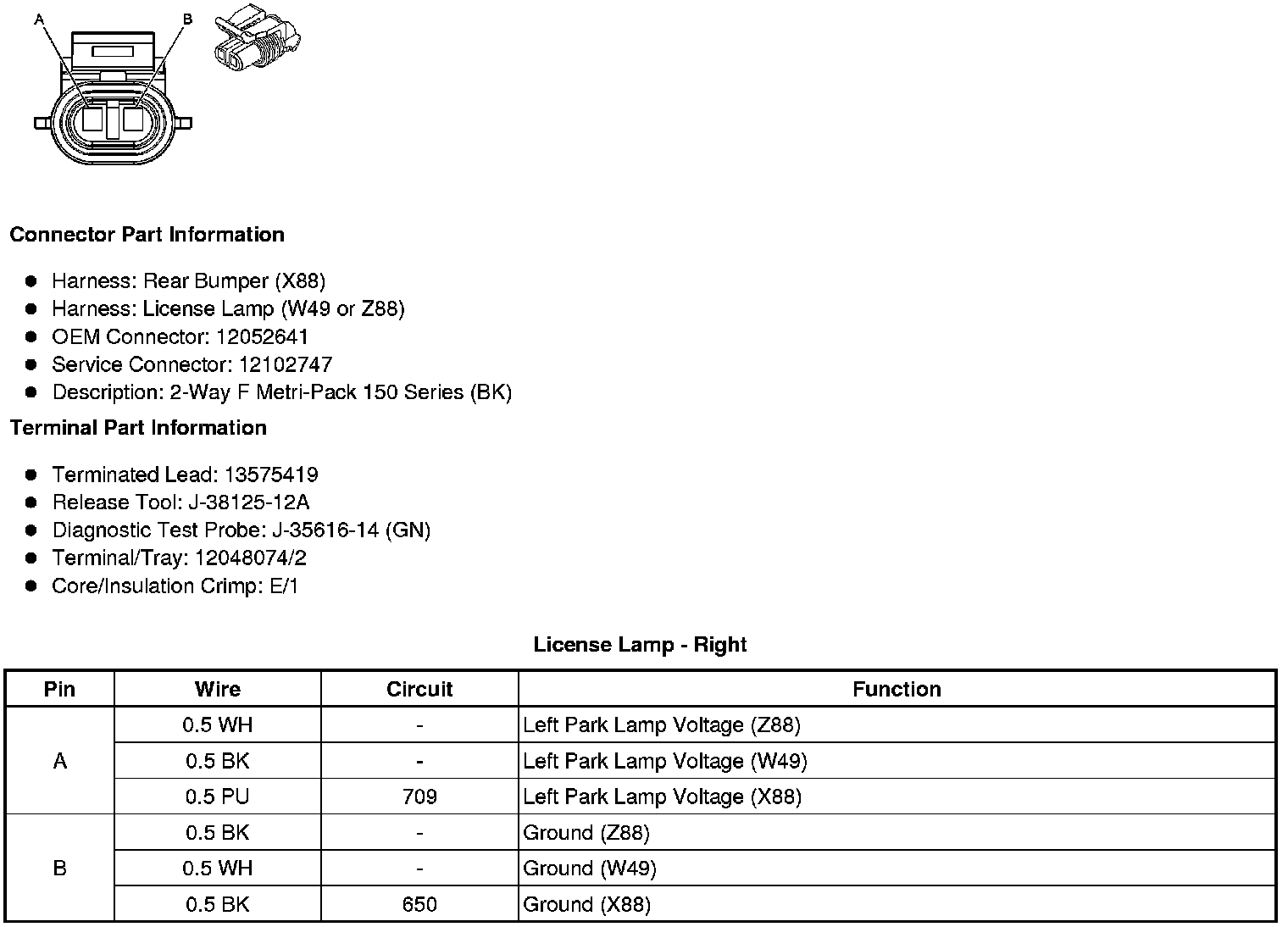

License Lamp - Right
