Home >> Chevrolet >> 2011 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heads Up Display Unit

Heads Up Display Unit

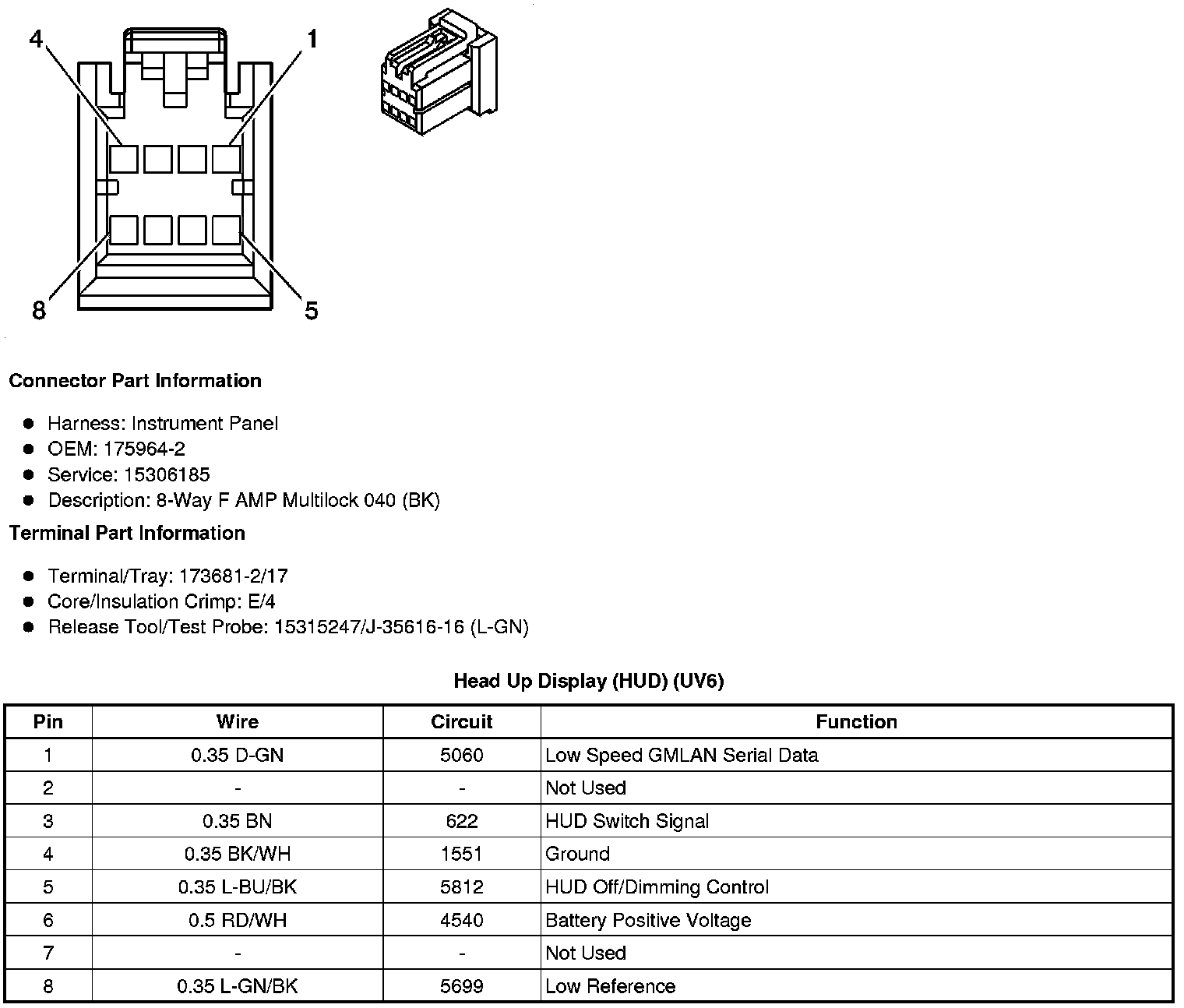

Component Connector End Views

Head Up Display (HUD) (UV6)
