Headlamp Alignment Actuator




Component Connector End Views

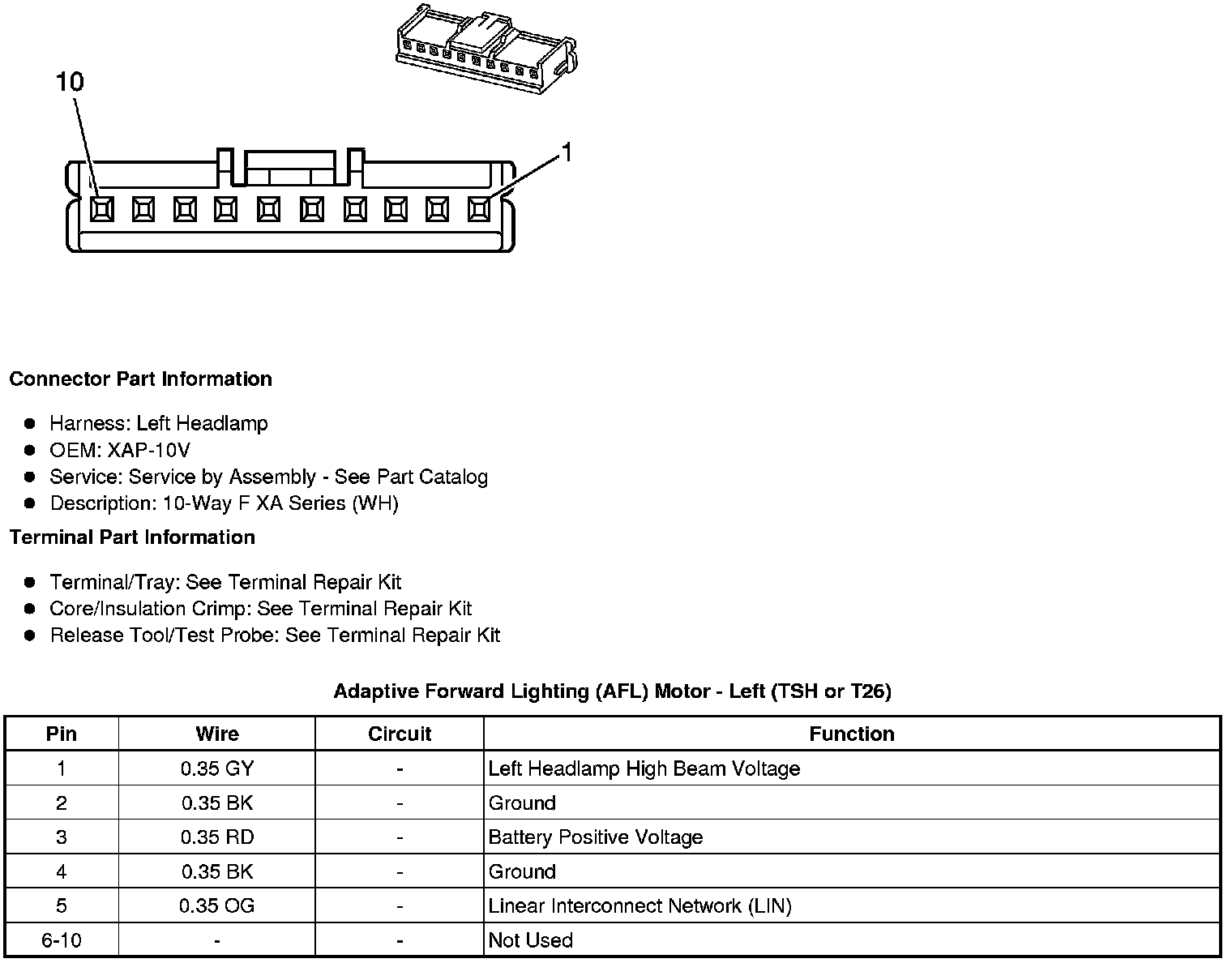

Adaptive Forward Lighting (AFL) Motor - Left (TSH or T26)





Adaptive Forward Lighting (AFL) Motor - Right (TSH or T26)
