Center Mounted Brake Lamp




Component Connector End Views

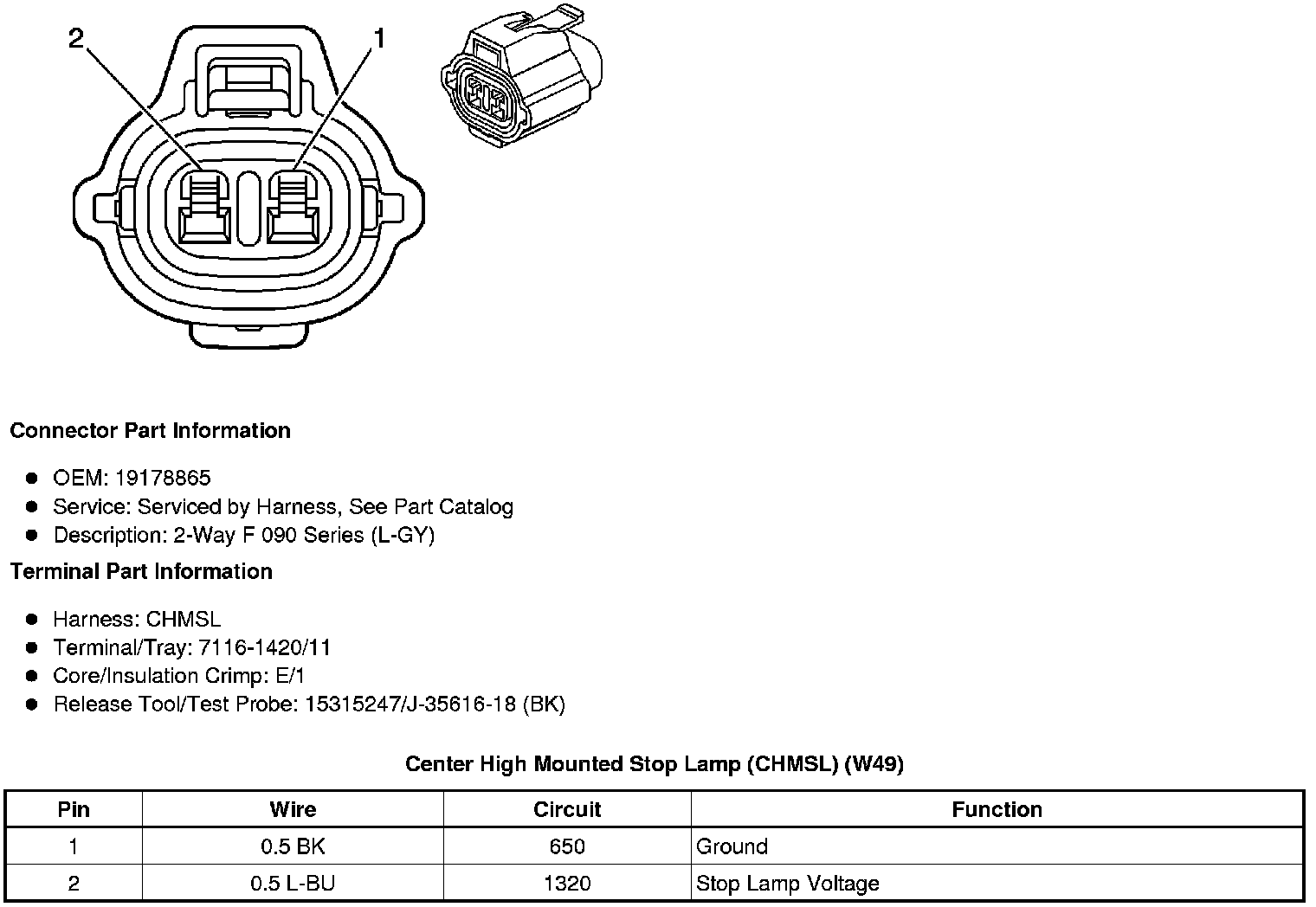

Center High Mounted Stop Lamp (CHMSL) (W49)

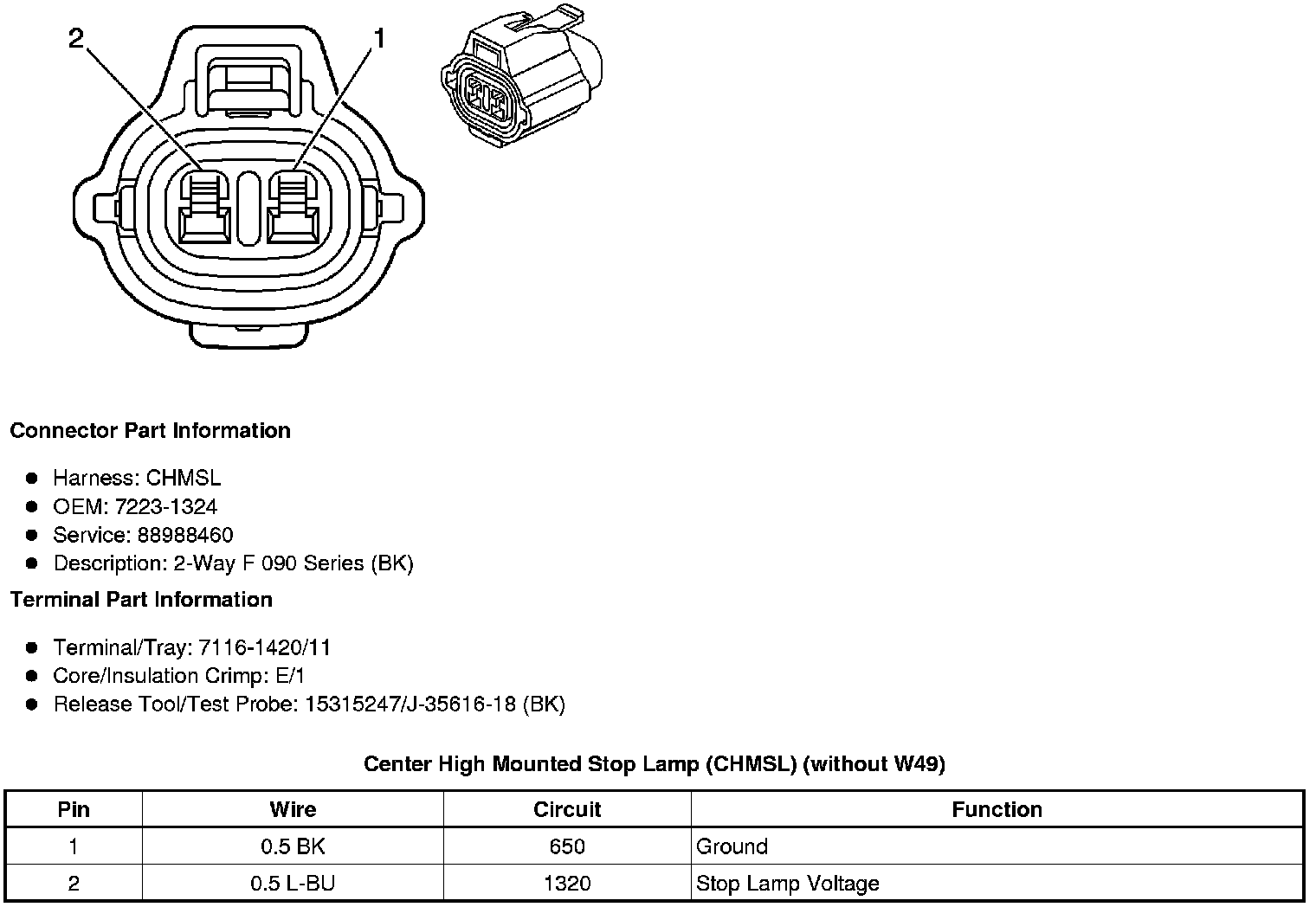

Center High Mounted Stop Lamp (CHMSL) (without W49)
