Seat Temperature Control Module
>>

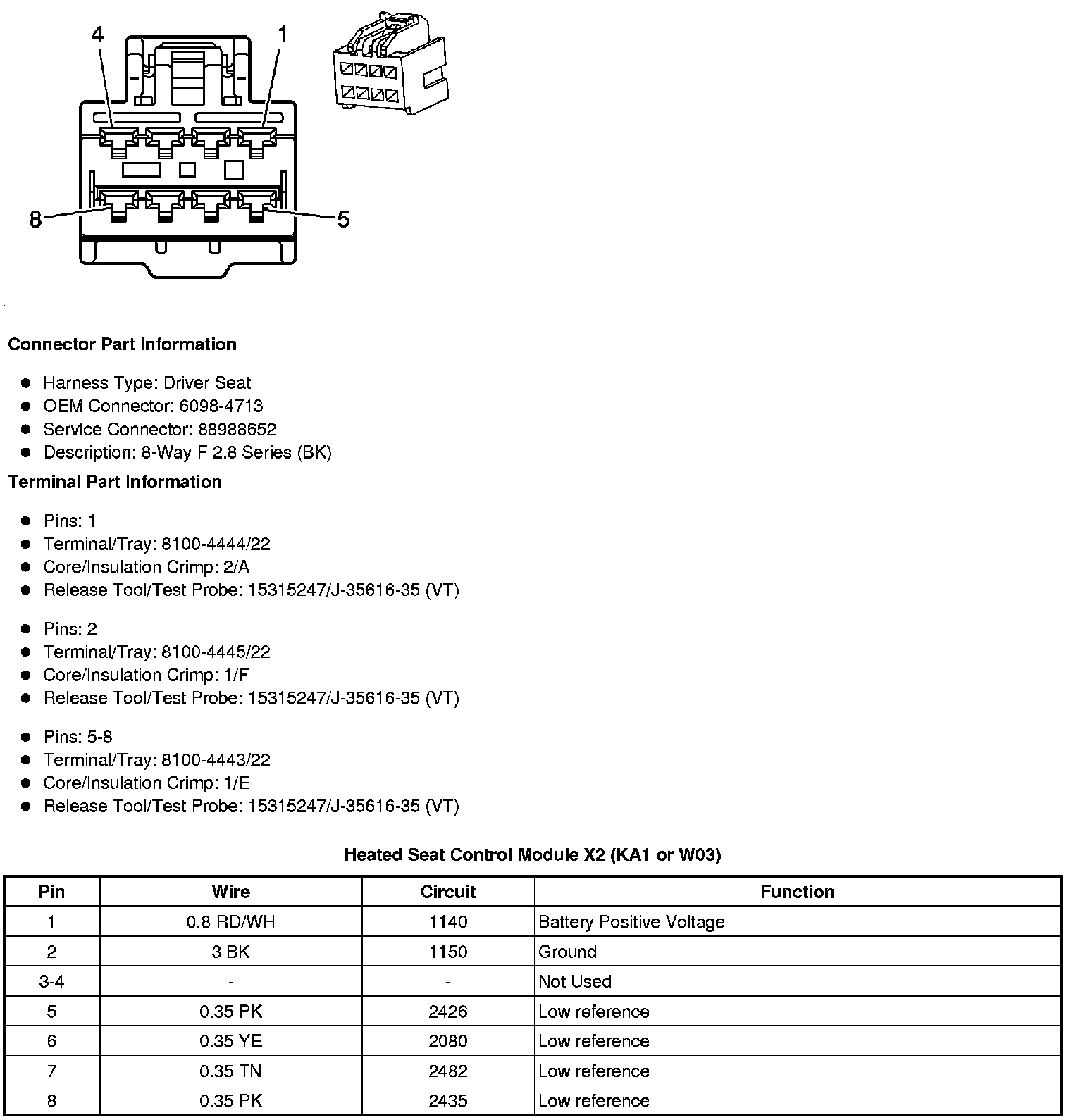

Heated Seat Control Module X2 (KA1 or W03)
Heated Seat Control Module X2 (KA1 or W03)
Component Connector End Views
Heated Seat Control Module X2 (KA1 or W03)
