Heated Seat Control Module - Rear X2 (KA6)
Heated Seat Control Module - Rear X2 (KA6)

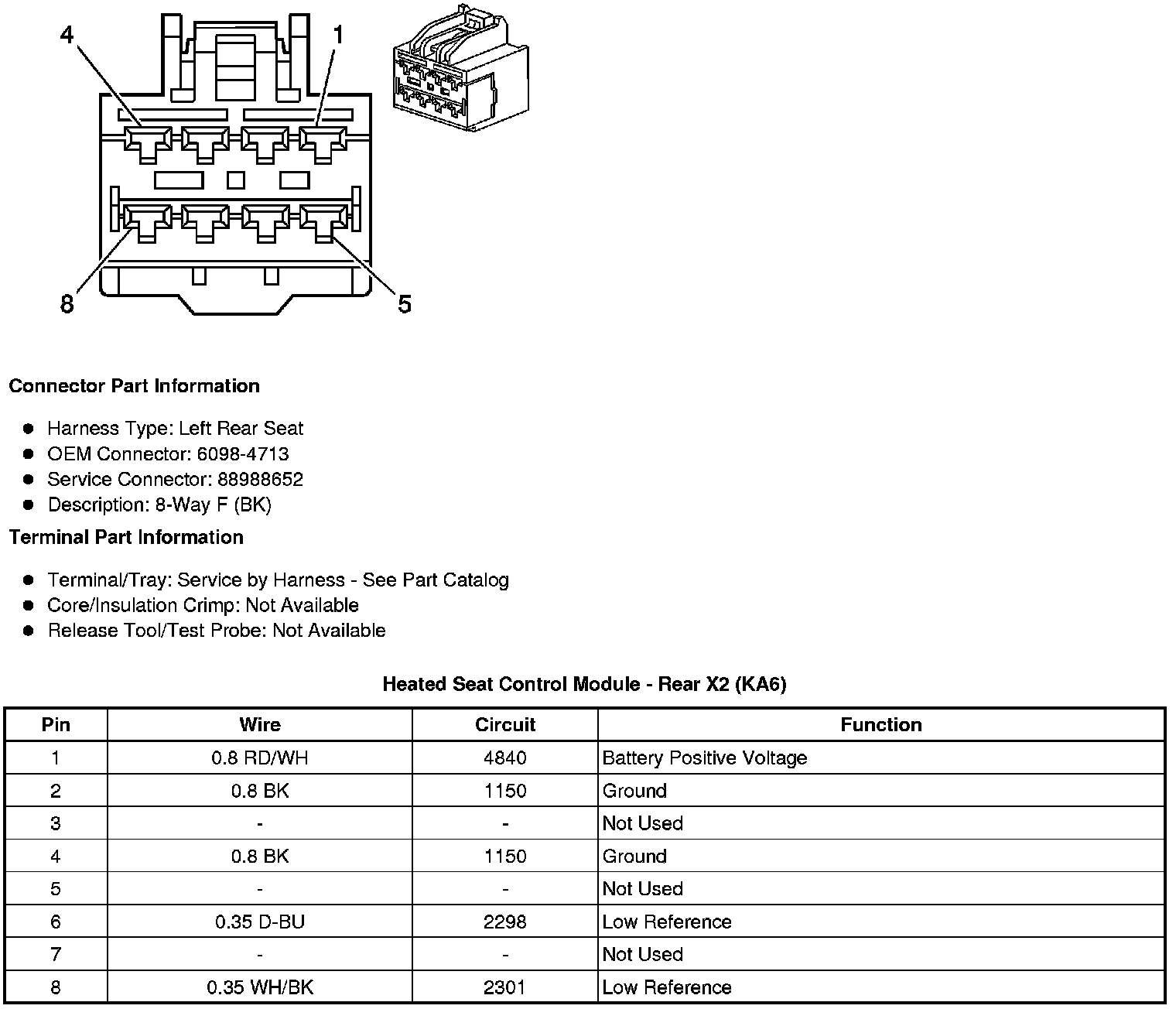

Component Connector End Views
Heated Seat Control Module - Rear X2 (KA6)
