Compressor/Pump, Suspension Control

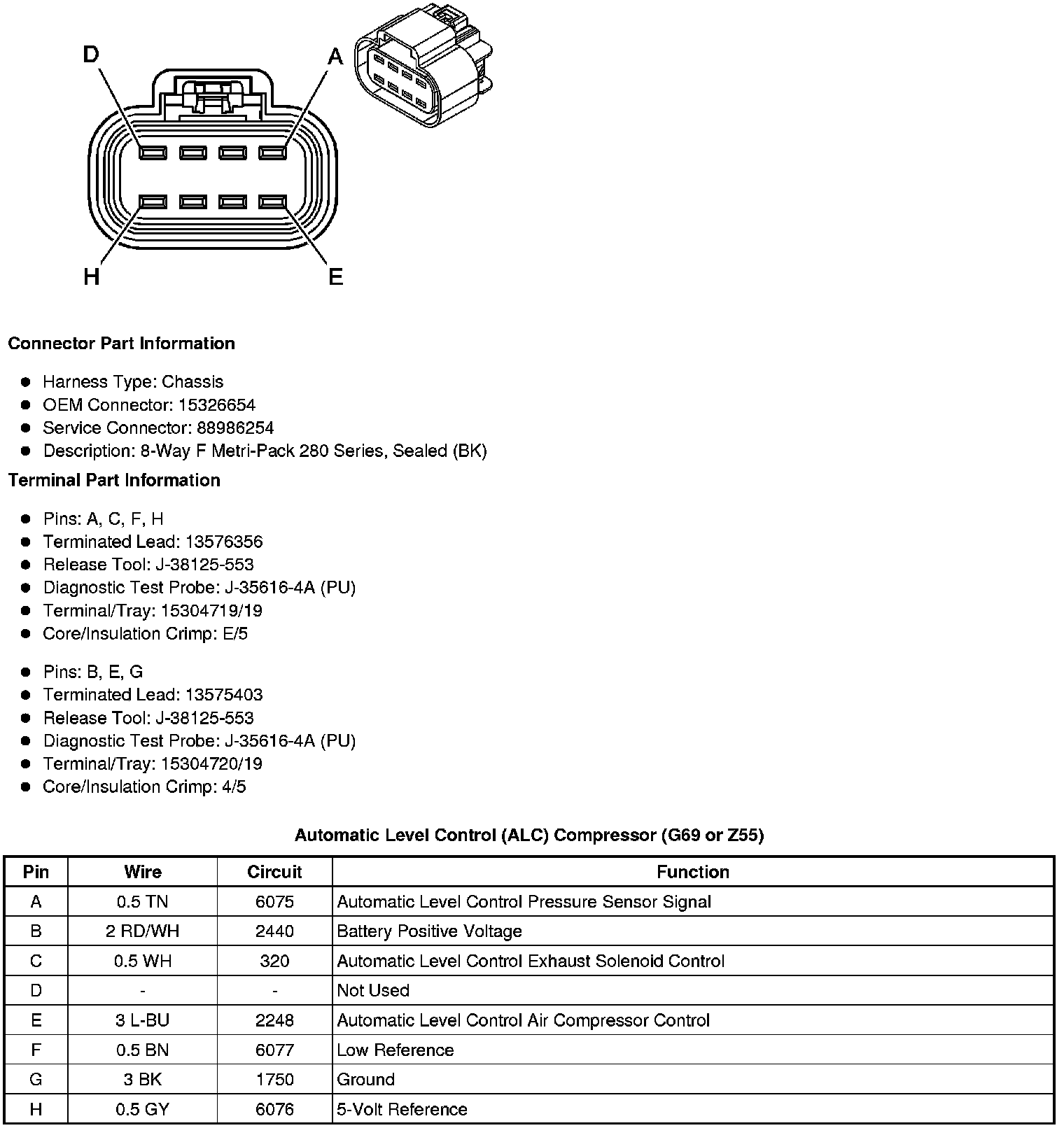

Component Connector End Views

Automatic Level Control (ALC) Compressor (G69 or Z55)
