Window Motor - Driver
Window Motor - Driver

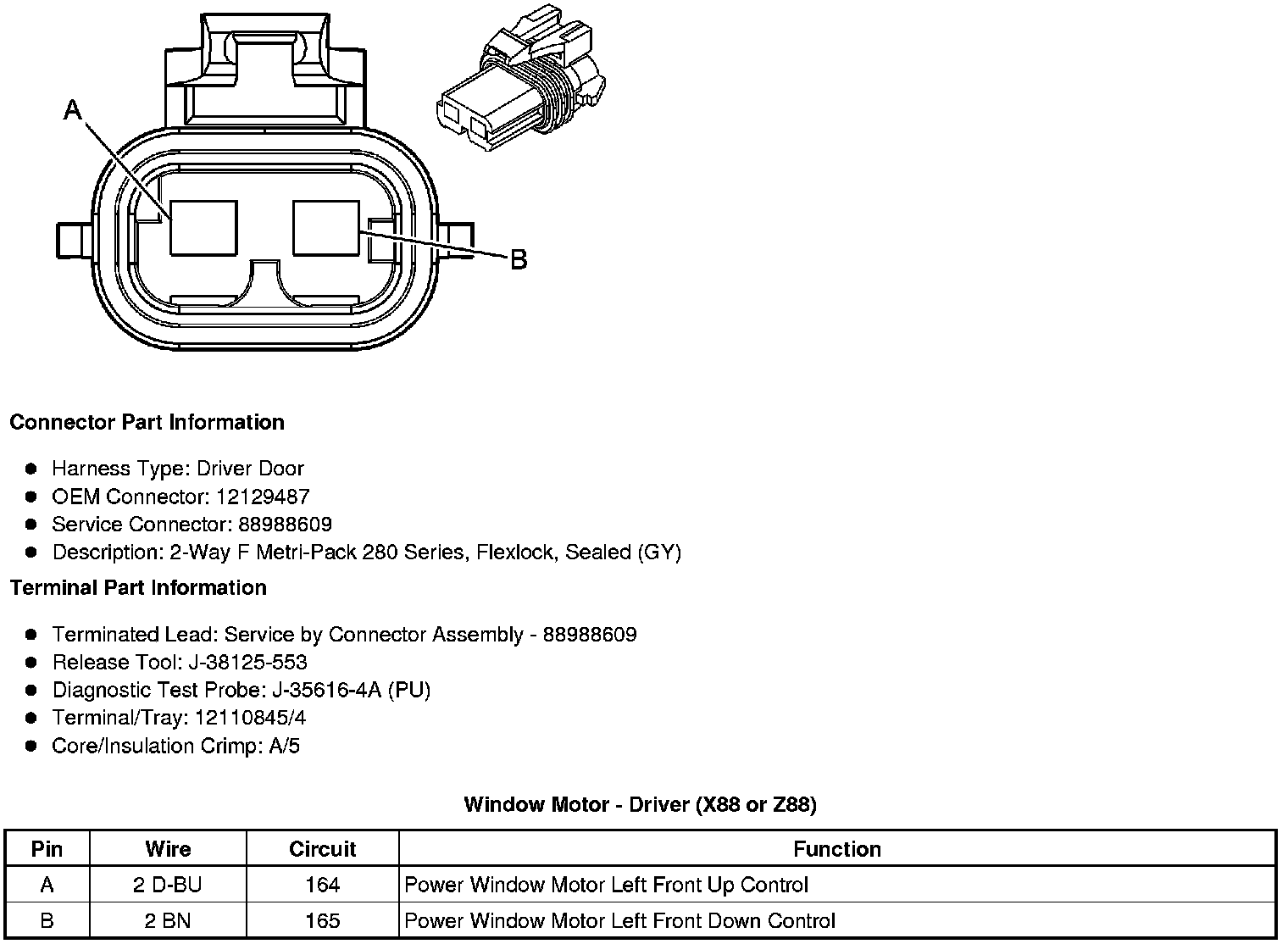

Component Connector End Views
Window Motor - Driver (X88 or Z88)
