Camshaft Position Sensor: Diagrams




Component Connector End Views

Camshaft Position (CMP) Sensor - Intake (LE5 or LE9)

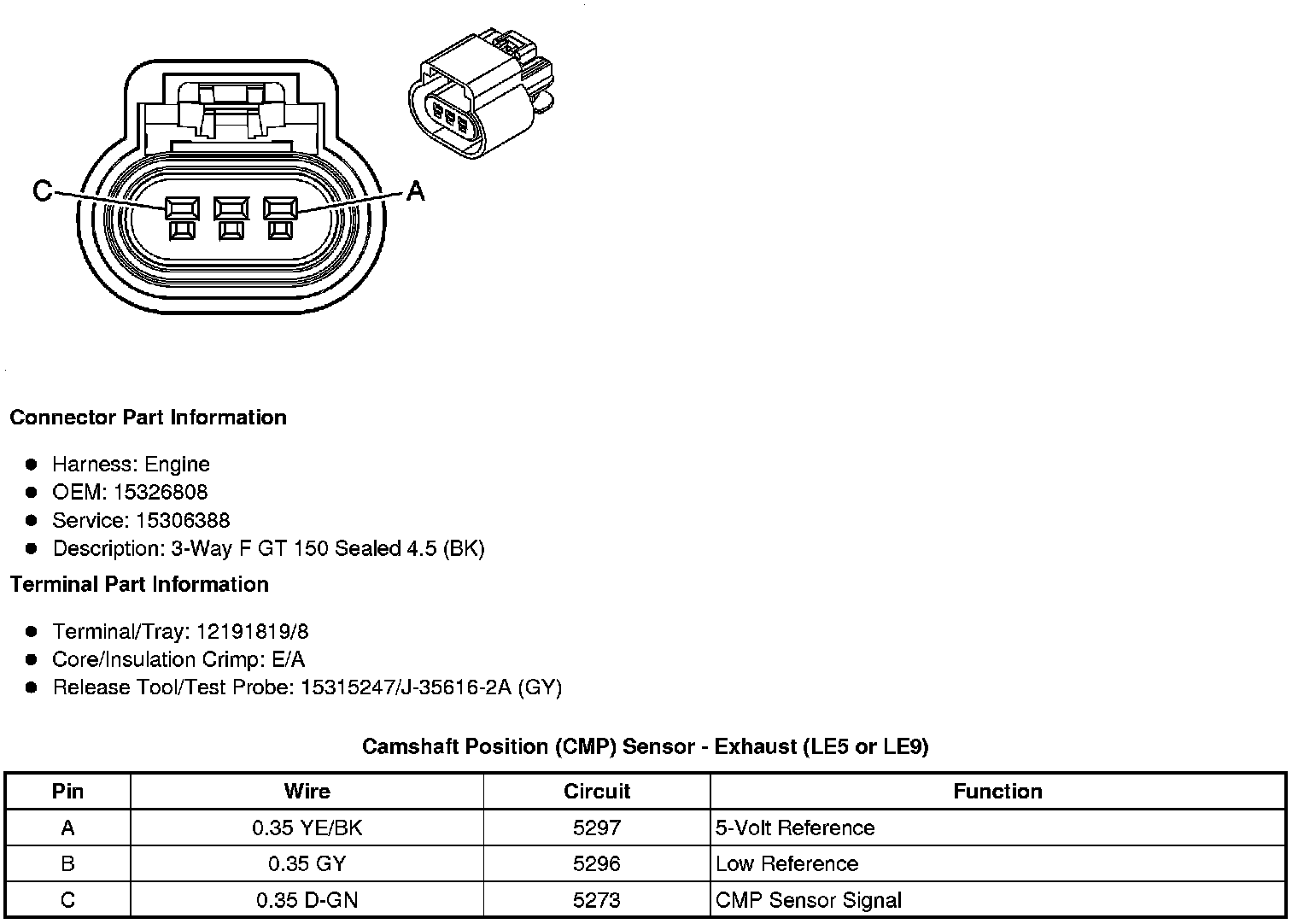

Camshaft Position (CMP) Sensor - Exhaust (LE5 or LE9)
