Alternator




Component Connector End Views

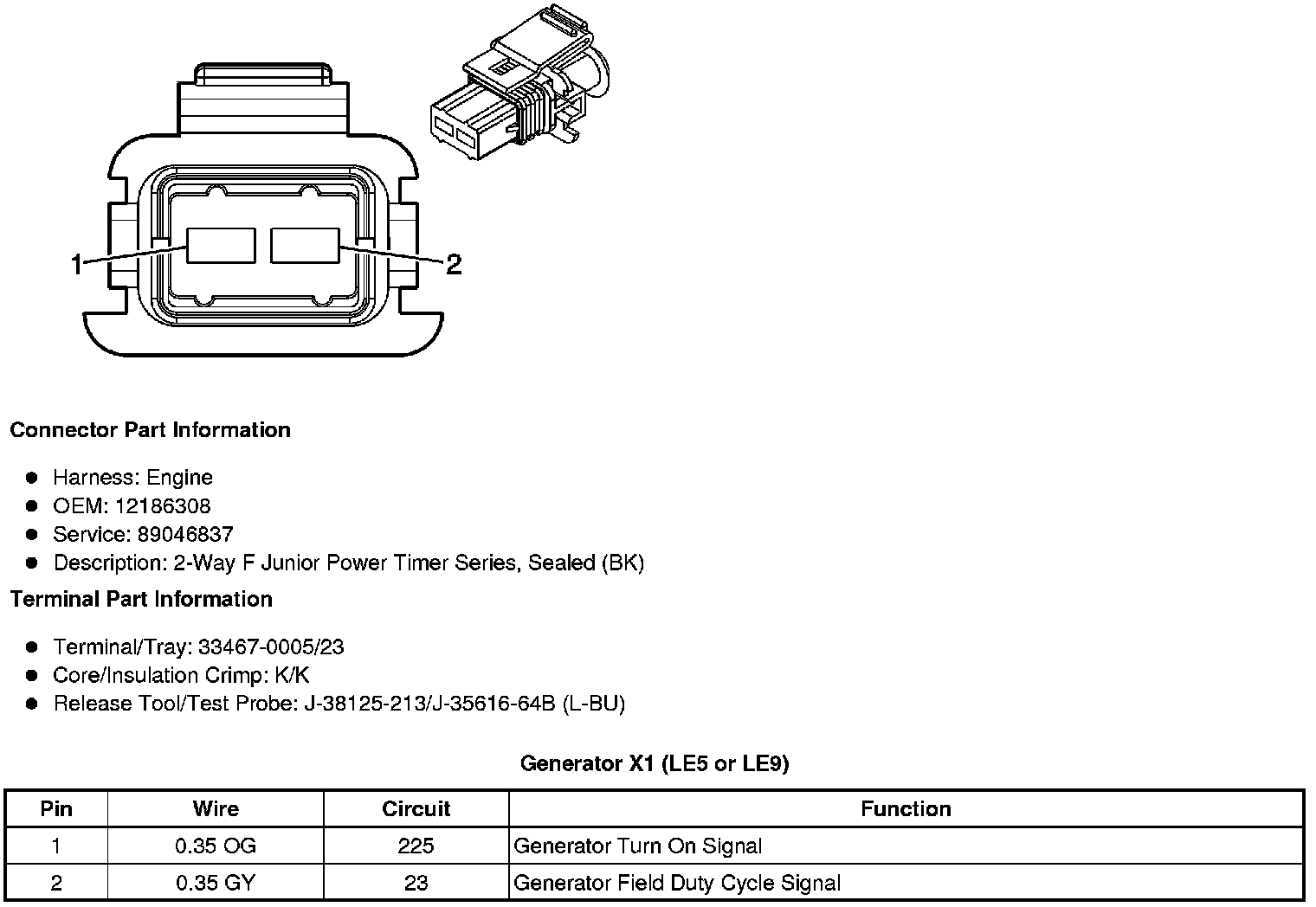

Generator X1 (LE5 or LE9)





Generator X2 (LE5 or LE9)
