Turn Signal Lamp




Component Connector End Views

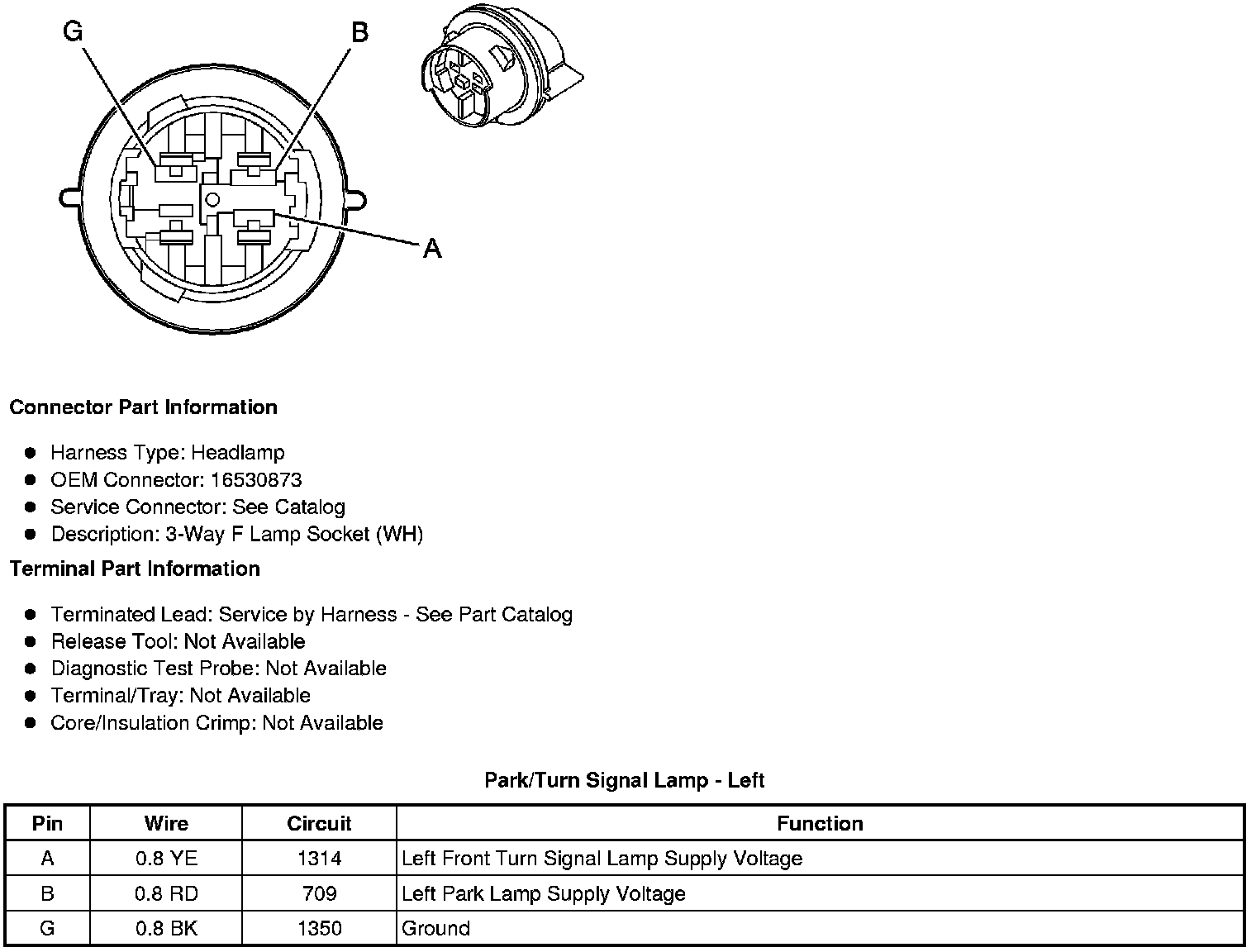

Park/Turn Signal Lamp - Left





Park/Turn Signal Lamp - Right





Tail/Stop and Turn Signal Lamp - Left





Tail/Stop and Turn Signal Lamp - Right
