Washer Fluid Level Switch
Washer Fluid Level Switch

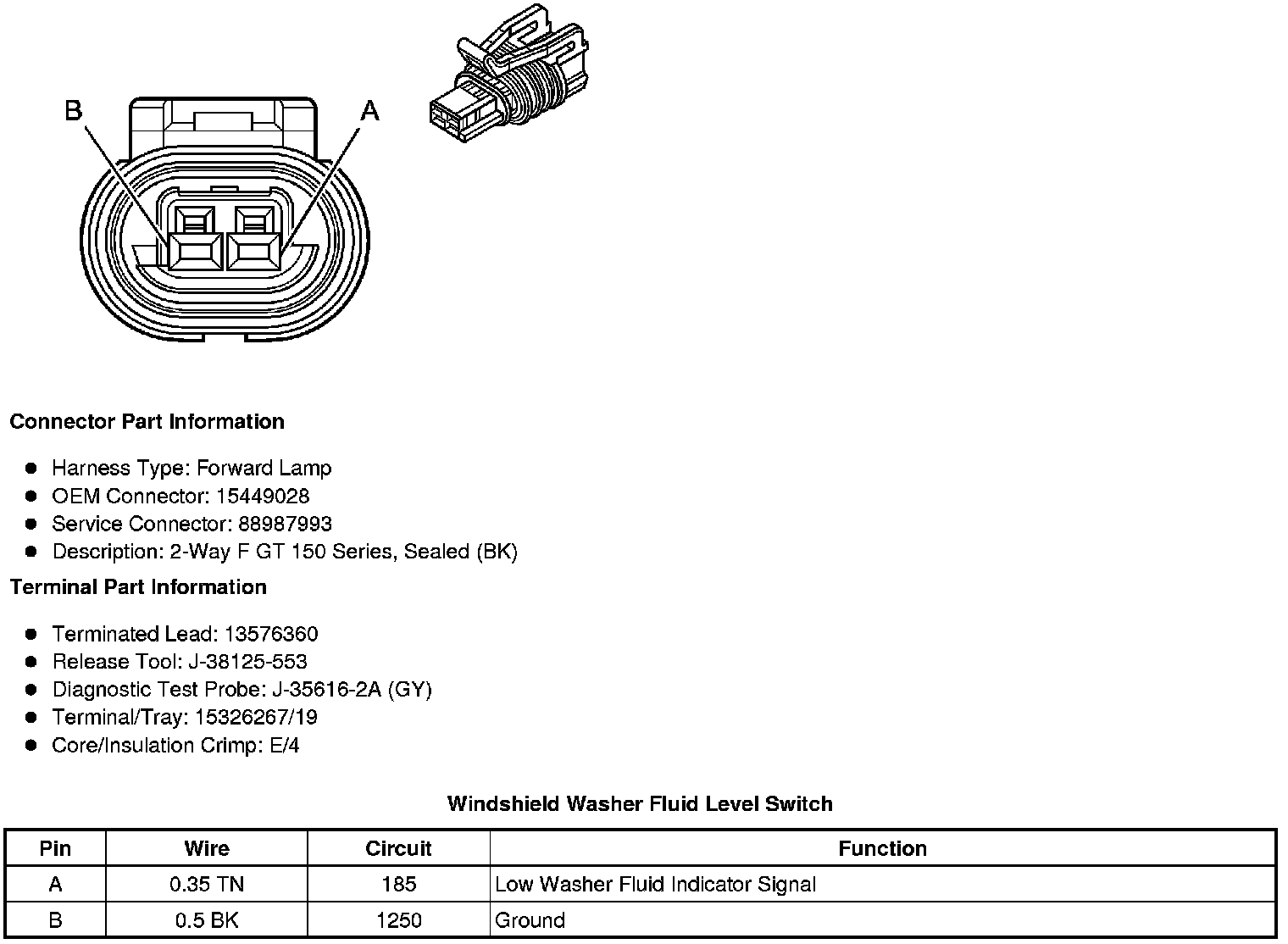

Component Connector End Views
Windshield Washer Fluid Level Switch
