Shift Interlock Solenoid




Component Connector End Views

Automatic Transmission Shift Lock Control Solenoid (without D55)

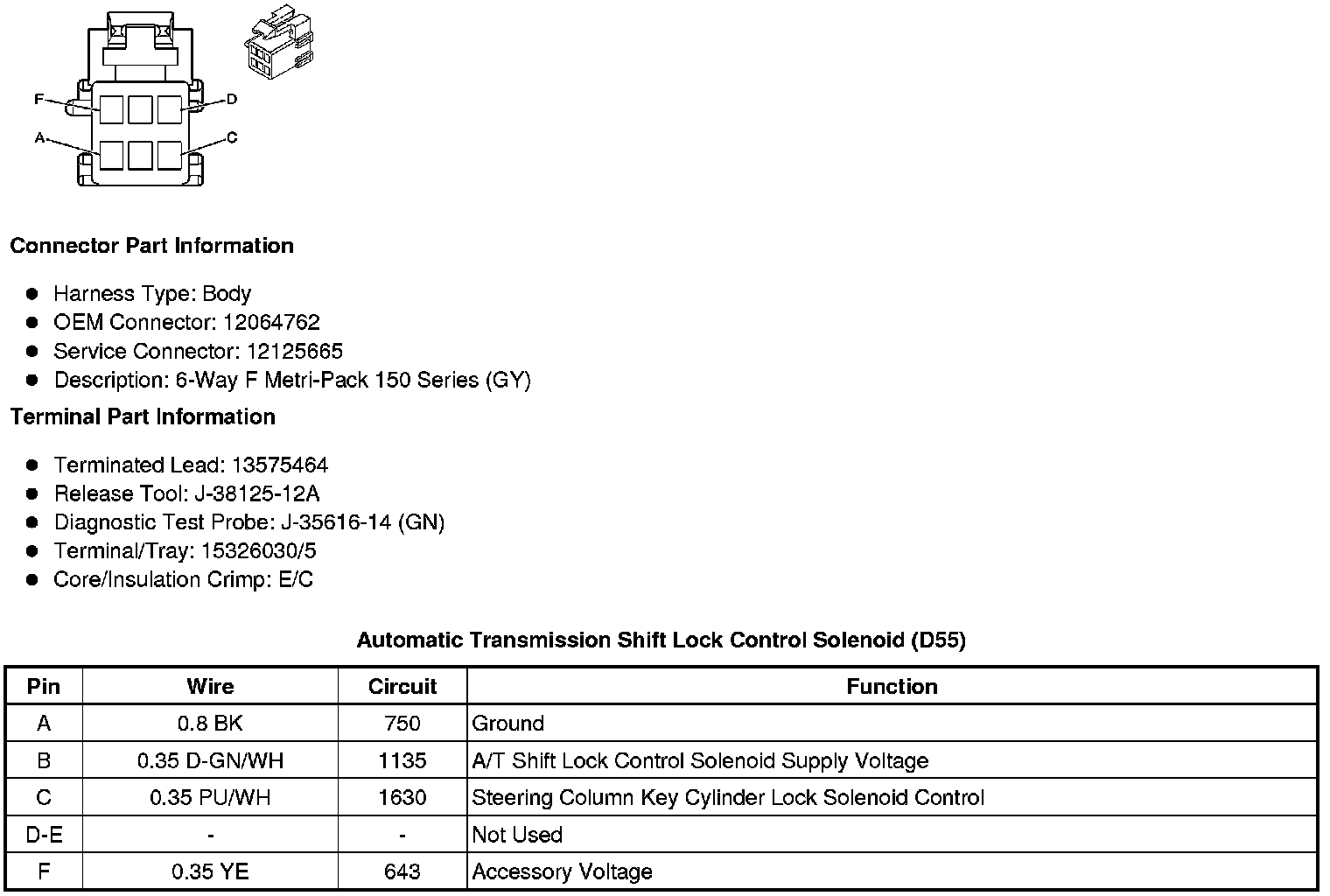

Automatic Transmission Shift Lock Control Solenoid (D55)
