Power Seat Motor




Component Connector End Views

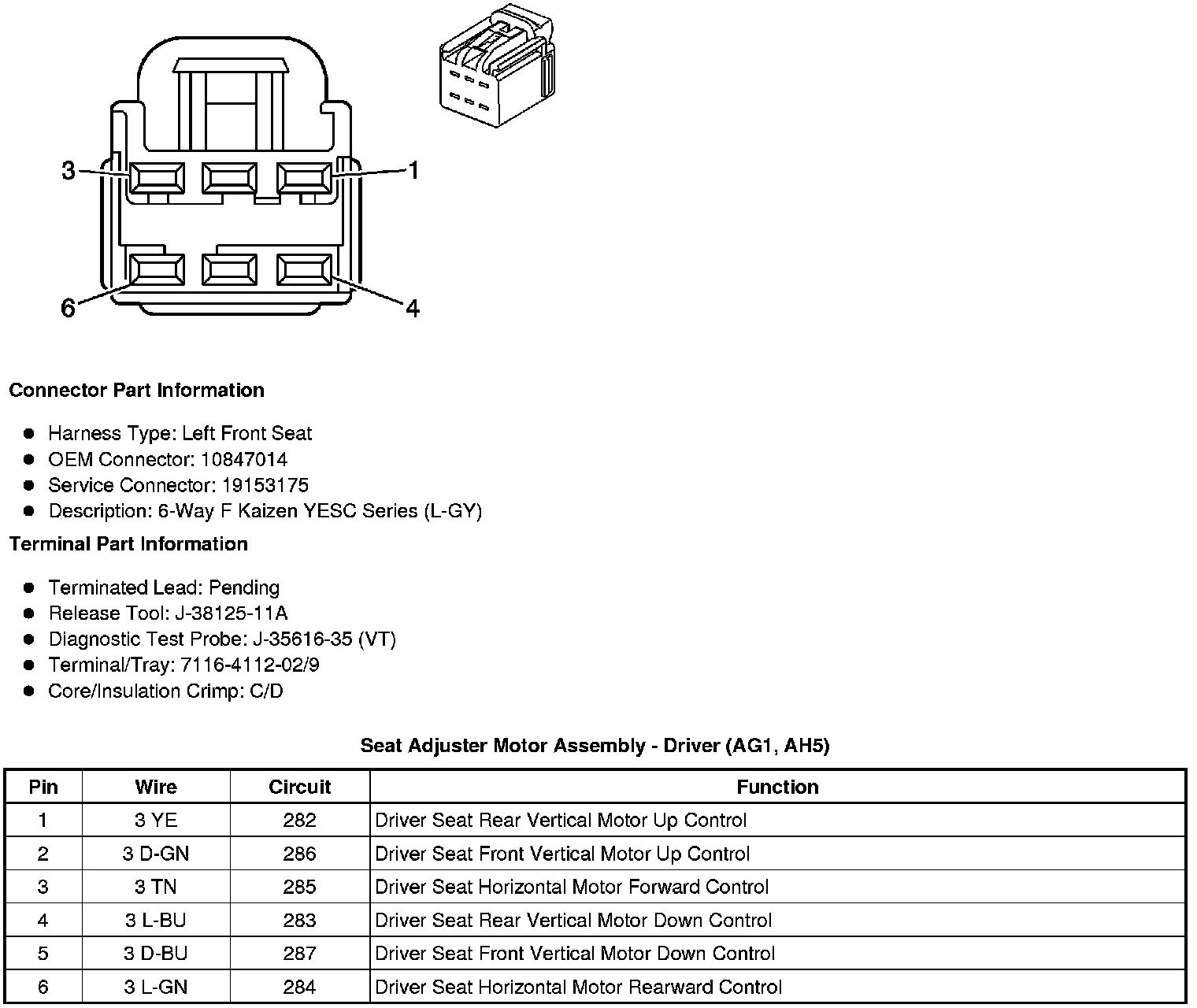

Seat Adjuster Motor Assembly - Driver (AG1, AH5)

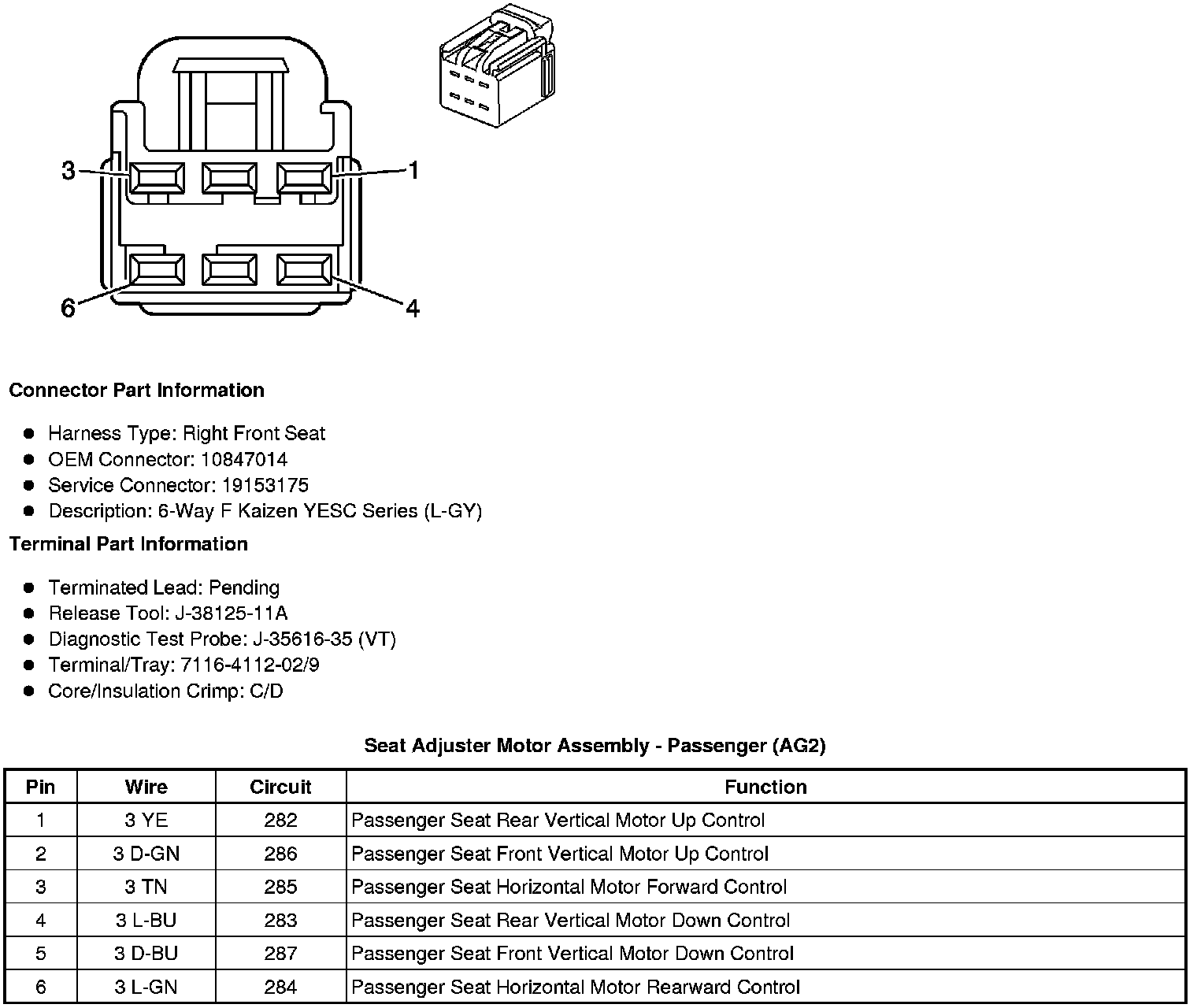

Seat Adjuster Motor Assembly - Passenger (AG2)





Seat Recline Motor - Driver (AH5)
