Home >> Chevrolet >> 2011 >> Impala V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram




Component Connector End Views

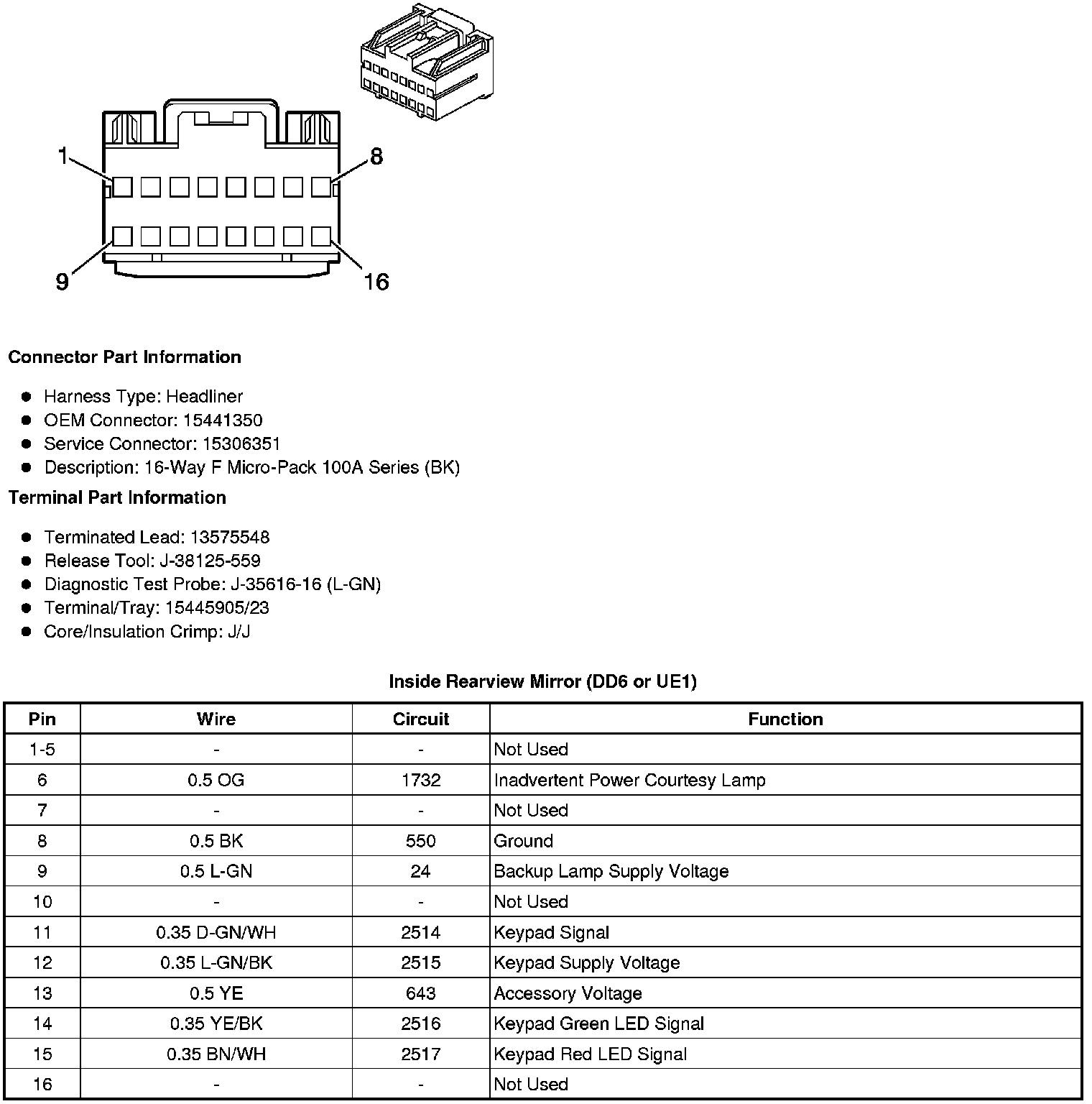

Inside Rearview Mirror (DD6 or UE1)





Inside Rearview Mirror (without DD6 or UE1)

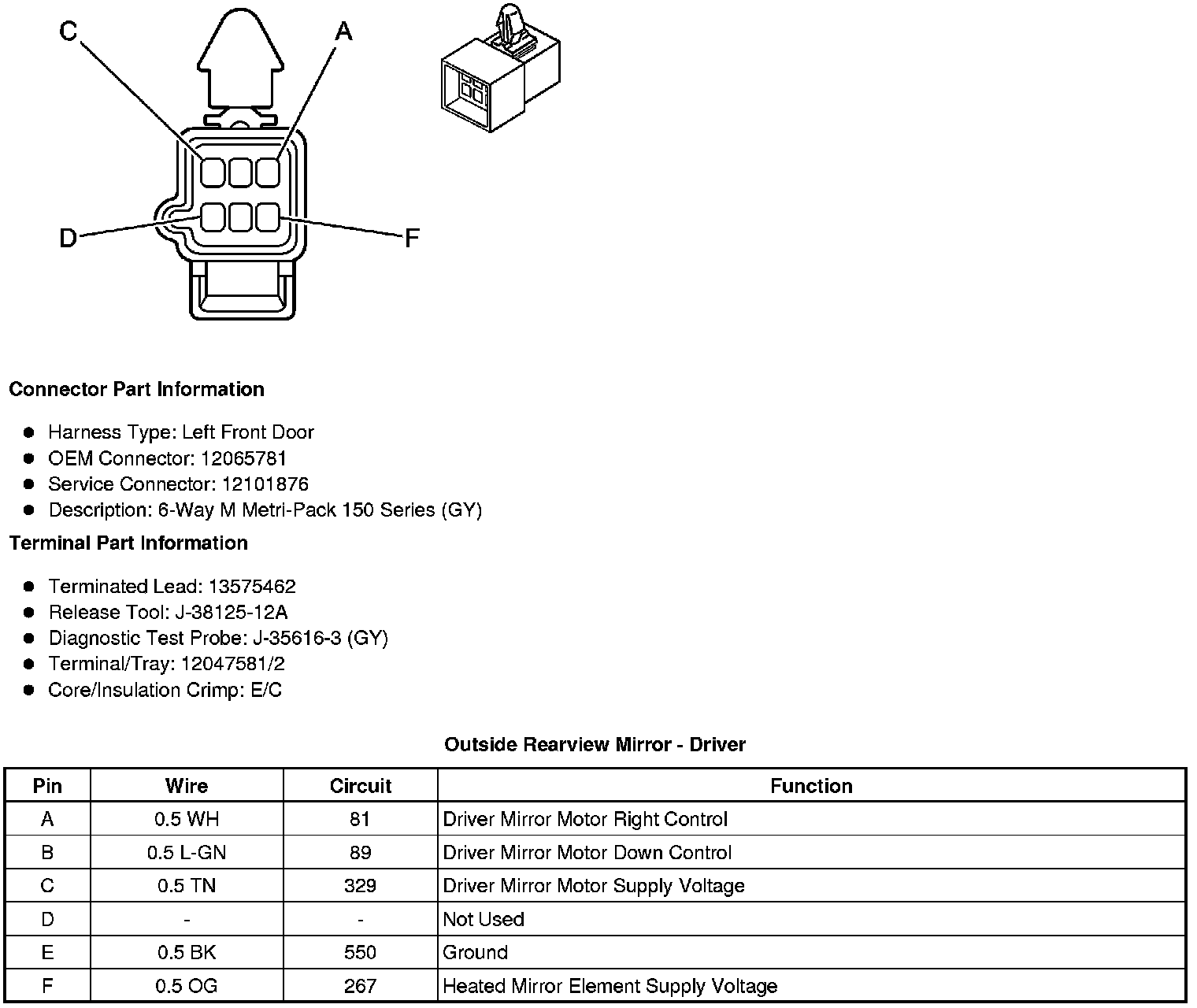

Outside Rearview Mirror - Driver

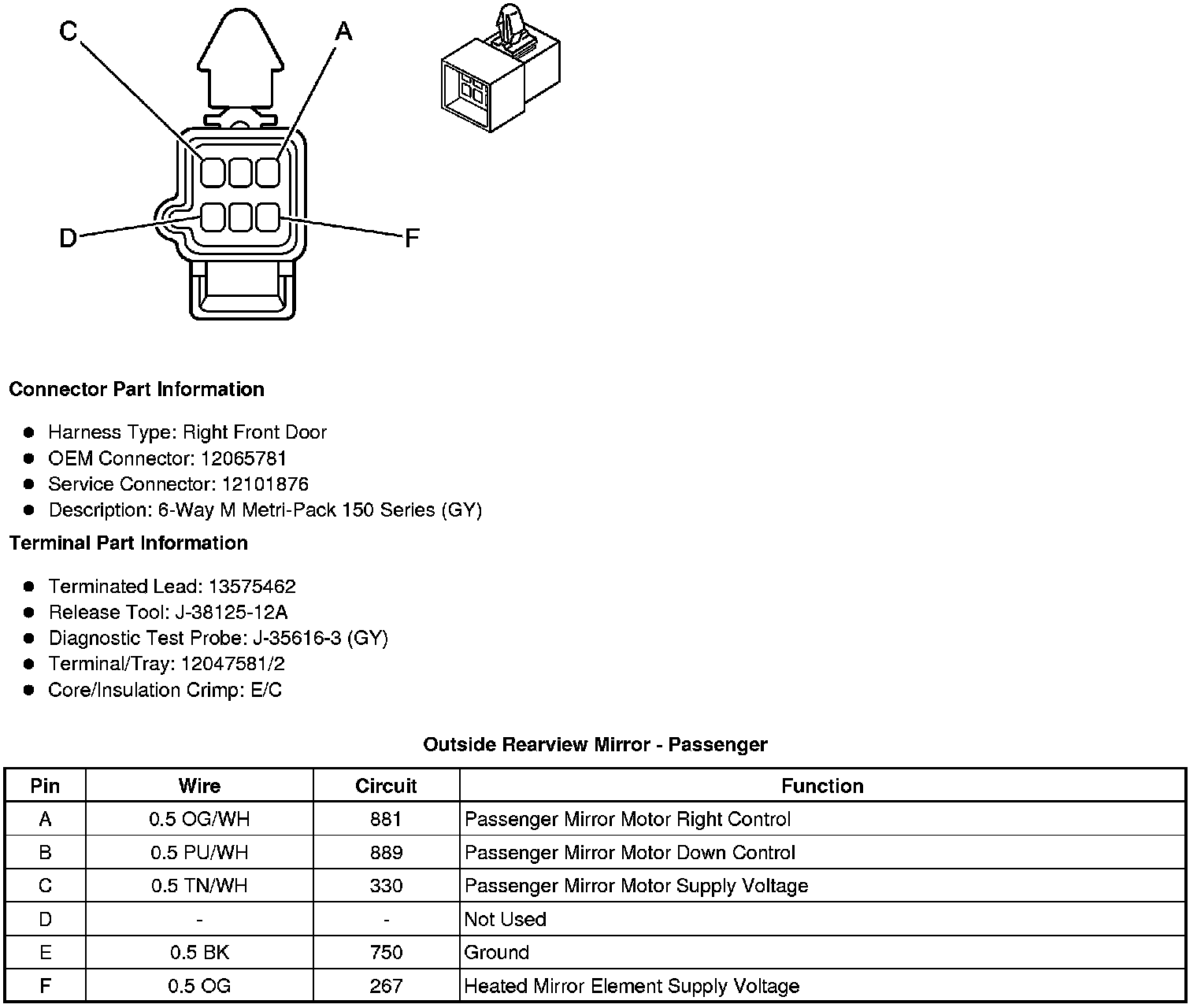

Outside Rearview Mirror - Passenger
