Marker Lamp

Component Connector End Views

Side Marker Lamp - Left Front

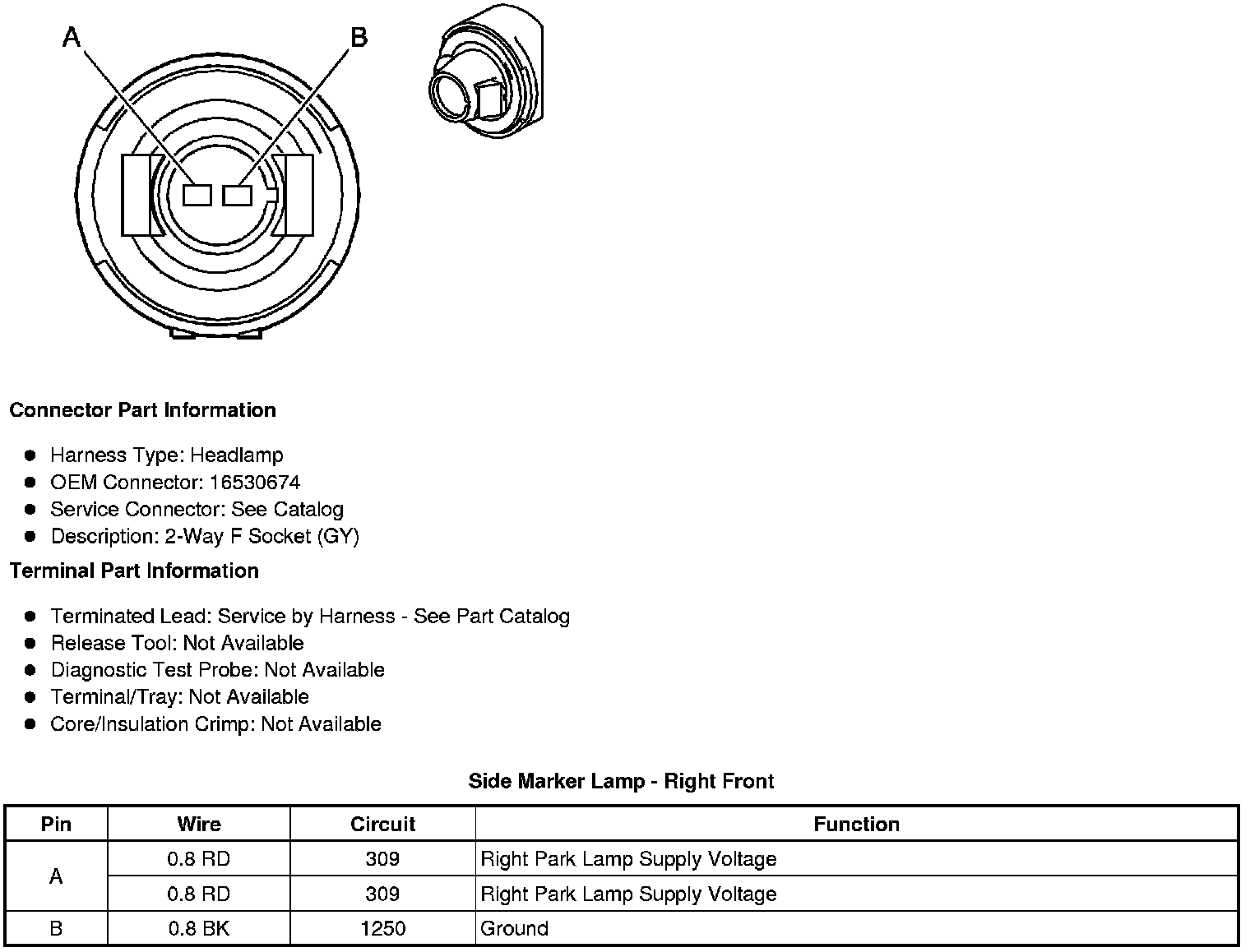

Side Marker Lamp - Right Front
