Home >> Chevrolet >> 2011 >> Impala V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector




Component Connector End Views

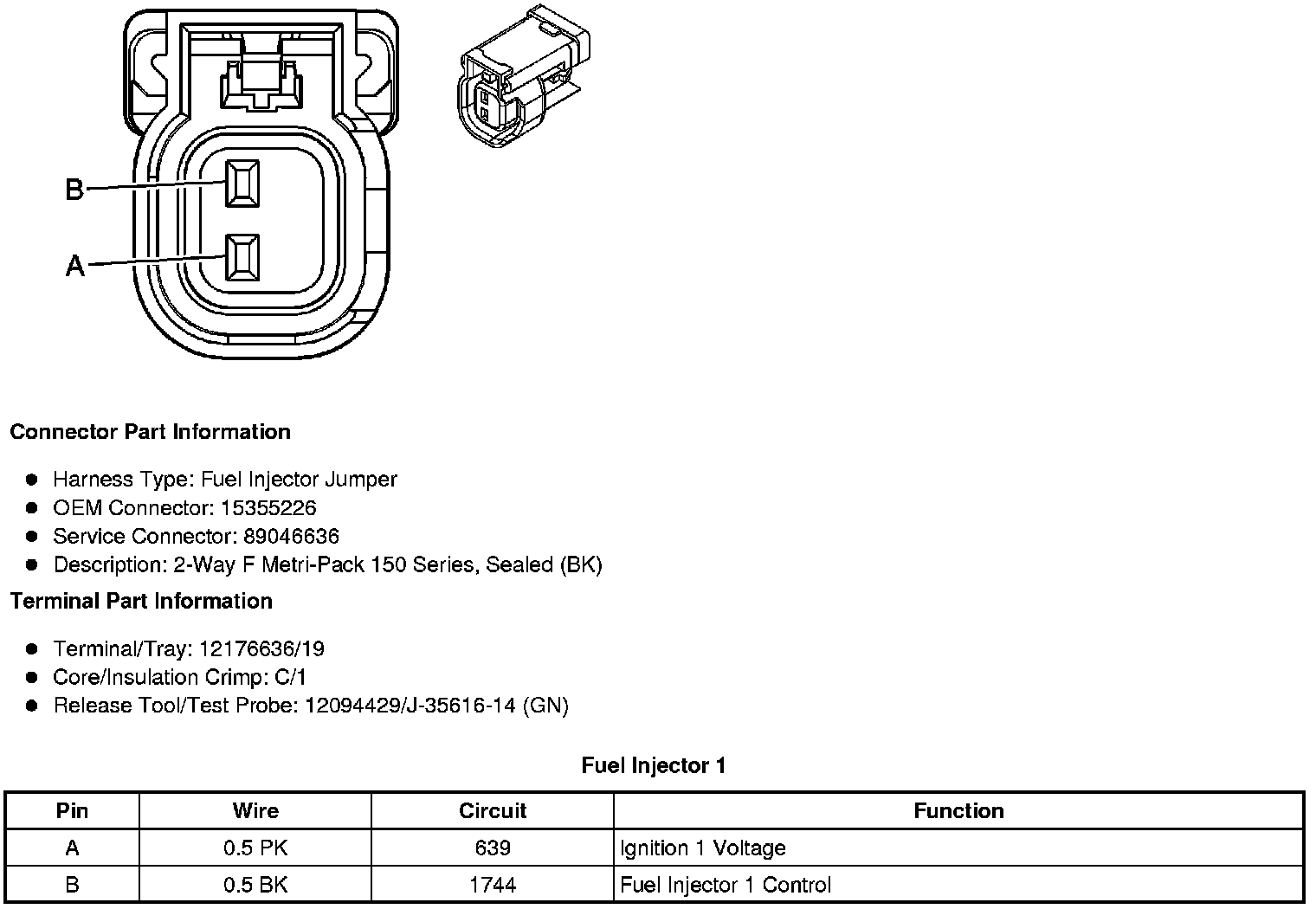

Fuel Injector 1

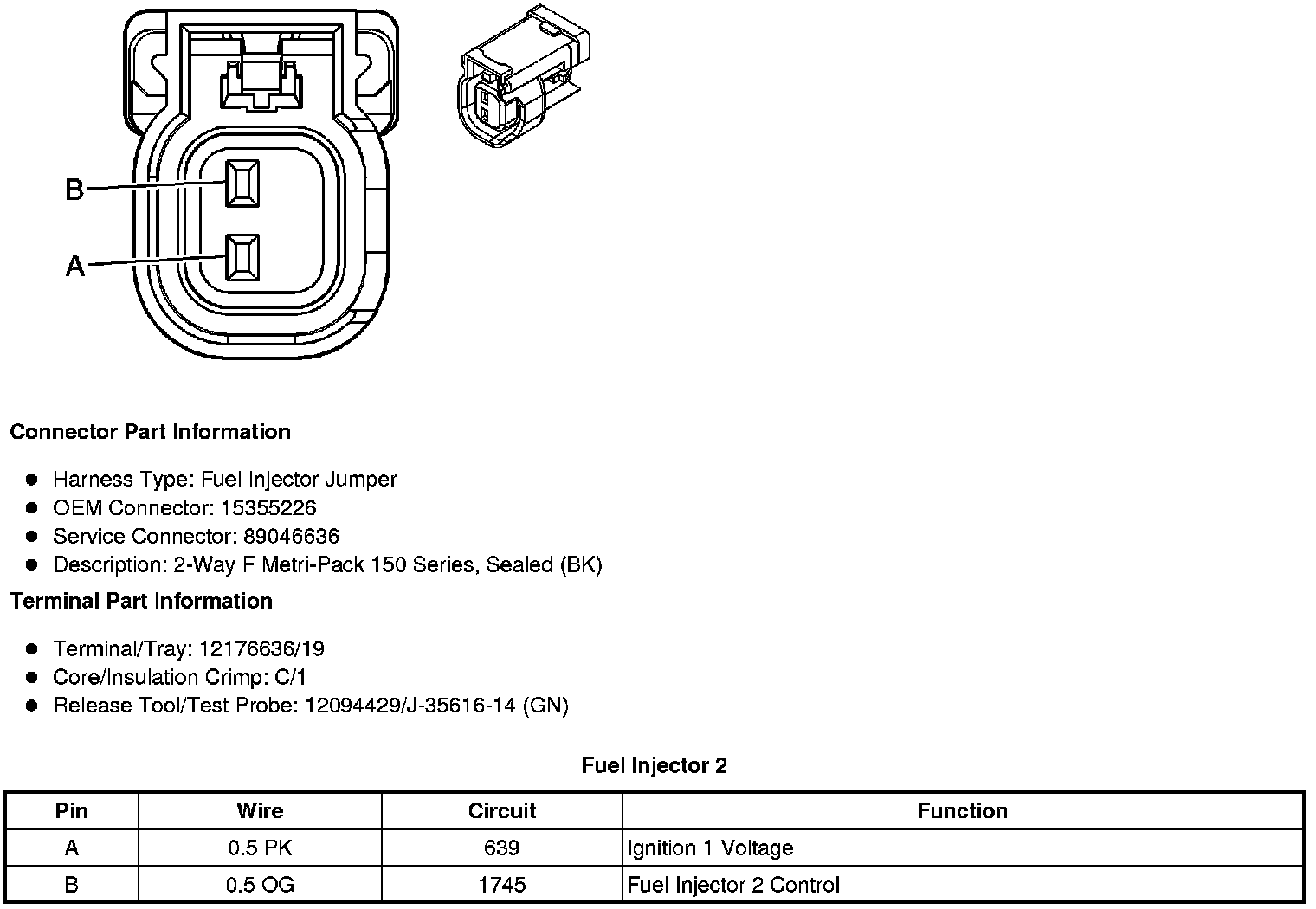

Fuel Injector 2

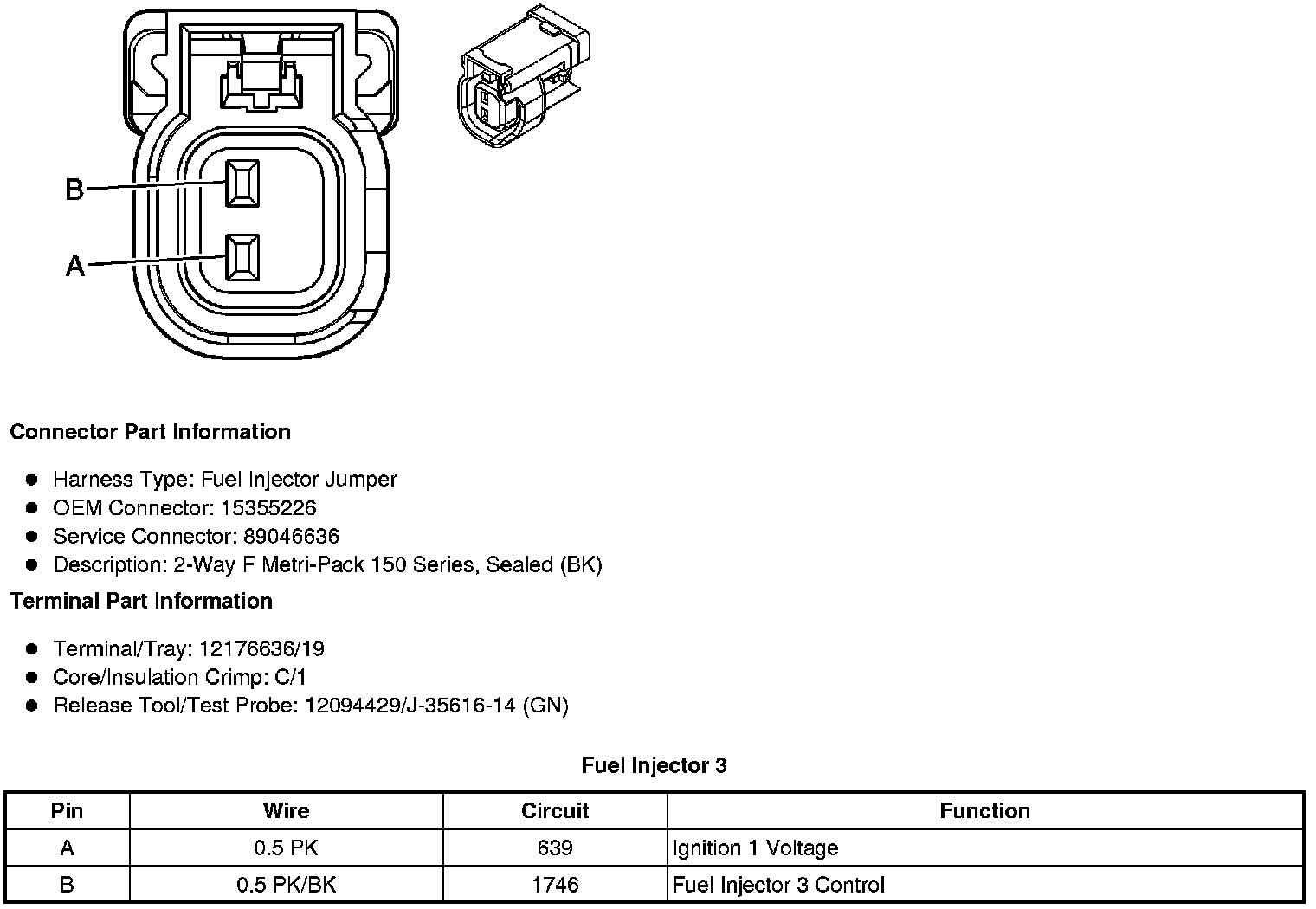

Fuel Injector 3

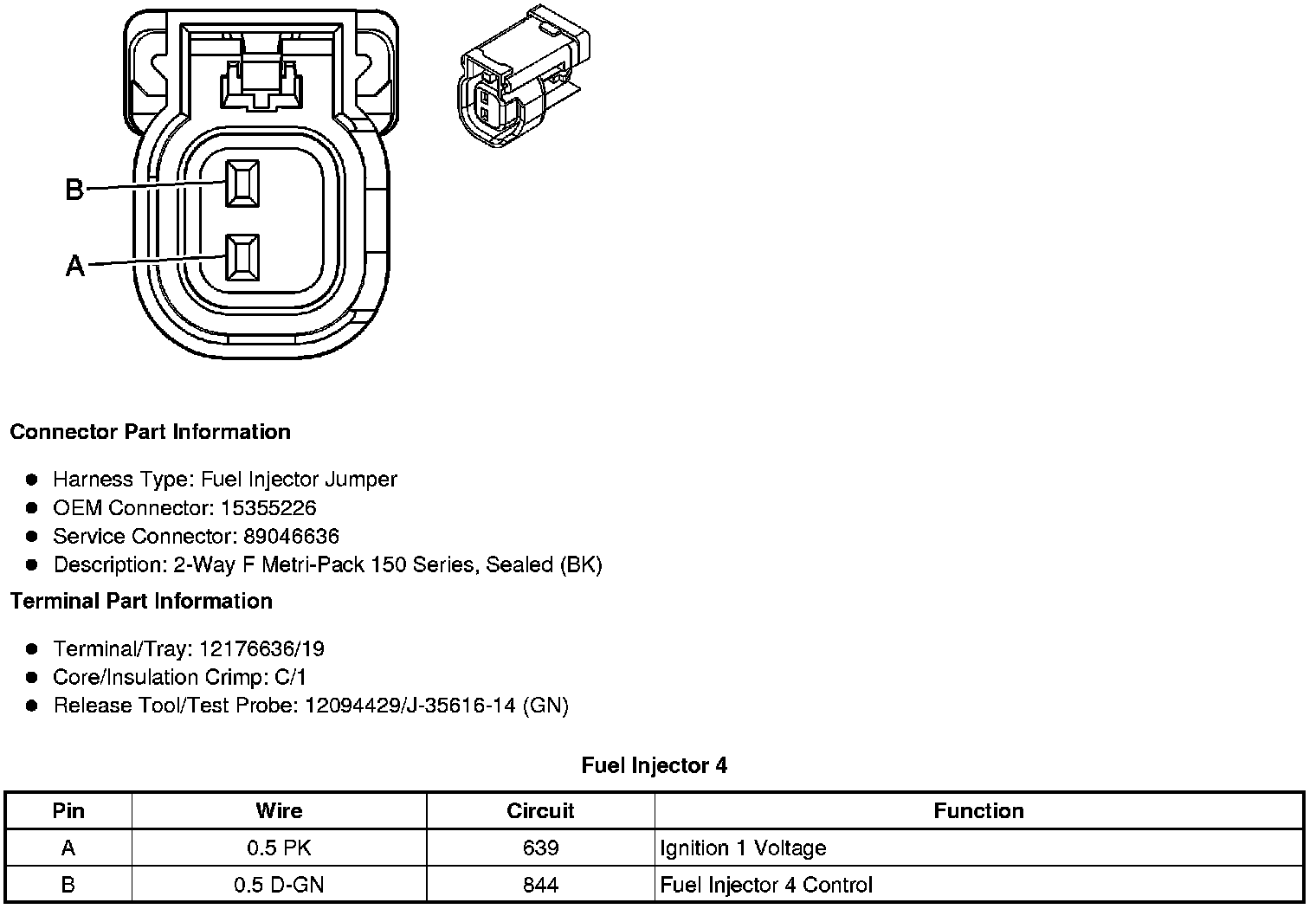

Fuel Injector 4





Fuel Injector 5





Fuel Injector 6
