Chevrolet
>>
2011
>>
HHR LS, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communication System Wiring Schematics
>>
Power, Ground, and Low Speed GMLAN
Power, Ground, and Low Speed GMLAN

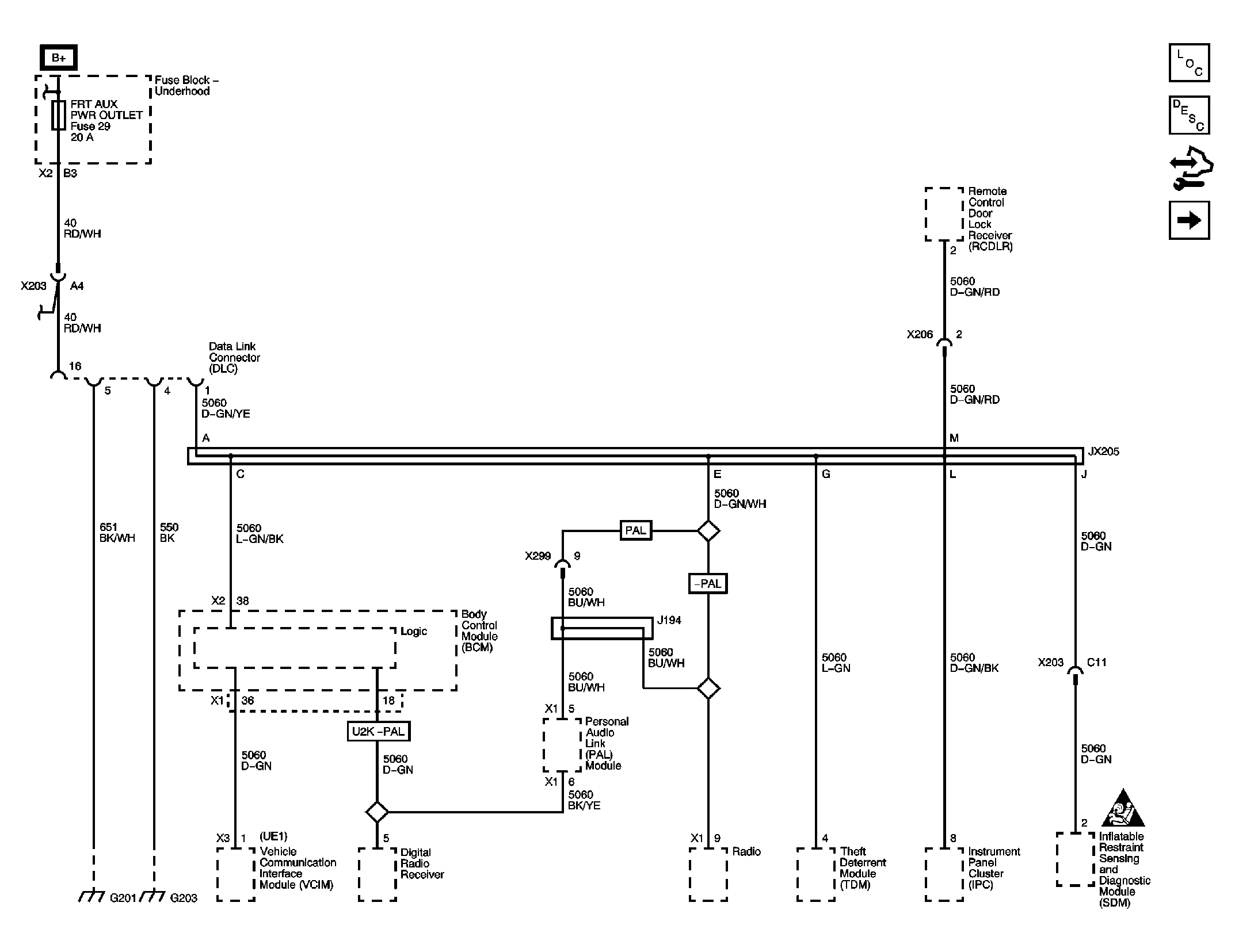

Fig 1: Power, Ground, and Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
