Seat Occupant Sensor




Component Connector End Views

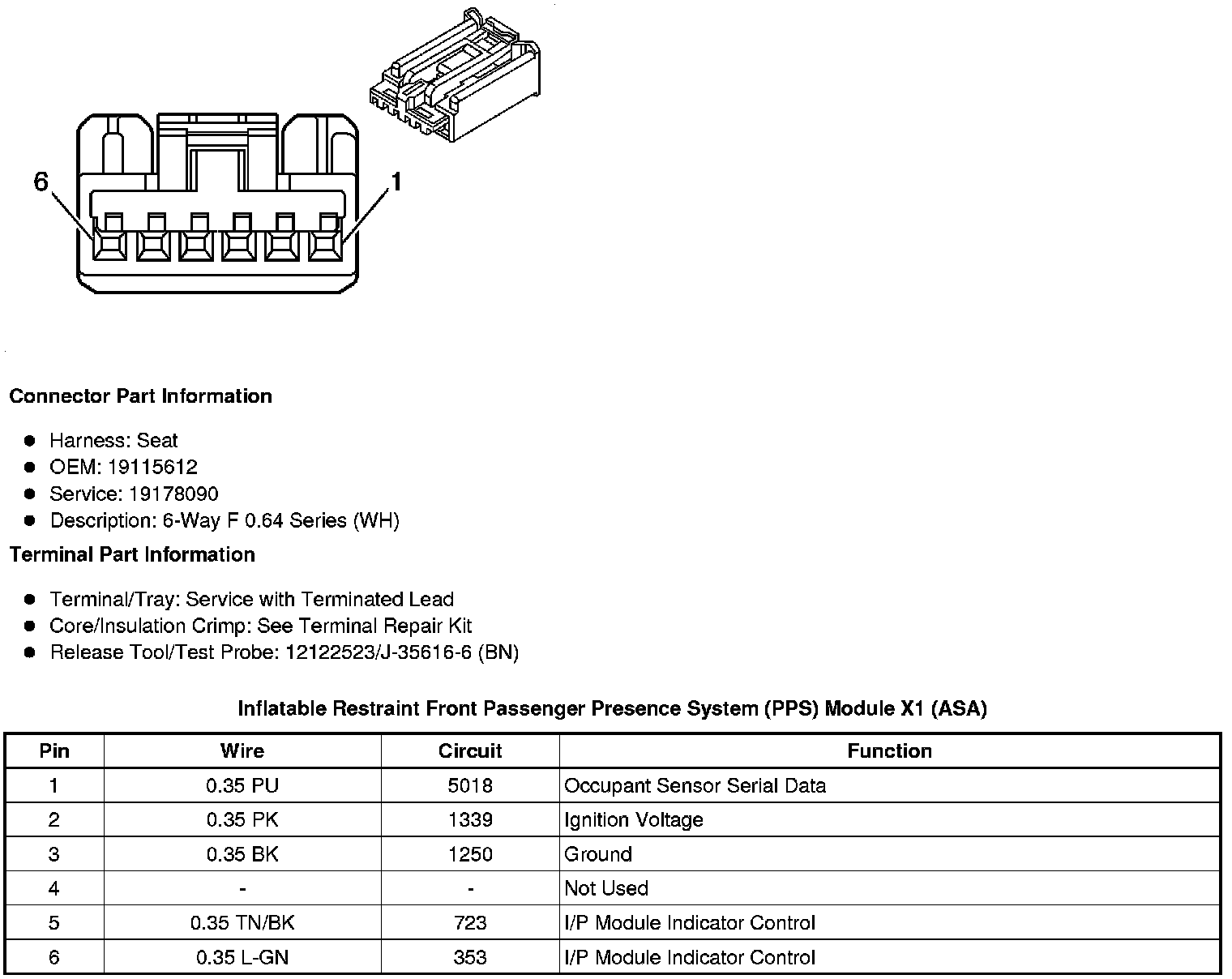

Inflatable Restraint Front Passenger Presence System (PPS) Module X1 (ASA)

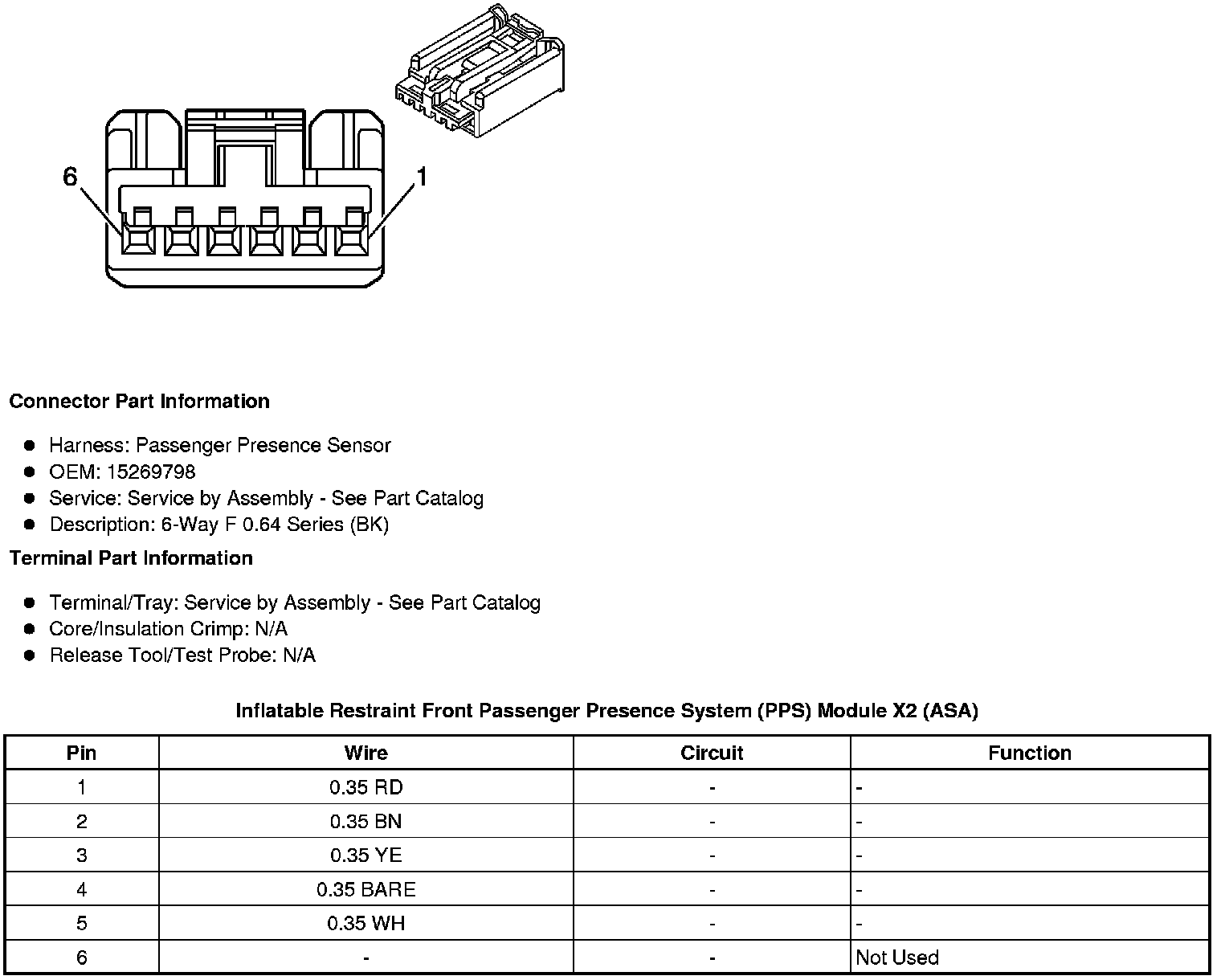

Inflatable Restraint Front Passenger Presence System (PPS) Module X2 (ASA)

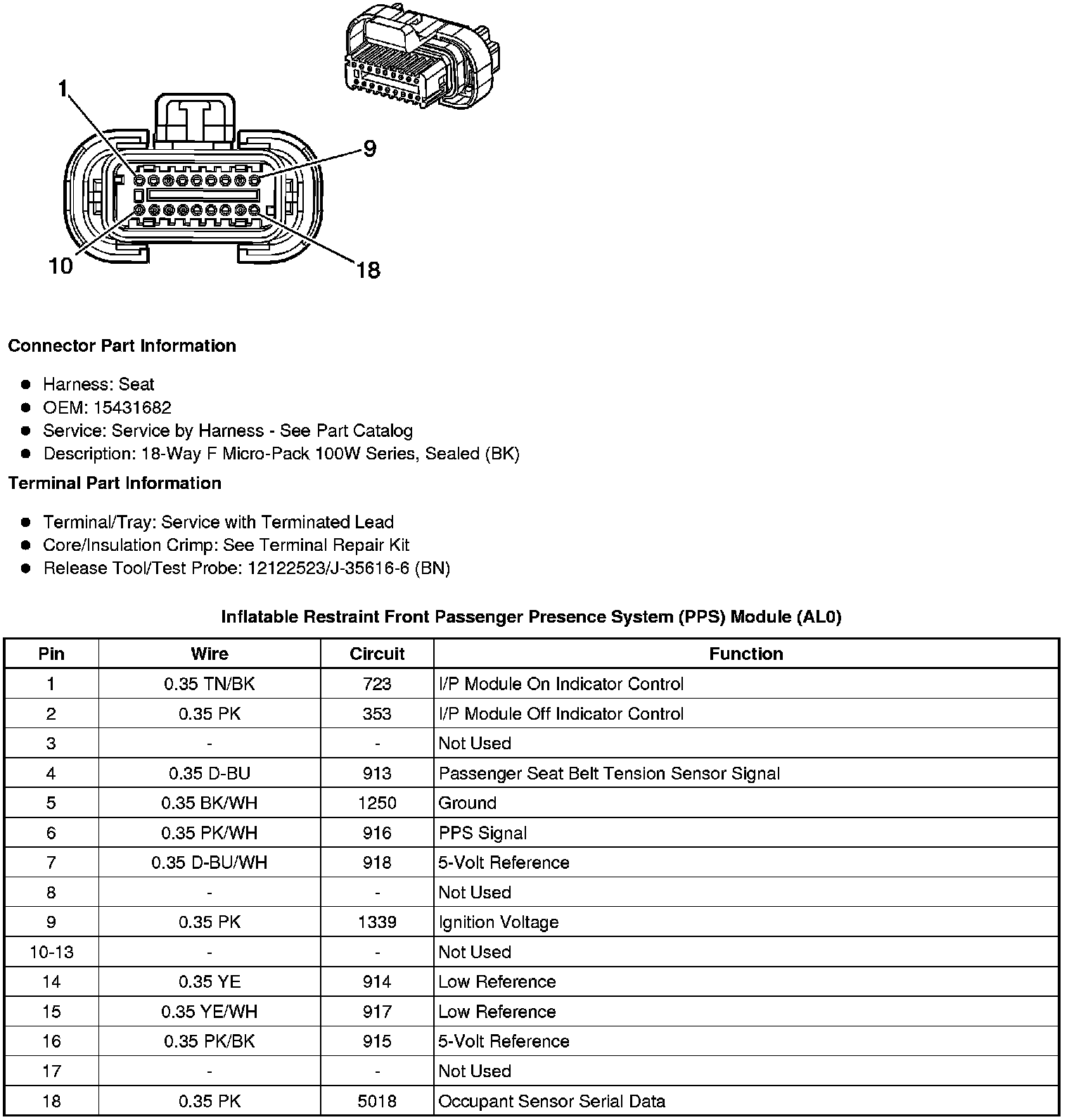

Inflatable Restraint Front Passenger Presence System (PPS) Module (AL0)

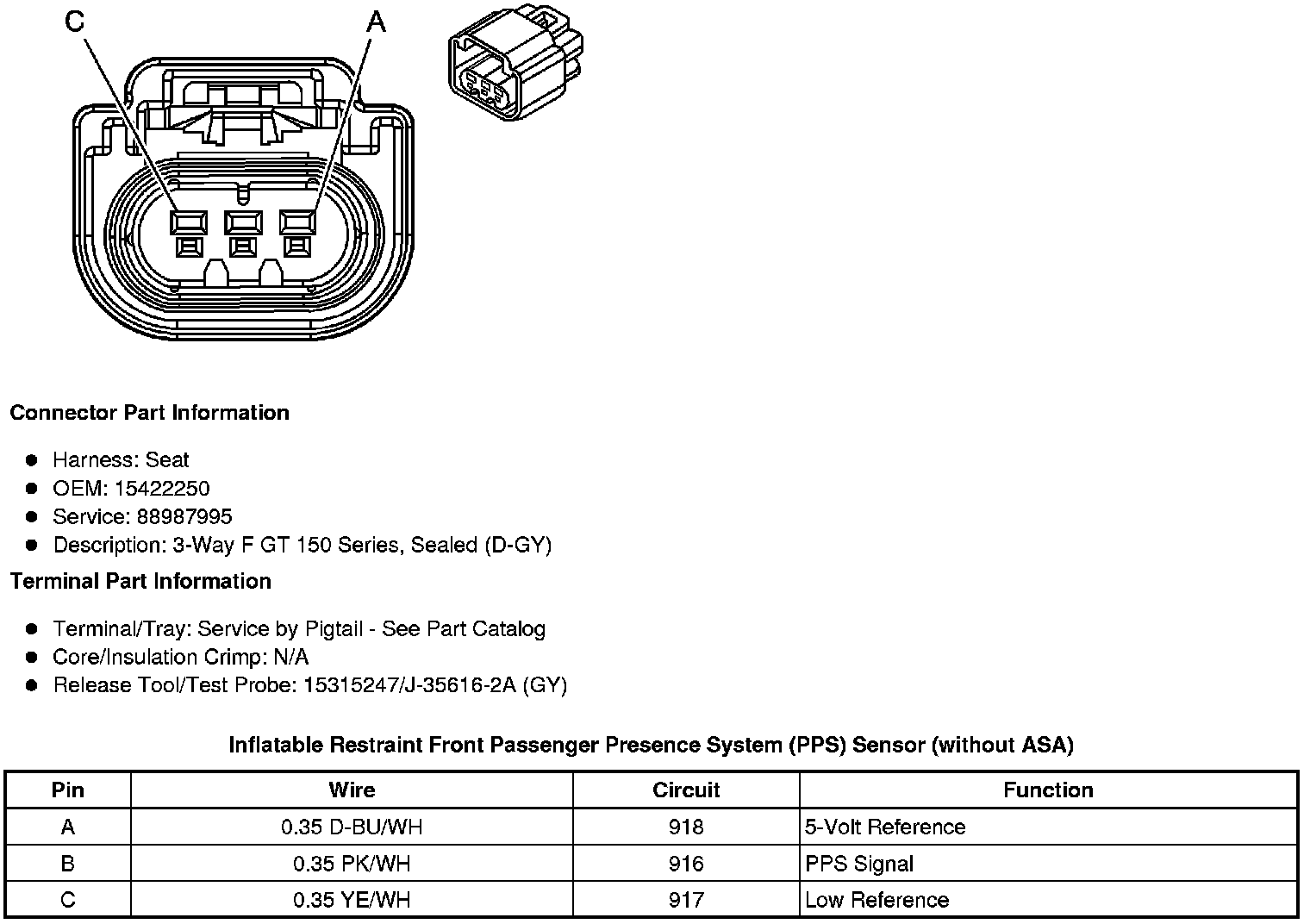

Inflatable Restraint Front Passenger Presence System (PPS) Sensor (without ASA)
