Power Seat Switch




Component Connector End Views

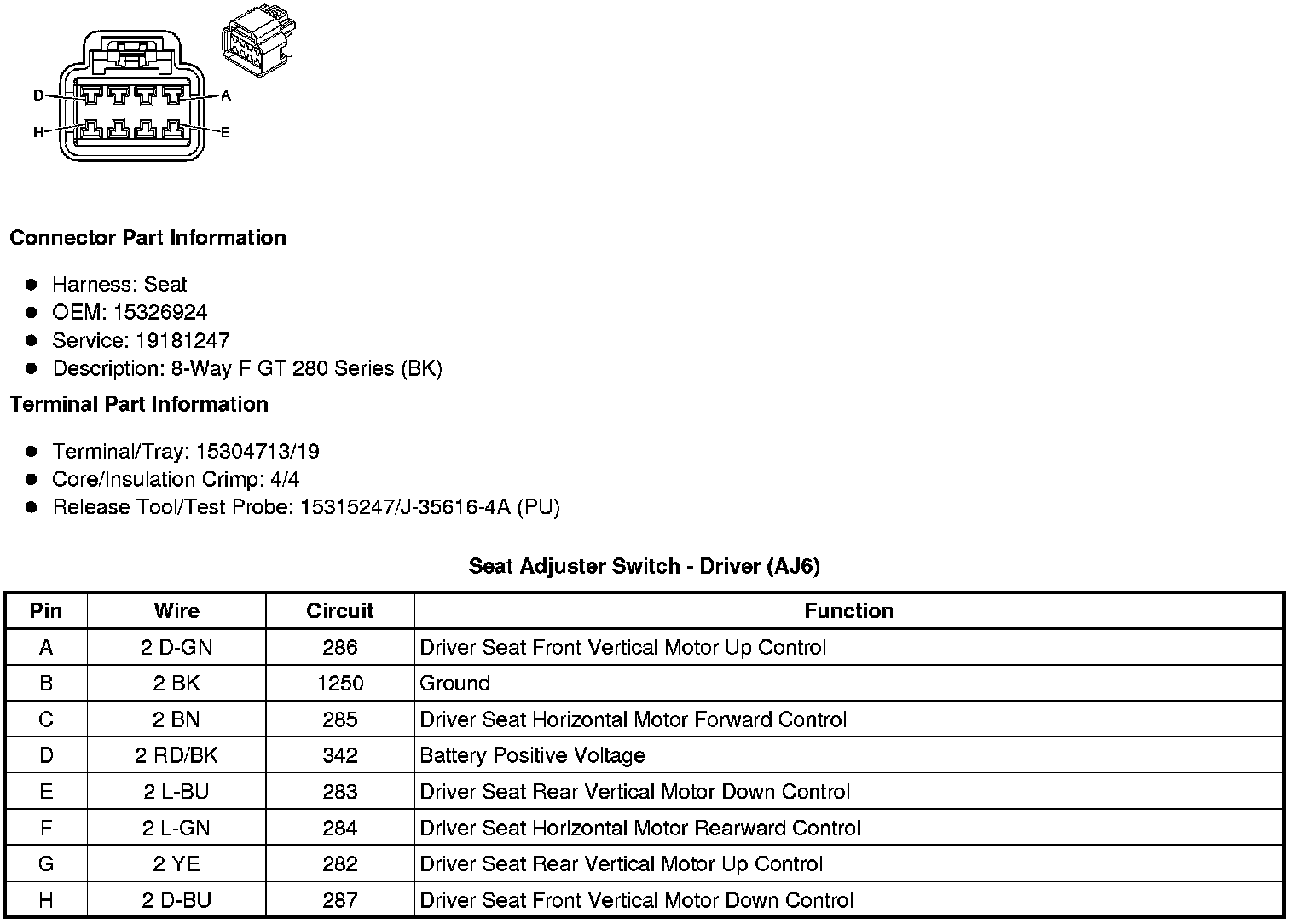

Seat Adjuster Switch - Driver (AJ6)

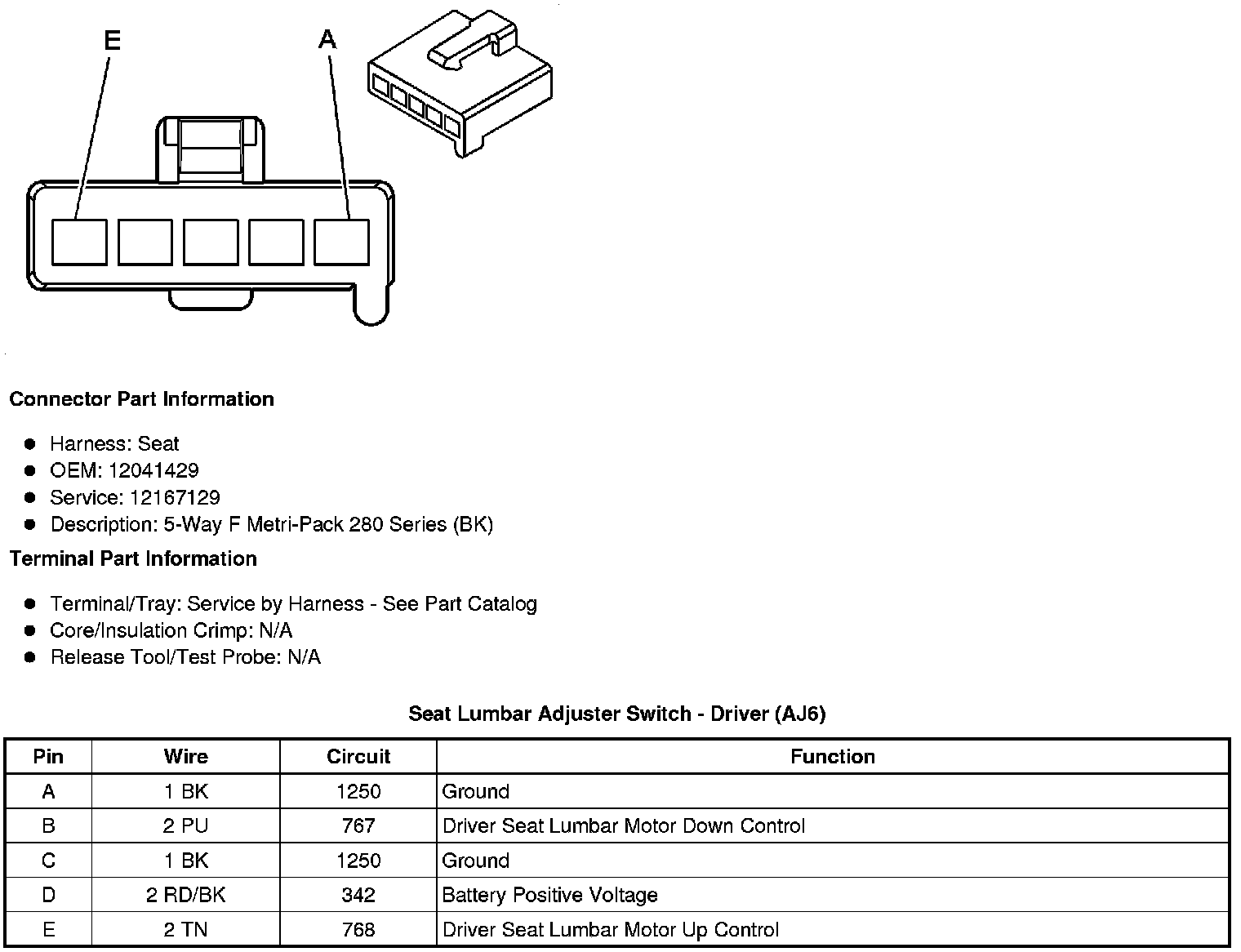

Seat Lumbar Adjuster Switch - Driver (AJ6)
