Home >> Chevrolet >> 2011 >> HHR L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Pump

Fuel Pump

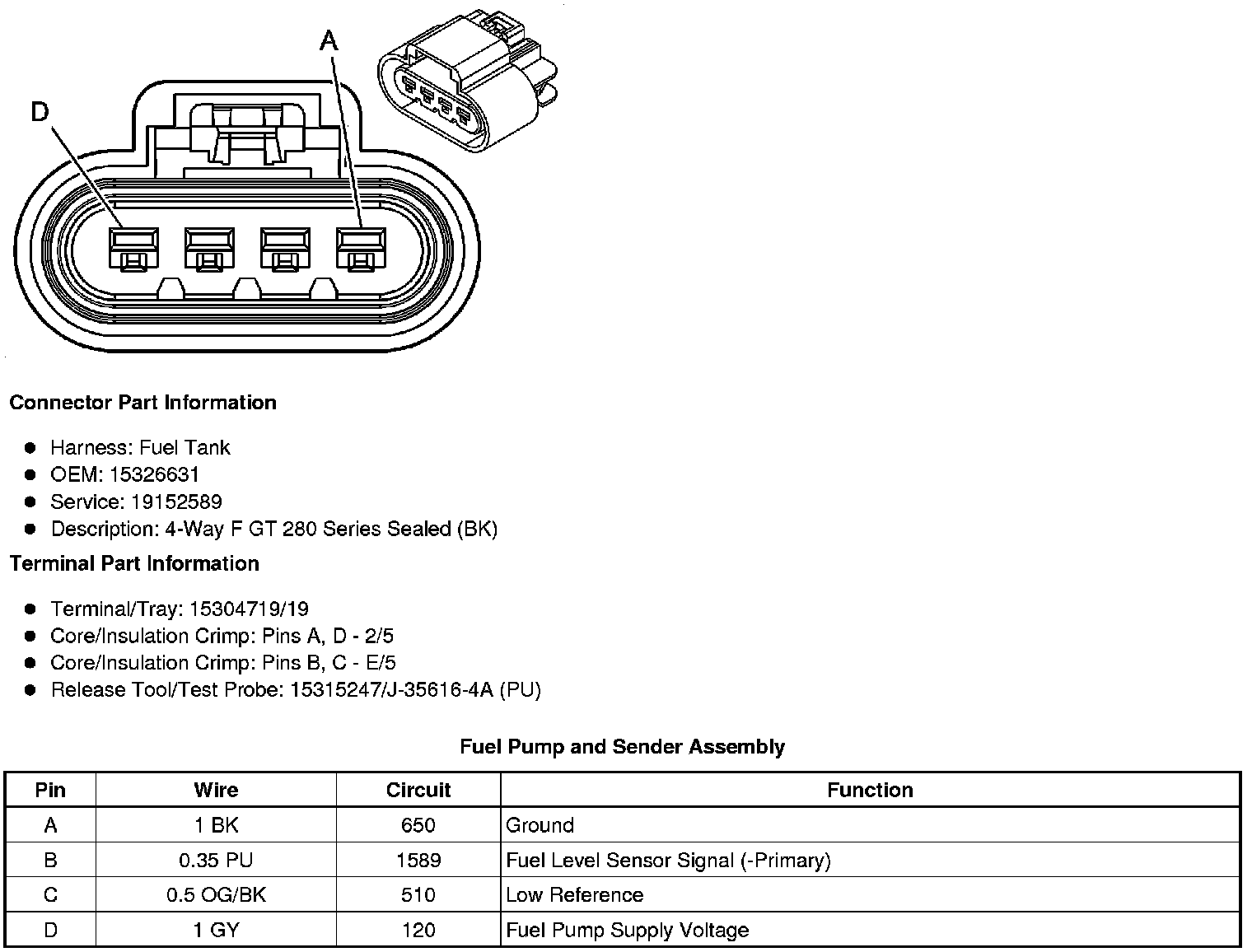

Component Connector End Views

Fuel Pump and Sender Assembly
