Camshaft Position Sensor
Camshaft Position Sensor
Component Connector End Views

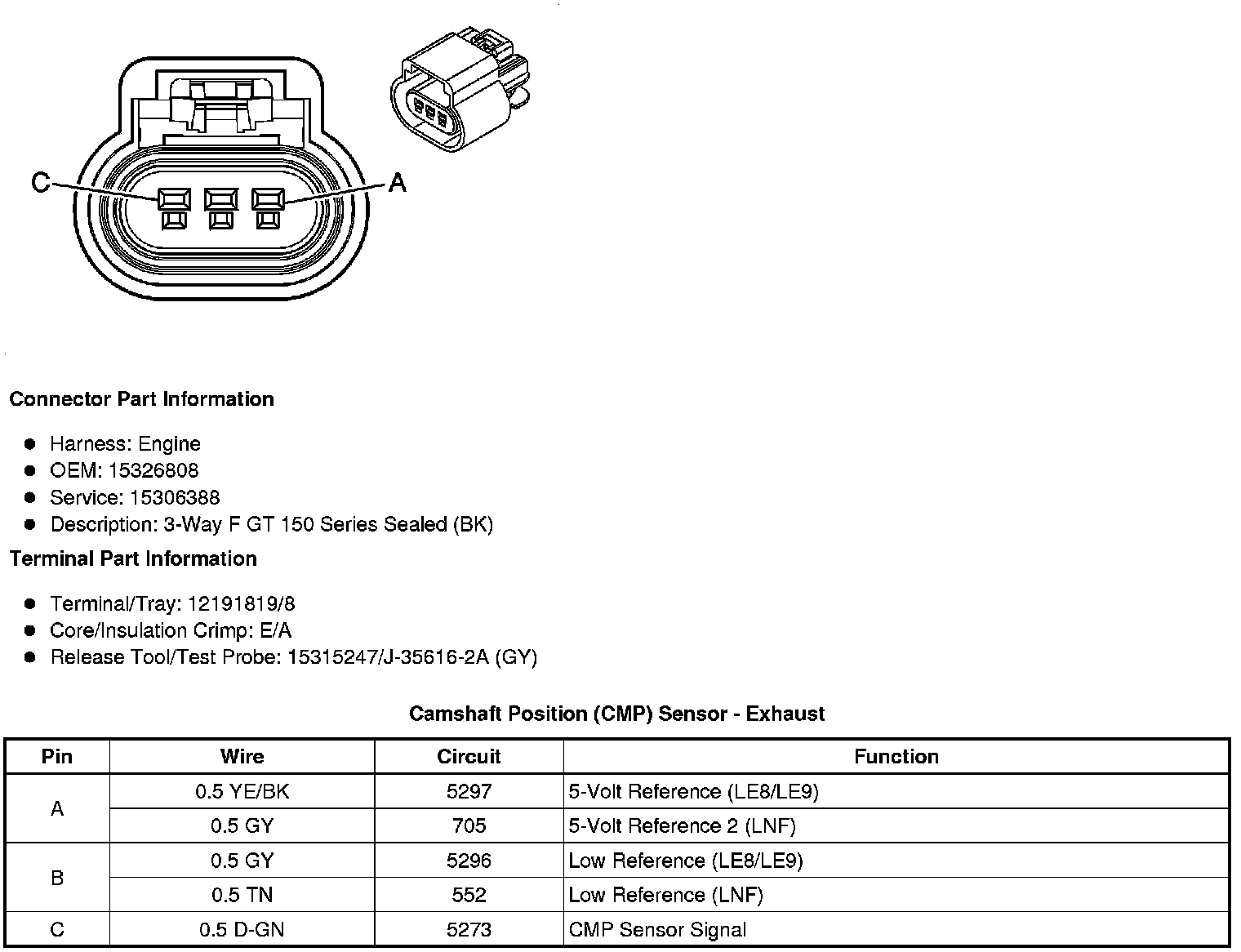

Camshaft Position (CMP) Sensor - Exhaust

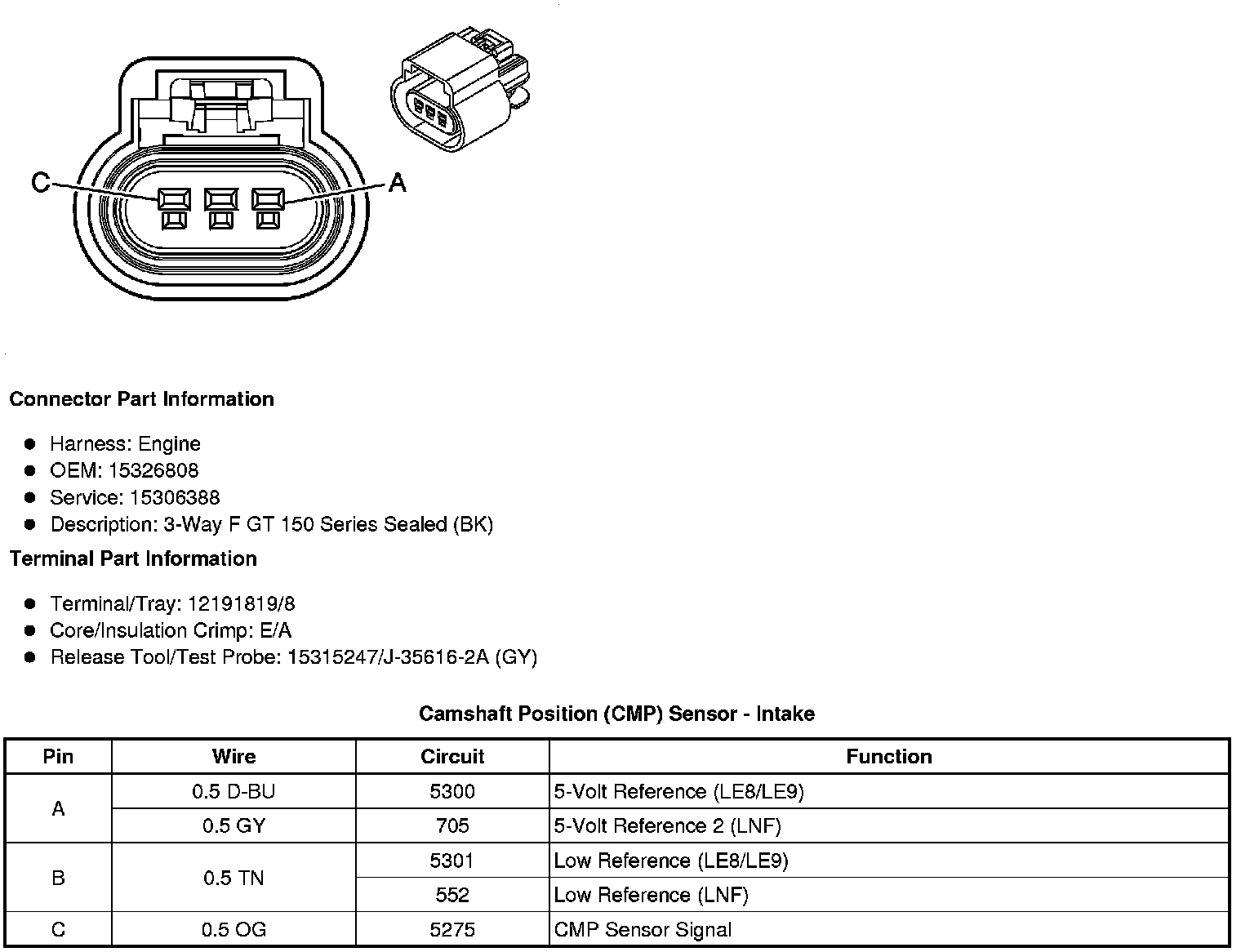

Camshaft Position (CMP) Sensor - Intake
