Passenger Door Components

Door Component Views

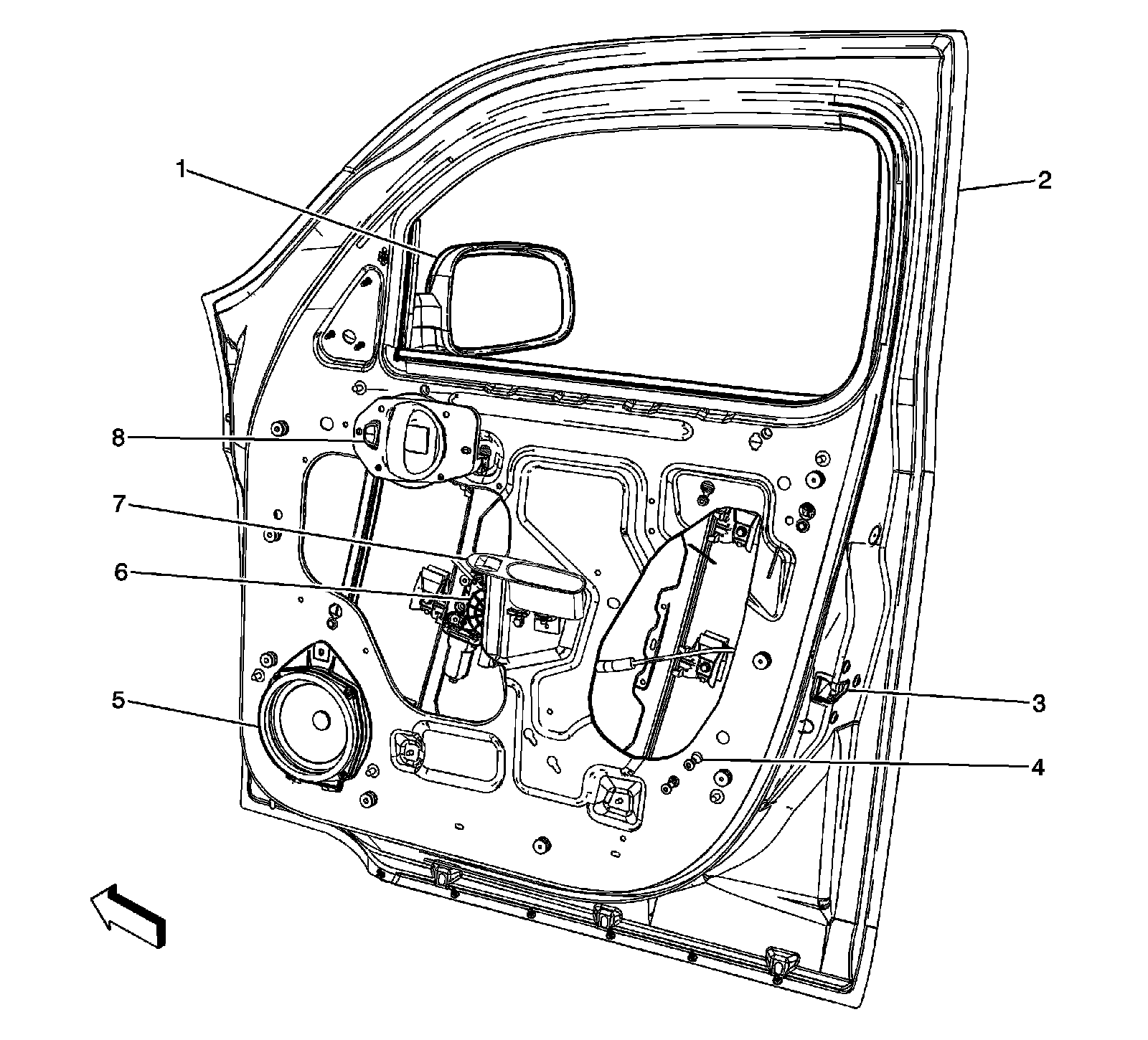

Passenger Door Components




1 - Outside Rearview Mirror Motor - Passenger
2 - Door Frame
3 - Door Latch - Passenger
4 - Inflatable Restraint Side Impact Sensor (SIS) Right (ASF)
5 - Speaker - Right Front
6 - Window Motor - Passenger
7 - Window Switch - Passenger
8 - Door Lock Switch - Passenger
