Home >> Chevrolet >> 2011 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows

Windows




Moveable Window Schematics

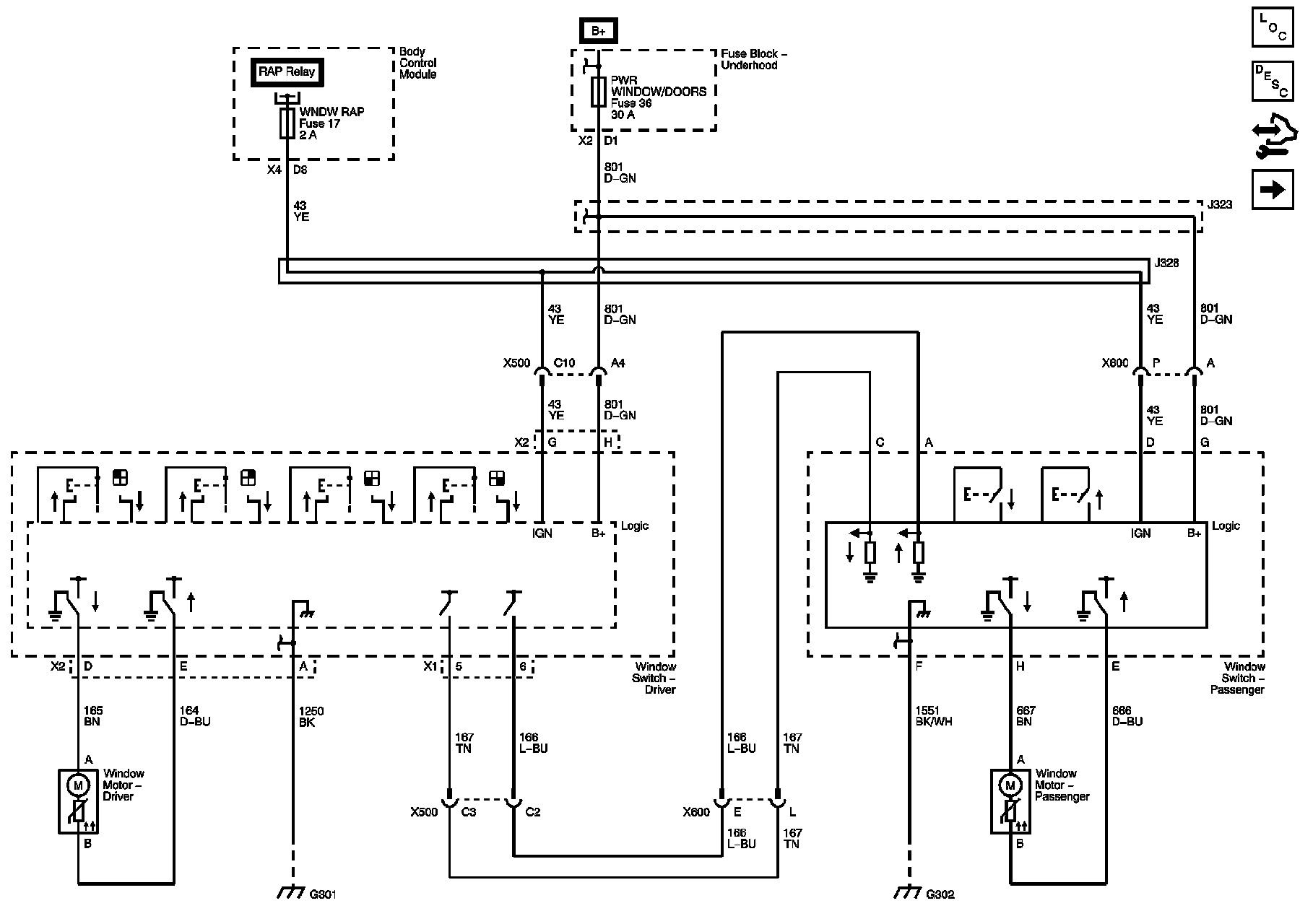

Front

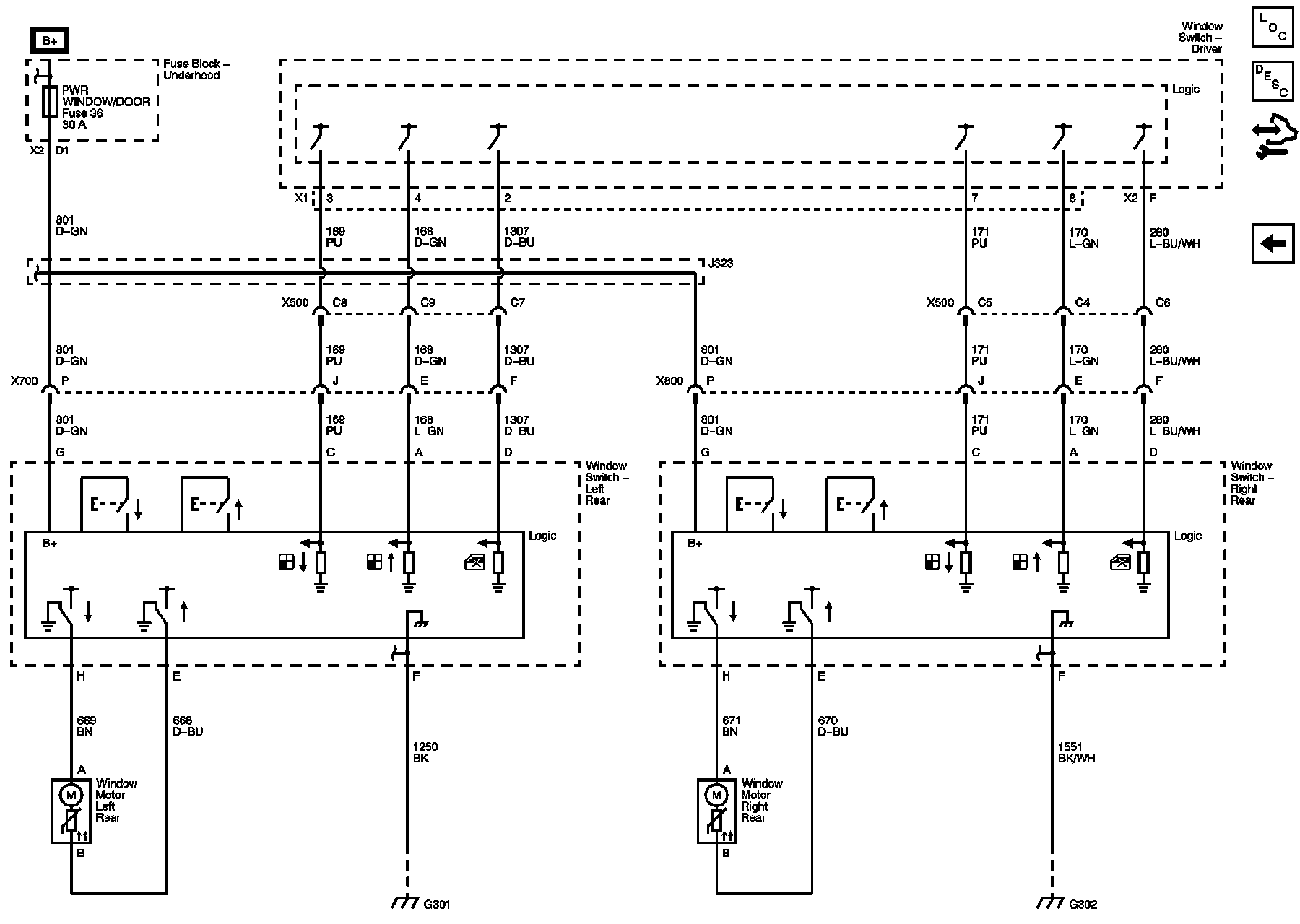

Rear
