Starter Motor




Component Connector End Views

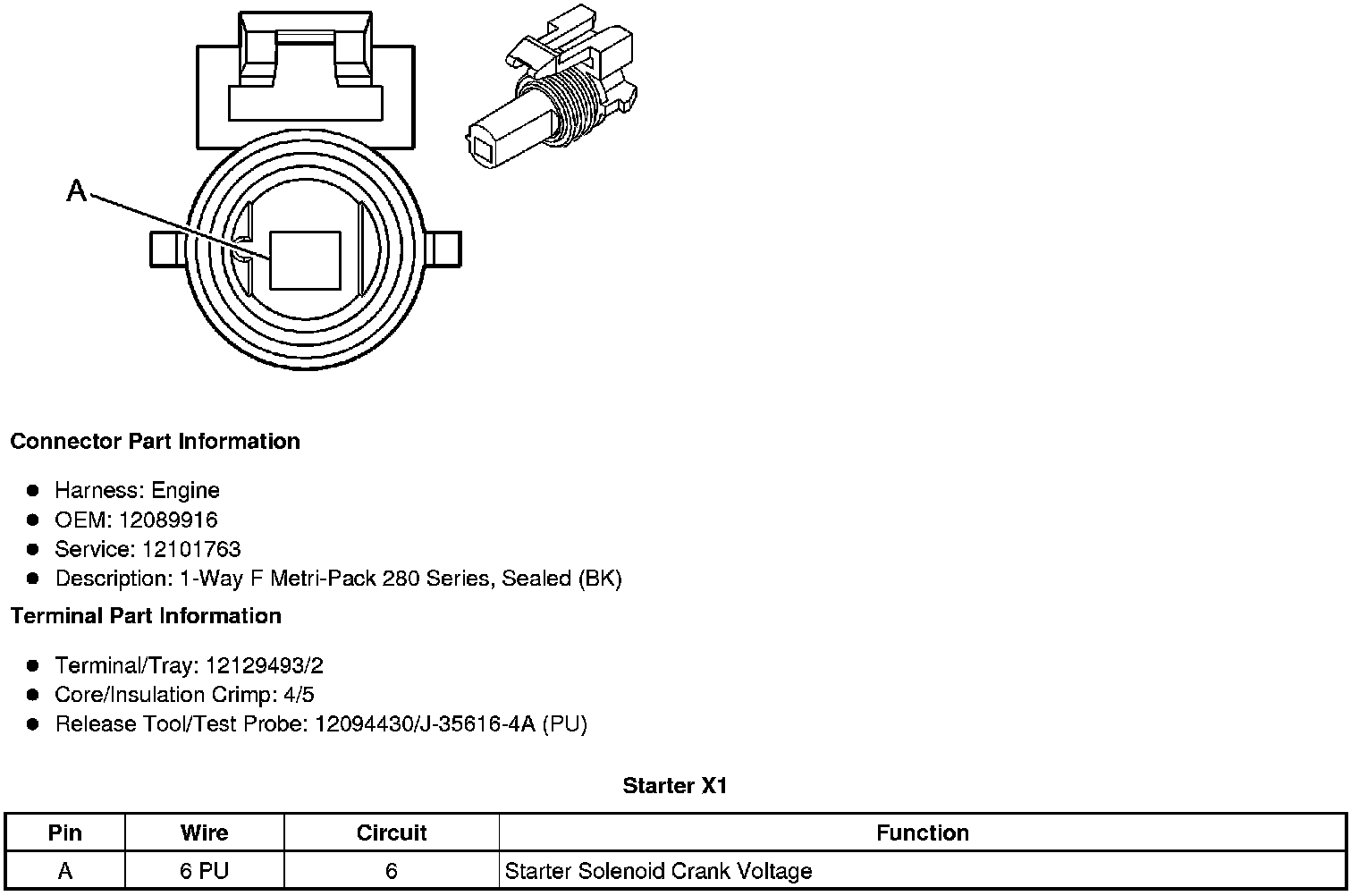

Starter X1






Starter X2 (to Fuseblock - Underhood - X5)










Starter X2 (To Generator)
