Marker Lamp




Component Connector End Views

Side Marker Lamp - Left Front

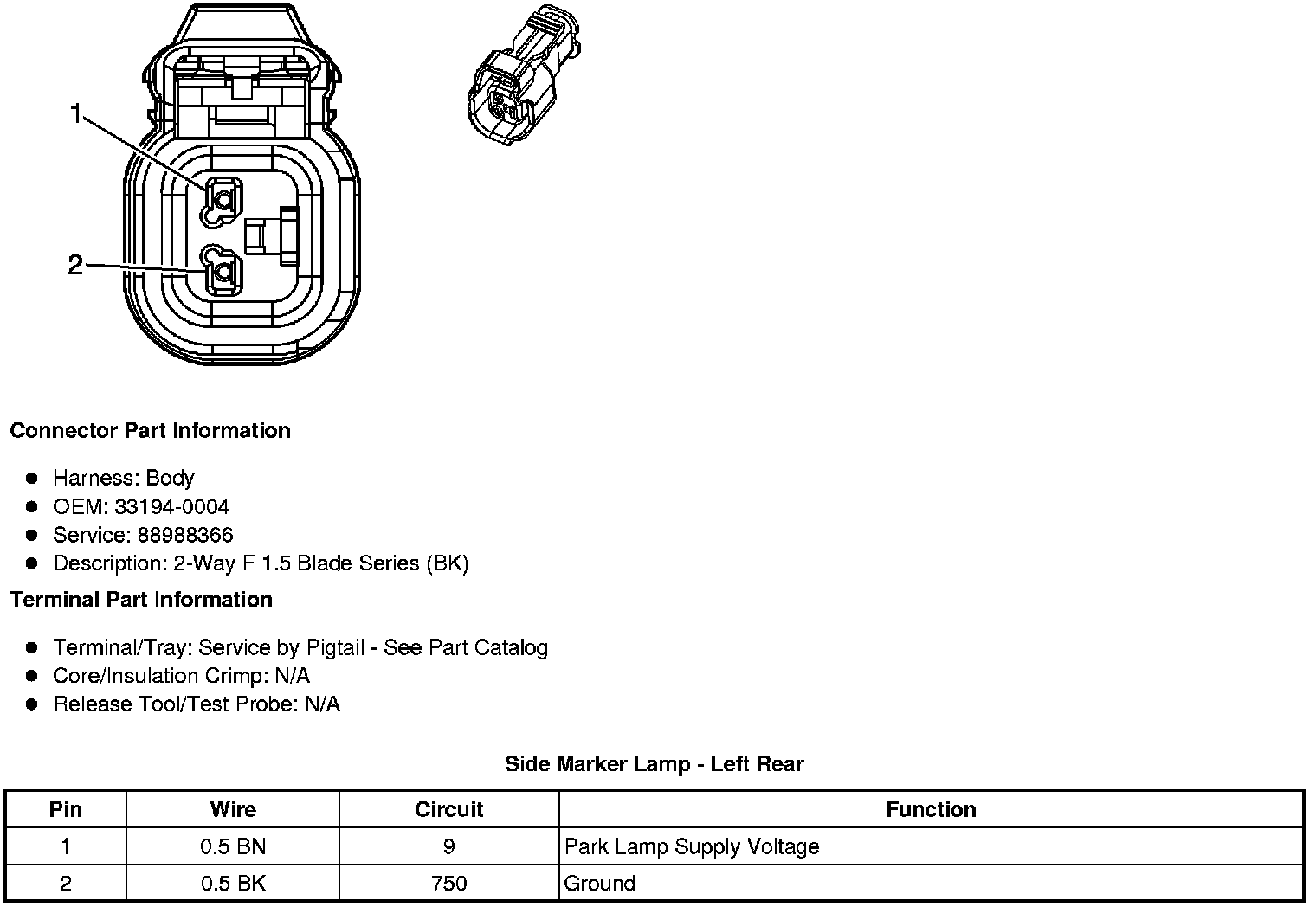

Side Marker Lamp - Left Rear






Side Marker Lamp - Right Front

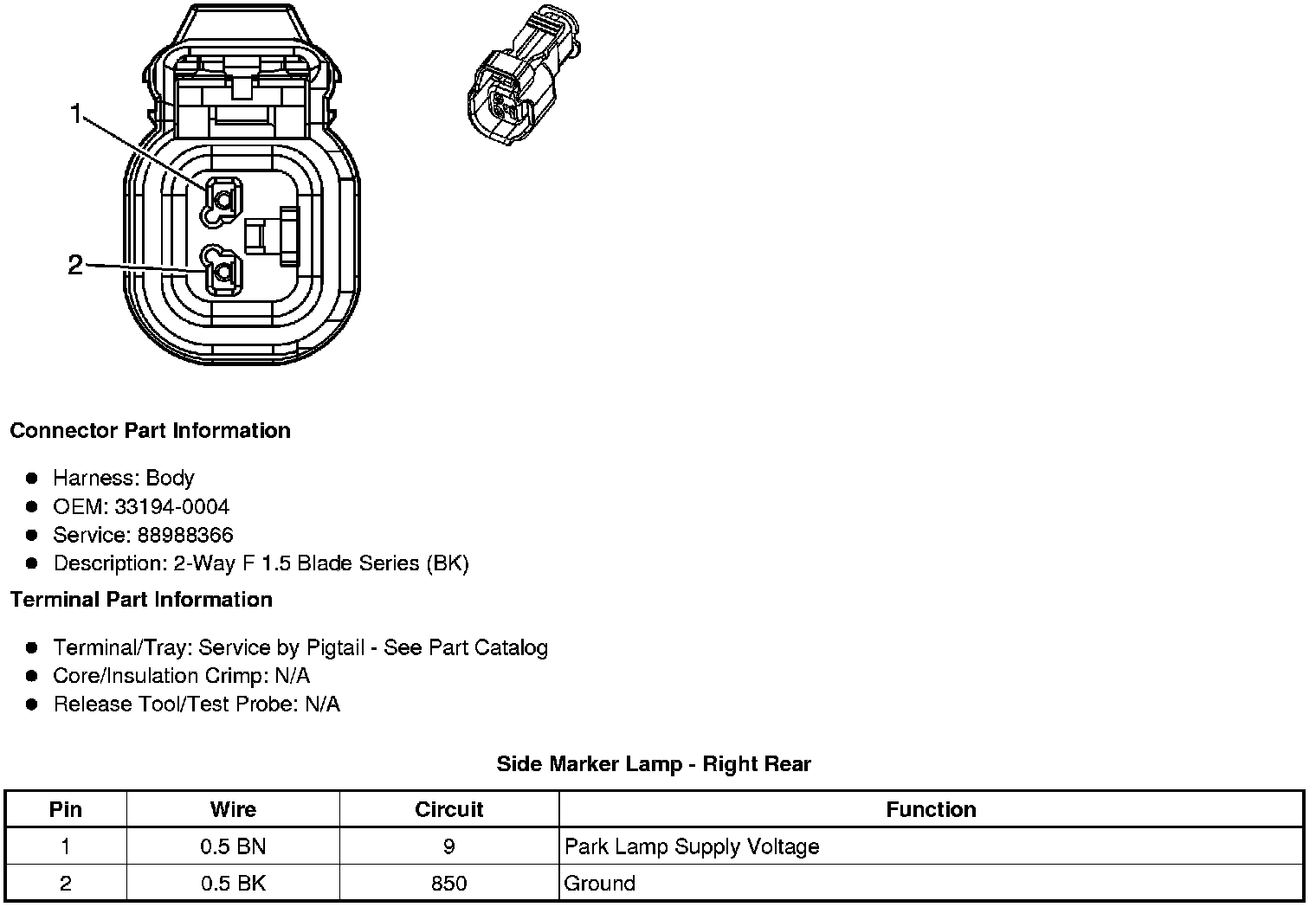

Side Marker Lamp - Right Rear
