Front Door Latch




Component Connector End Views

Door Latch - Driver






Door Latch - Left Rear (without Panel Van)

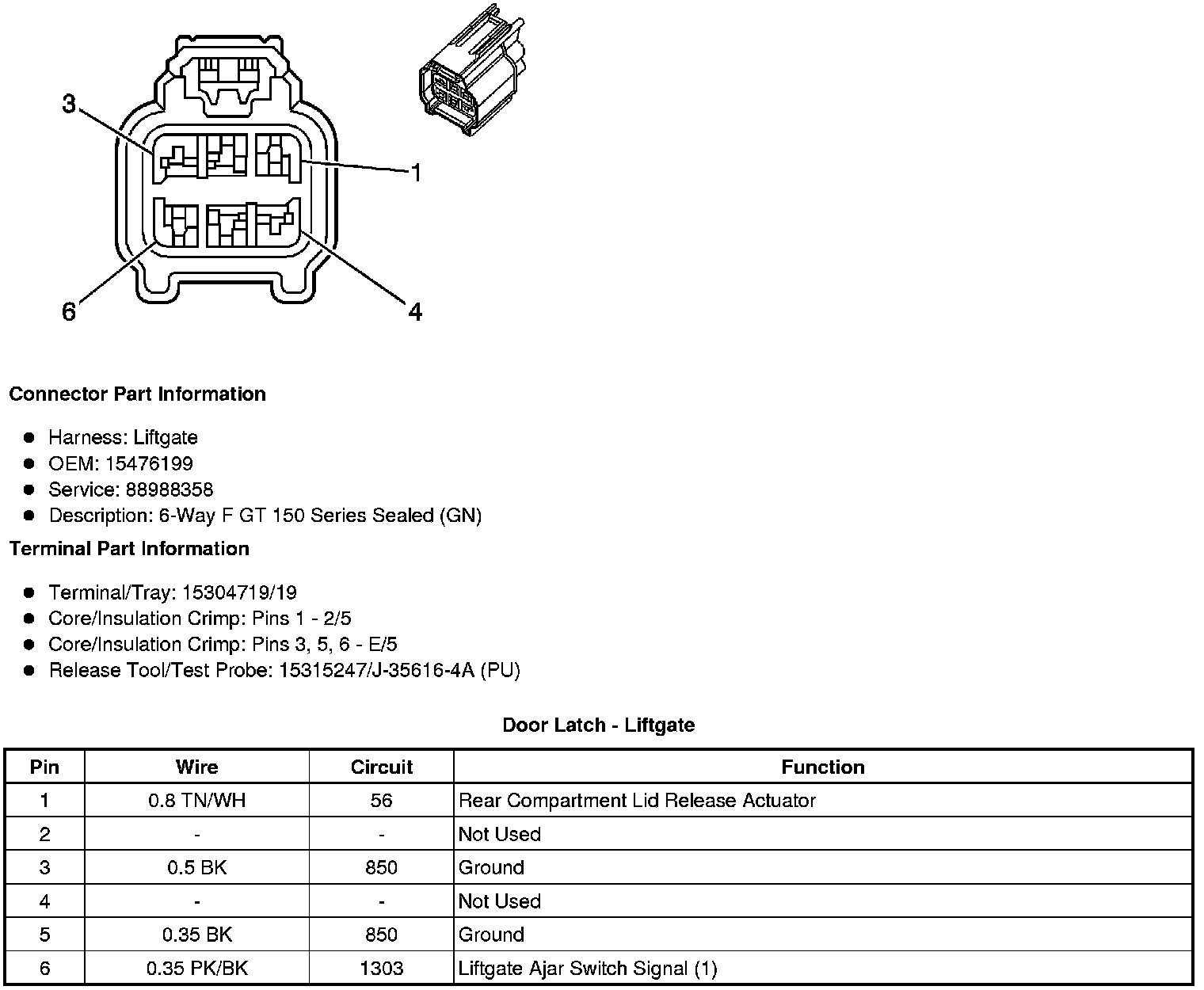

Door Latch - Liftgate






Door Latch - Passenger






Door Latch - Right Rear (without Panel Van)
