Home
>>
Chevrolet
>>
2011
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>

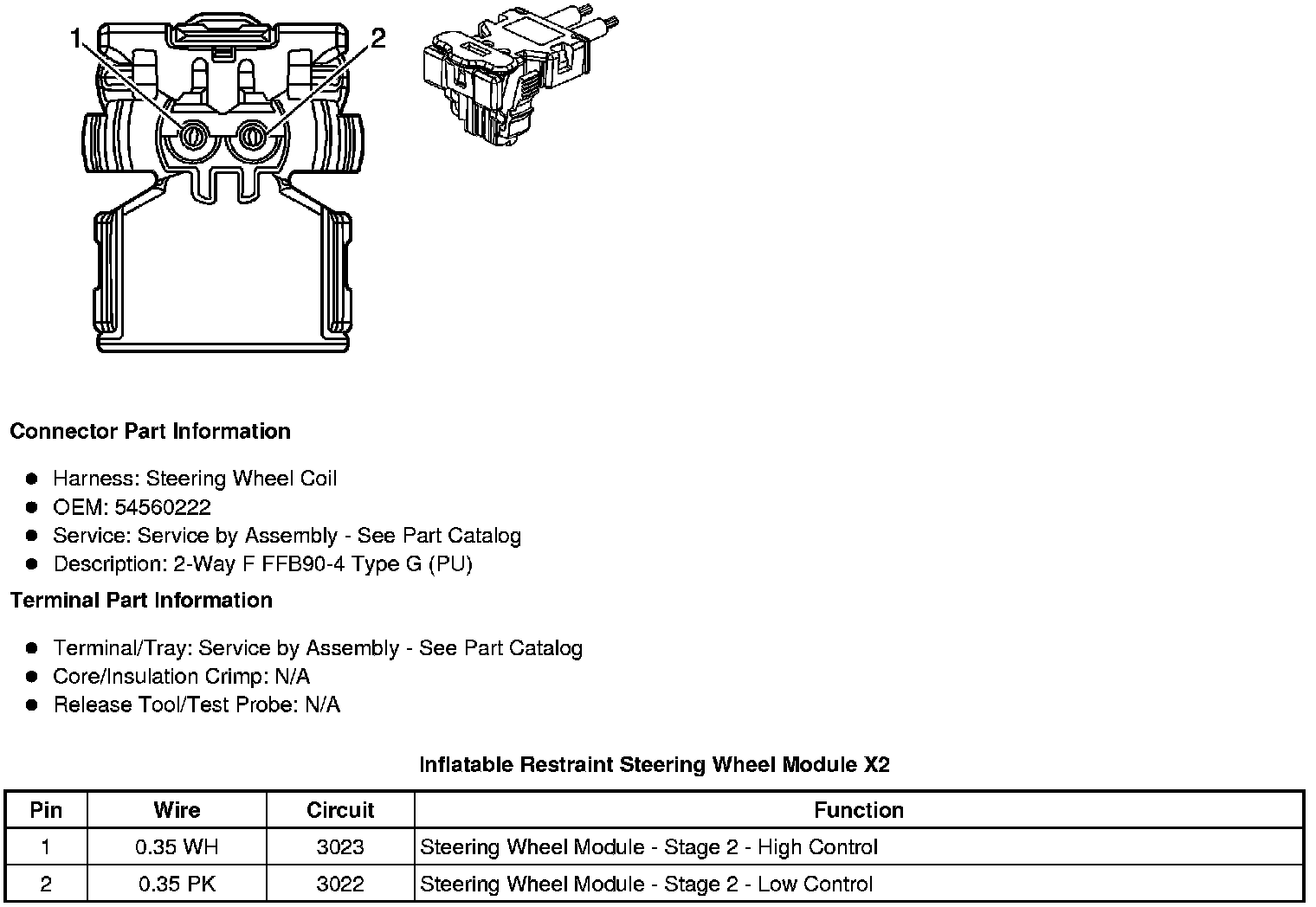

Inflatable Restraint Steering Wheel Module X2
Inflatable Restraint Steering Wheel Module X2
Component Connector End Views
Inflatable Restraint Steering Wheel Module X2
