Diesel Emissions Fluid Control Module: Locations




Wheels/Vehicle Underbody Component Views

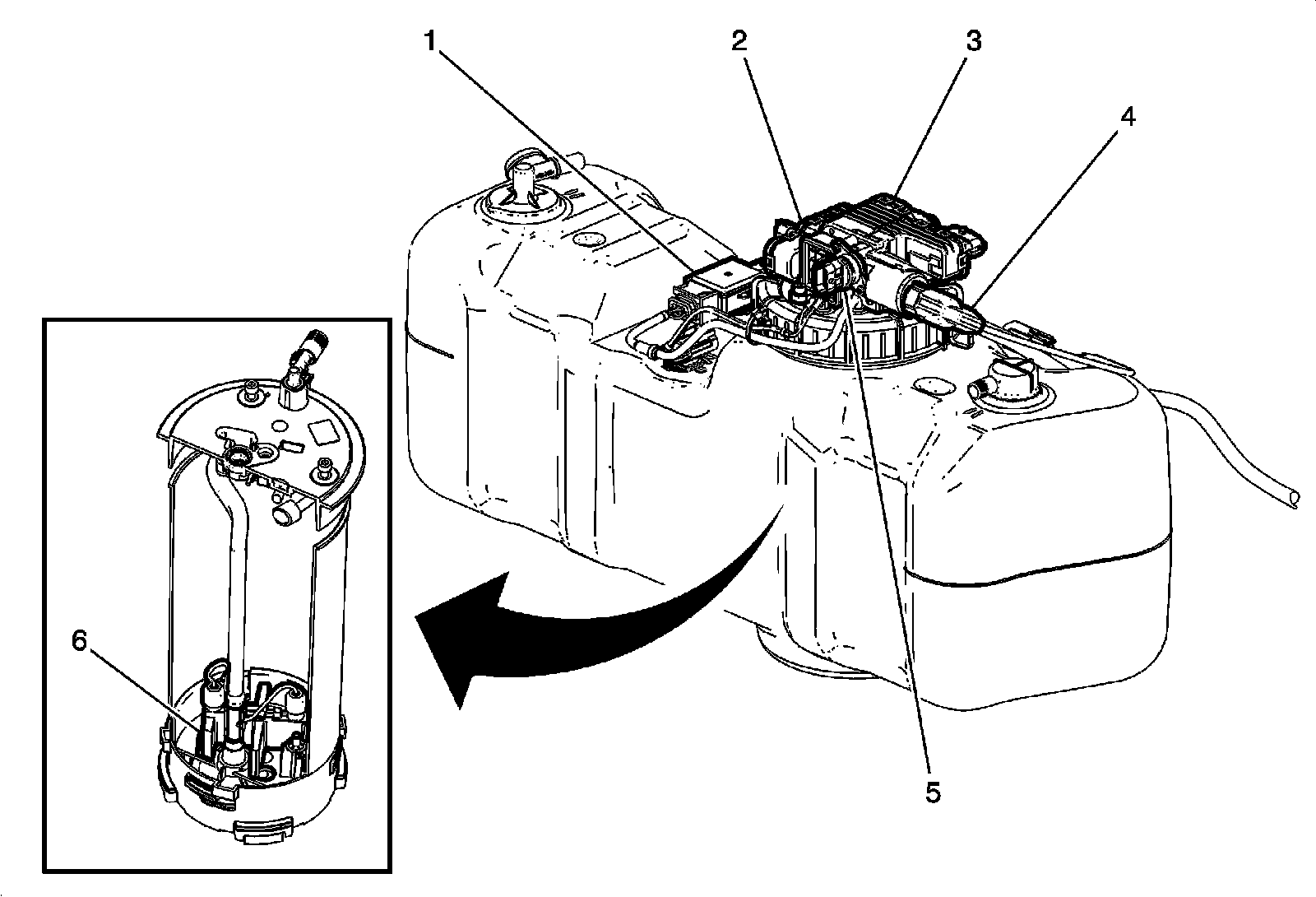

Reductant Tank Components (LGH)




1 - Reductant Sensor Module
2 - Reductant Purge Solenoid Valve
3 - Reductant Pump
4 - Reductant Line Heater
5 - Reductant Pressure Sensor
6 - Reductant Tank Heater
