Flex Plate

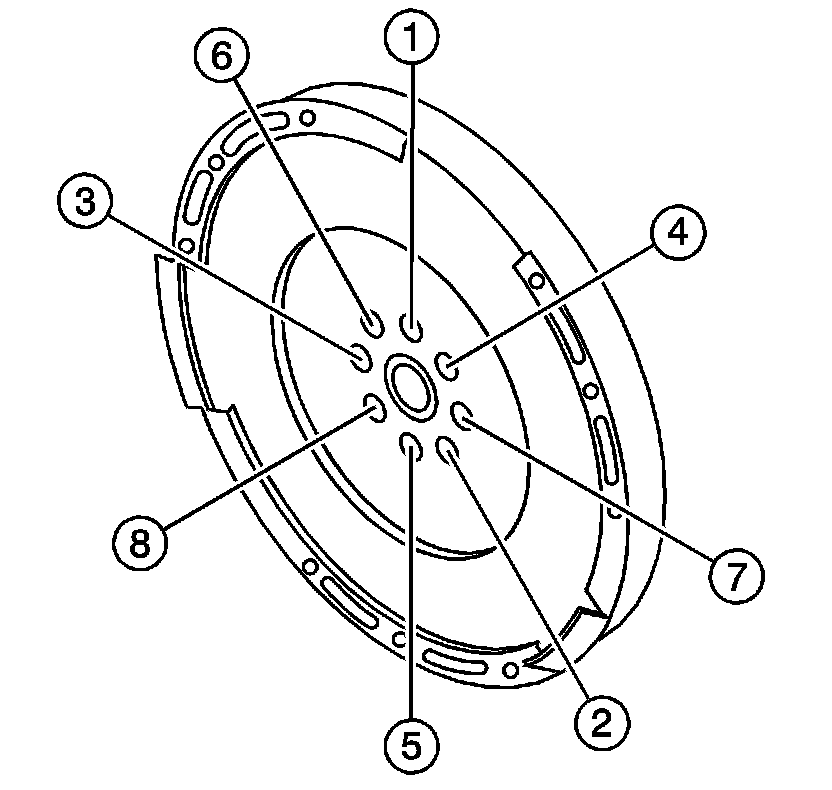

Flex plate





First pass 79 Nm (59 lb ft)
Second pass additional 60 degrees
Final pass additional 60 degrees
