Pressure Feedback Exhaust Sensor: Diagrams

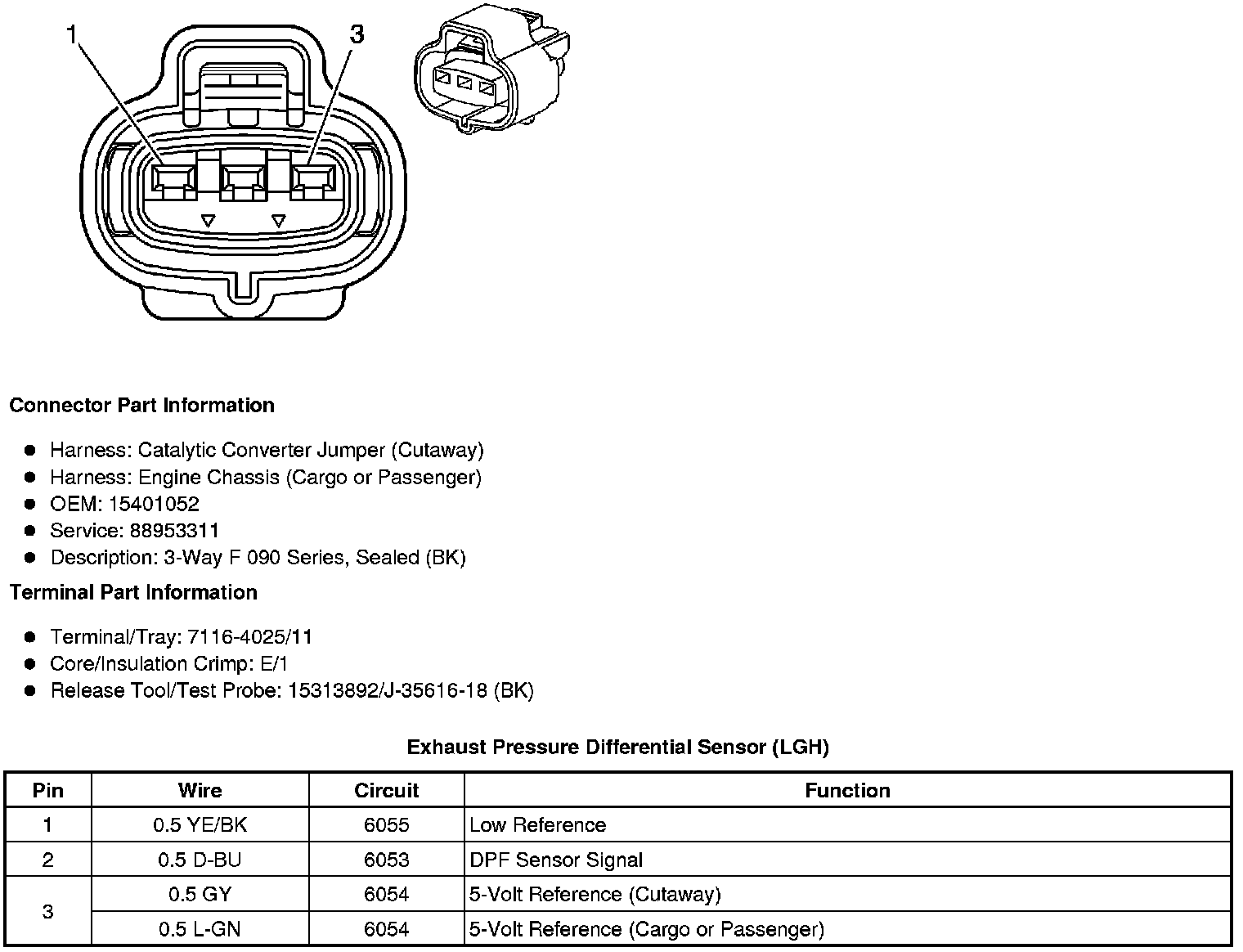

Component Connector End Views

Exhaust Pressure Differential Sensor (LGH)
