Fuel Tank Pressure Sensor: Diagrams

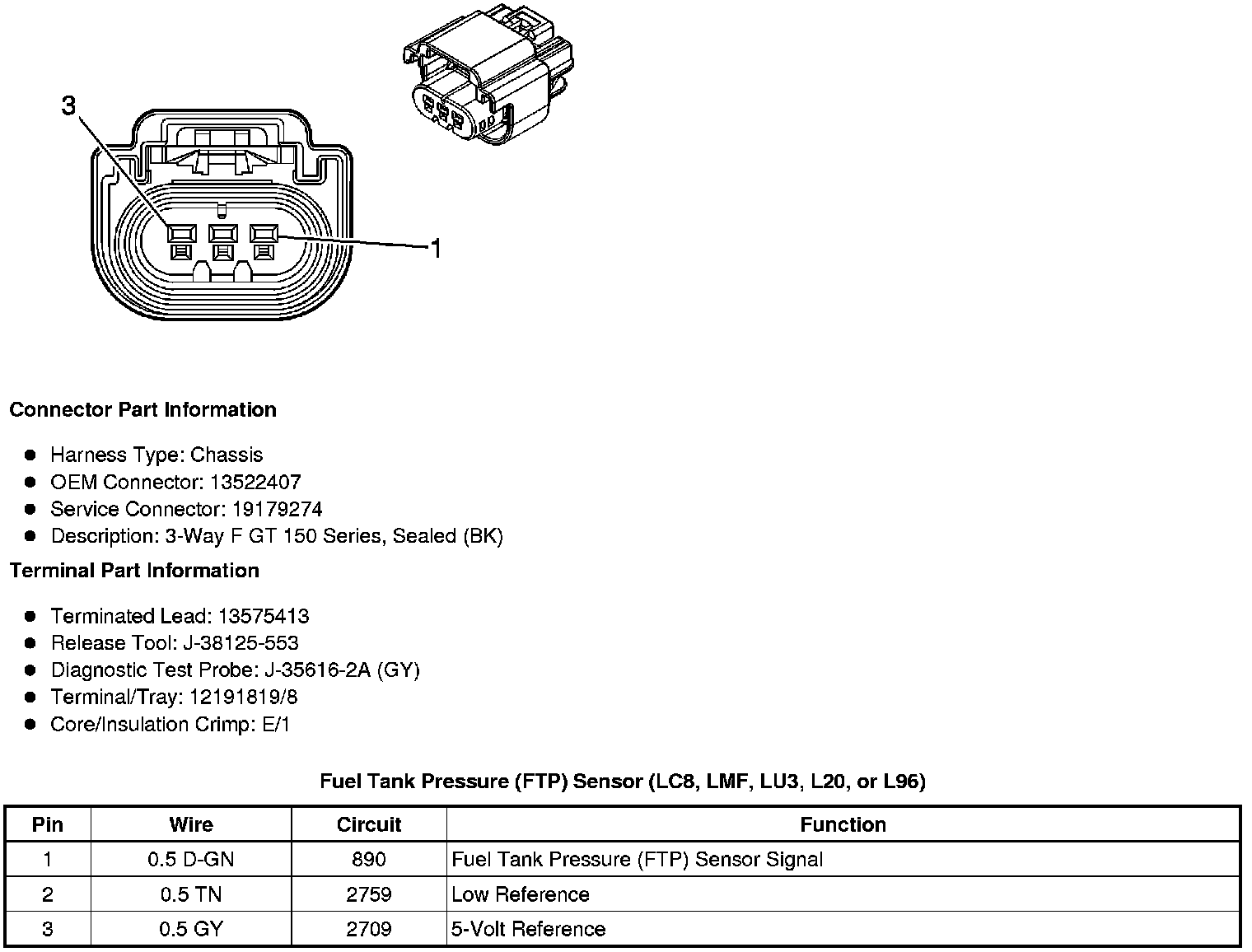

Component Connector End Views

Fuel Tank Pressure (FTP) Sensor (LC8, LMF, LU3, L20, or L96)
