Fuel Tank Pressure Sensor (CNG): Diagrams

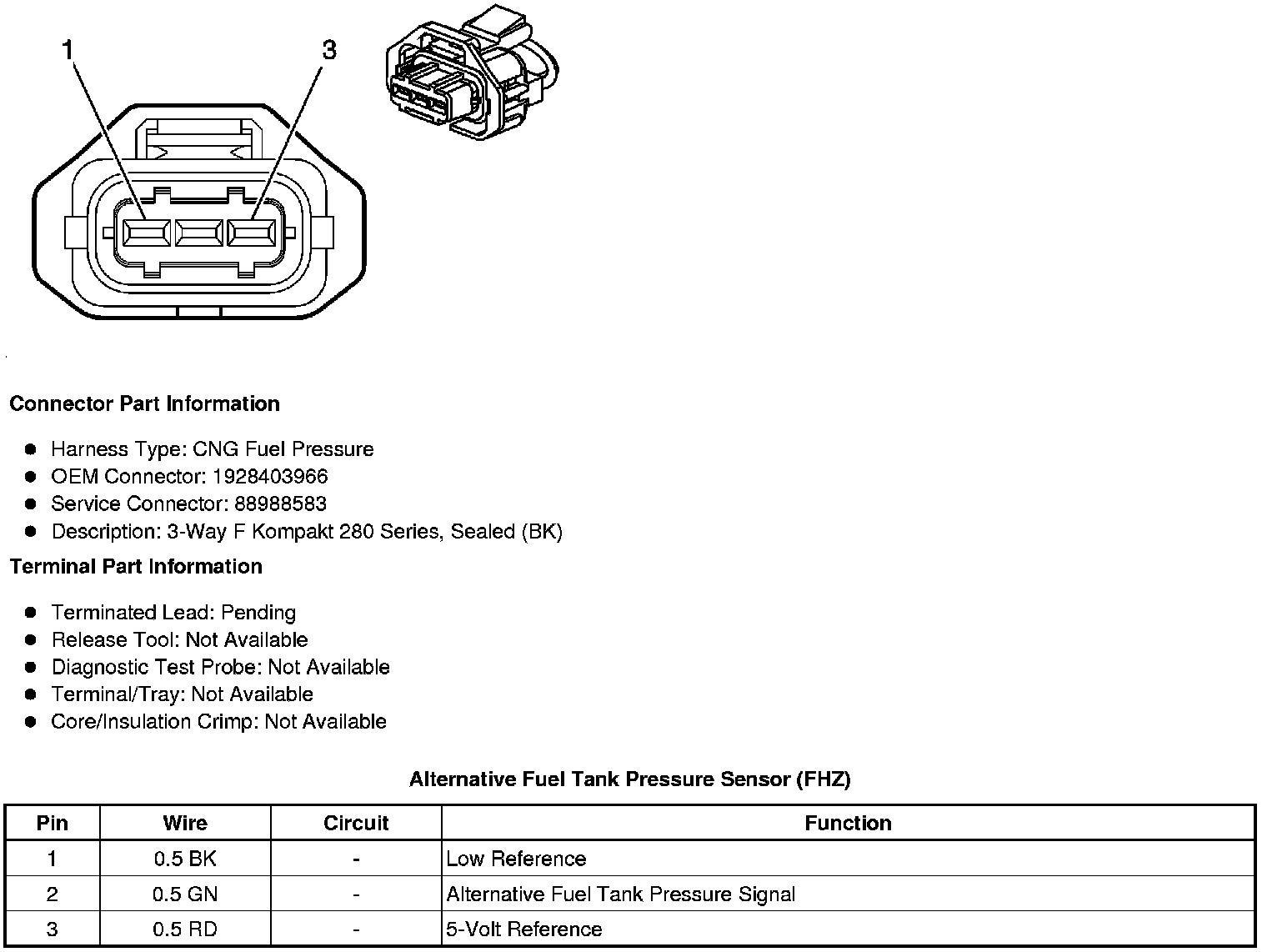

Component Connector End Views

Alternative Fuel Tank Pressure Sensor (FHZ)
